B59L Front Impact Sensor - Left
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

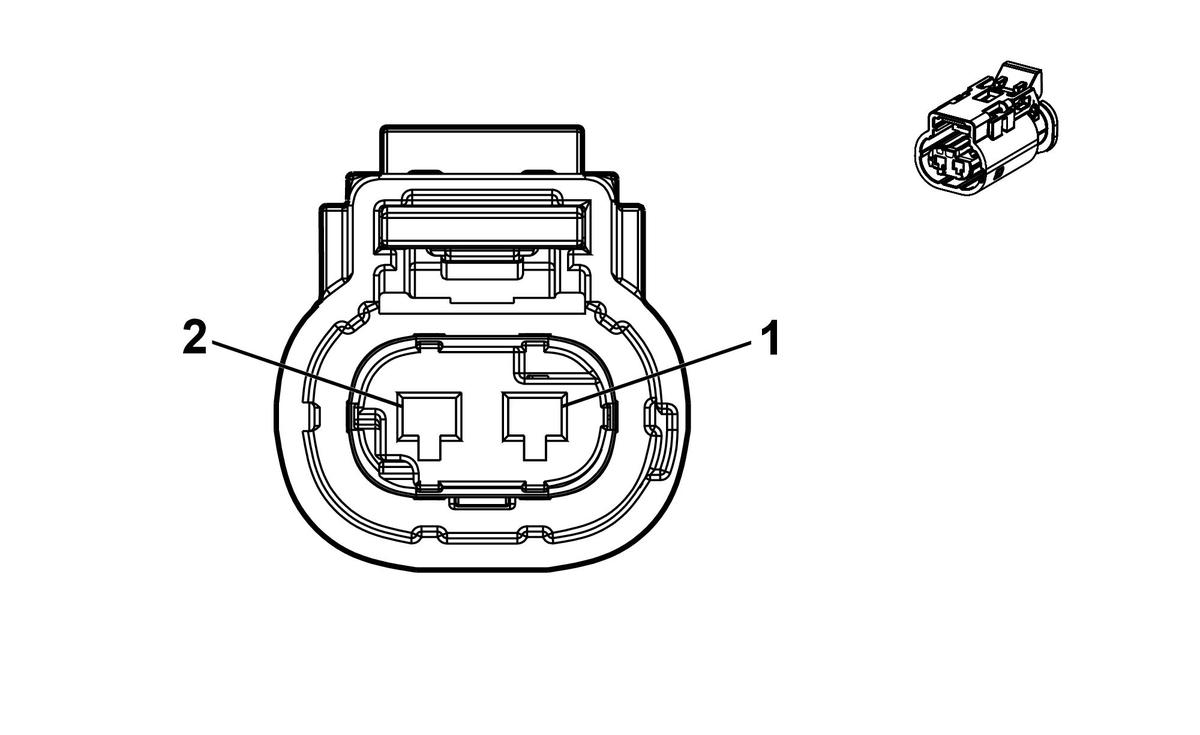

Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 35536107
- Service Connector: 85611419
- Description: 2-Way F 1.2 MLK Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/YE |
354 |
Left Front Impact Discriminating Sensor Signal |
I |
- |
| 2 |
0.5 |
BK/OG |
5045 |
Left Front Impact Discriminating Sensor Low Reference |
I |
- |
