B1 A/C Refrigerant Pressure Sensor
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

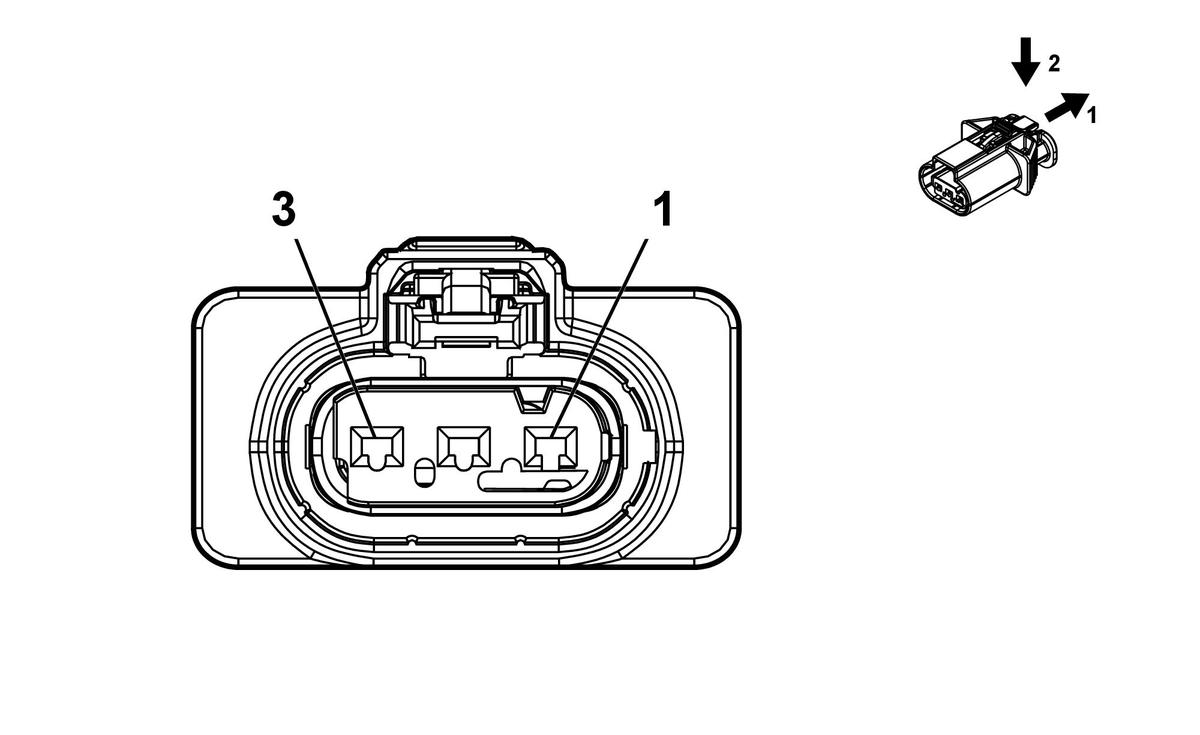

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-16 (L-GN) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 0.5 |
BN/RD BU/RD |
2700 460 |
Air Conditioning Pressure Sensor 5V Reference Engine Control Sensors 5 Volt Reference 1 |
I I |
L5P+ (CJ2/C67) L8T+ (CJ2/C67) |
| 2 | 0.5 | GN | 380 | Air Conditioning Refrigerant Pressure Sensor Signal | I | - |
| 3 | 0.5 0.5 |
BK/BN BK/GY |
5514 626 |
Air Conditioning Refrigerant Pressure Sensor Low Reference Engine Control Vehicle Sensors Low Reference 1 |
I I |
L5P+ (CJ2/C67) L8T+ (CJ2/C67) |
