Leak Inspection Points

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

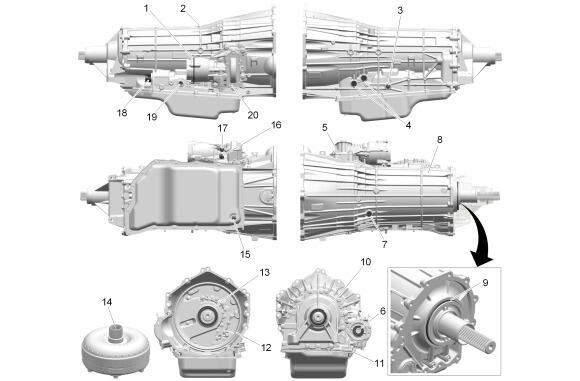

GM5202161Courtesy of GENERAL MOTORS COMPANY
  1. Power Take-Off Housing Cover Seal
  2. Automatic Transmission Vent Pipe
  3. Manual Shift Shaft Seal
  4. Transmission Fluid Cooler Pipe Fitting Seal
  5. Power Take-Off Housing Gasket
  6. Output Shaft Seal
  7. Automatic Transmission Case Hole Plug
  8. Automatic Transmission Case
  9. Automatic Transmission Case Extension Seal
  10. Propeller Shaft Transmission Flange Fluid Seal
  11. Automatic Transmission Fluid Pan Gasket
  12. Automatic Transmission Case Front Cover Seal
  13. Torque Converter Fluid Seal
  14. Torque Converter
  15. Fluid Drain Plug
  16. Automatic Transmission Fluid Pressure Sensor
  17. Shift Solenoid Valve
  18. Automatic Transmission Wiring Harness
  19. Automatic Transmission Case Hole Plug
  20. Power Take-Off Drive Link Cover Gasket
