Transfer Case Bolt Tightening Sequence
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

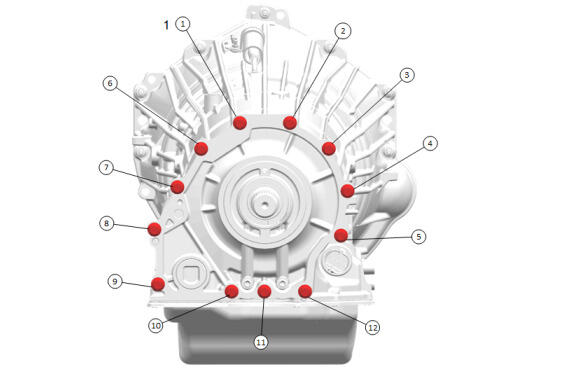

| Transfer Case Bolt Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Transfer Case Bolt [12x] | - | - | 58 N.m (43 lb ft) | Transfer Case Assembly Replacement (with MYD) , or Transfer Case Assembly Replacement (with MGM, MGU) |
