Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.
Accelerator Pedal
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Accelerator Pedal Nut [2x] | - | - | 9 N.m (80 lb in) | Accelerator Pedal Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

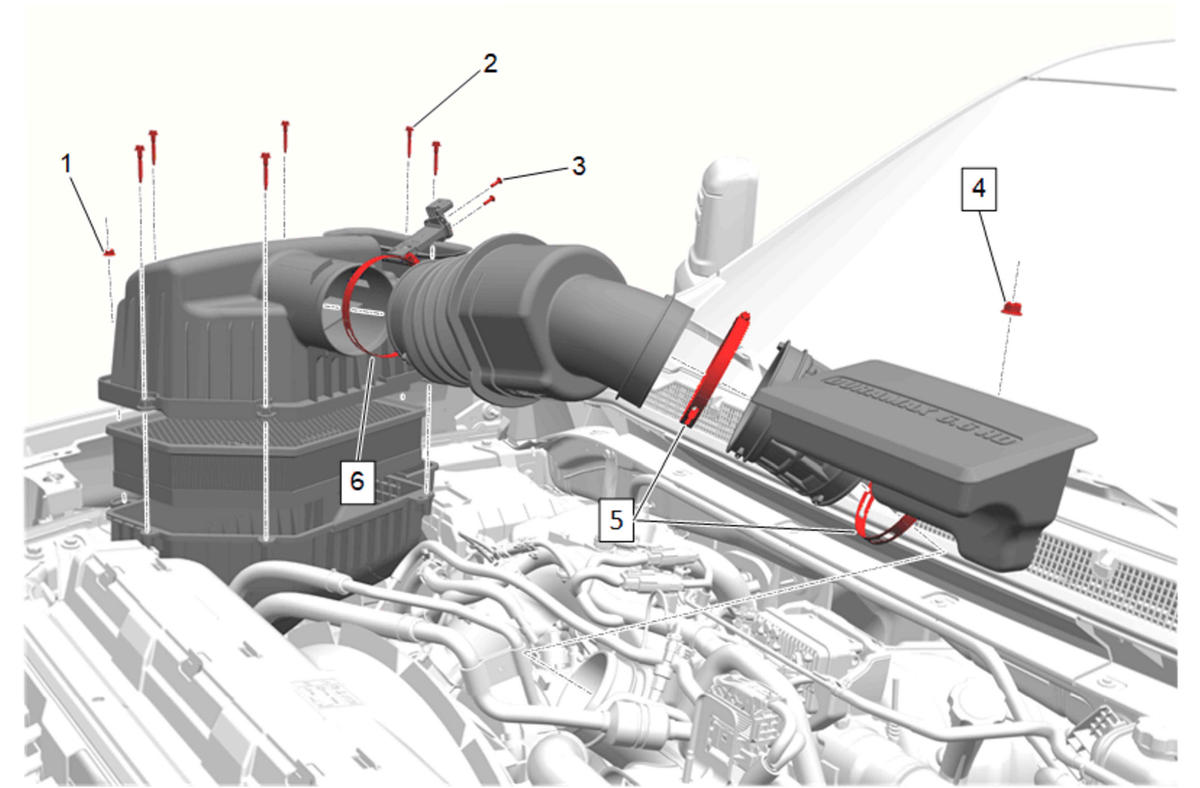

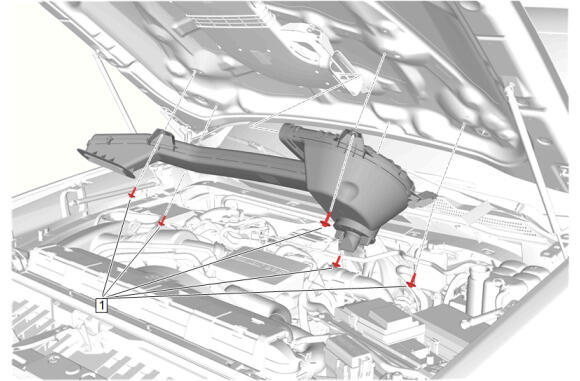

Air Cleaner Assembly with Mass Airflow Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Air Cleaner Nut | - | - | 9 N.m (80 lb in) | Air Cleaner Assembly Replacement |
| 2 | Air Cleaner Housing Cover Bolt [6x] | - | - | 4 N.m (35 lb in) | Air Cleaner Element Replacement |
| 3 | Mass Airflow Sensor Bolt [2x] | - | - | 0.9 N.m (8 lb in) | Mass Airflow Sensor Replacement |
| 4 | Air Cleaner Resonator Nut | - | - | 9 N.m (80 lb in) | Air Cleaner Outlet Resonator Replacement |
| 5 | Turbocharger Outlet Duct Connector Clamp [2x] | - | - | 5 N.m (44 lb in) | Air Cleaner Outlet Front Duct Replacement |
| 6 | Air Cleaner Outlet Front Duct Clamp | - | - | 5 N.m (44 lb in) | Air Cleaner Outlet Resonator Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

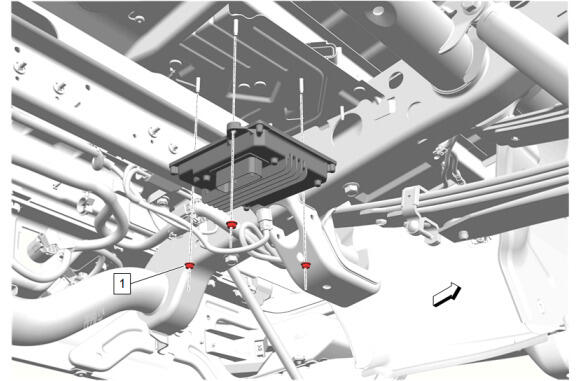

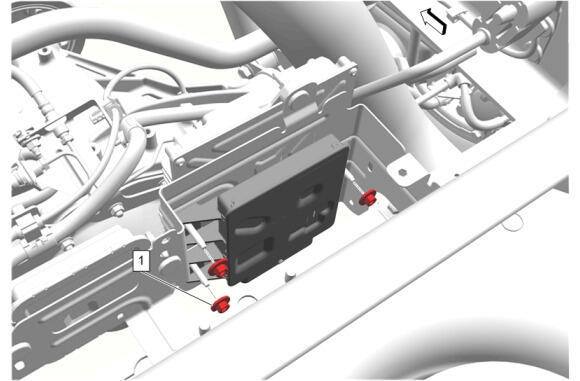

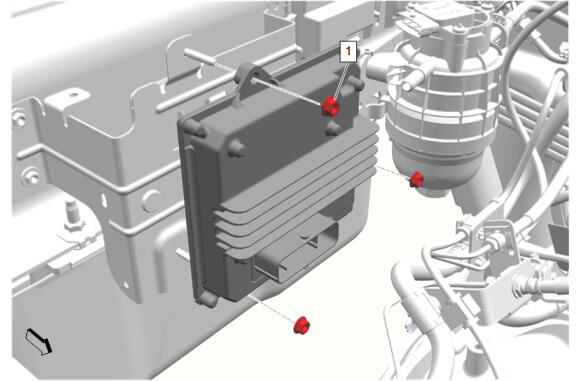

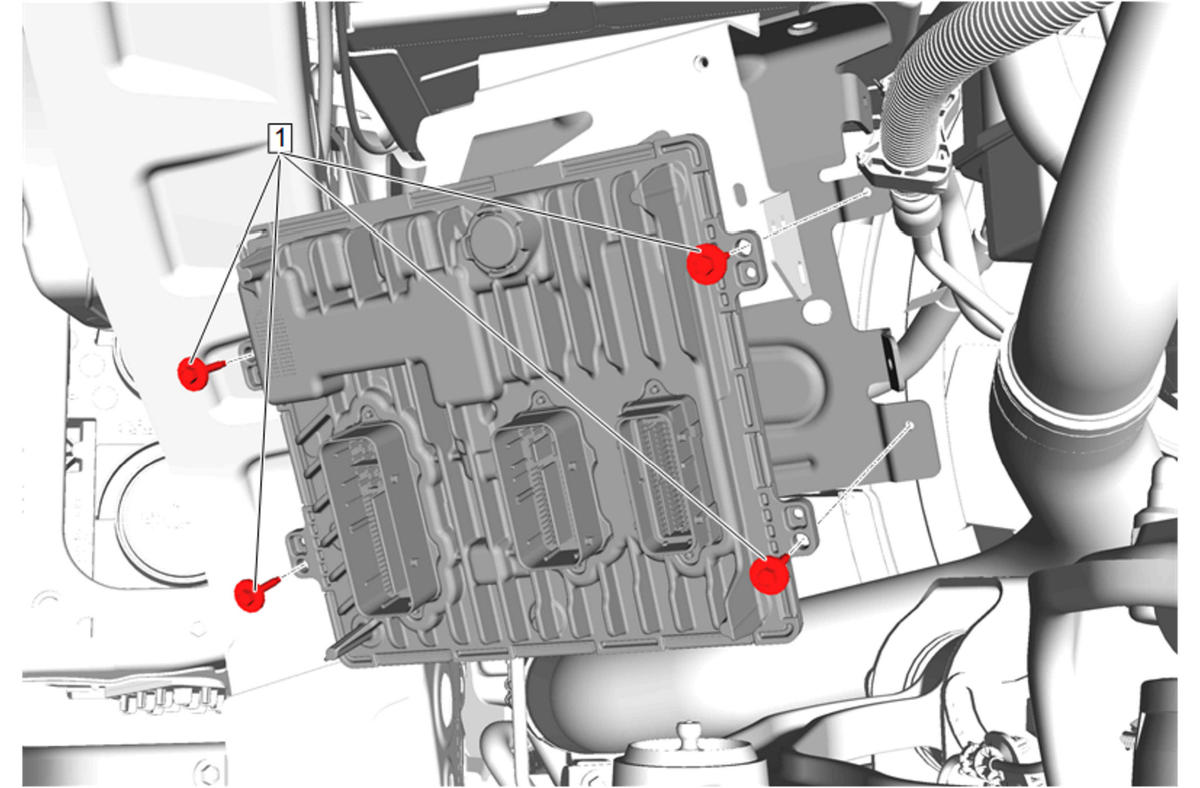

Auxiliary Chassis Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Chassis Control Module Nut [3x] | - | - | 9 N.m (80 lb in) | Auxiliary Chassis Control Module Replacement (Crew, Double, Regular Cab)Auxiliary Chassis Control Module Replacement (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

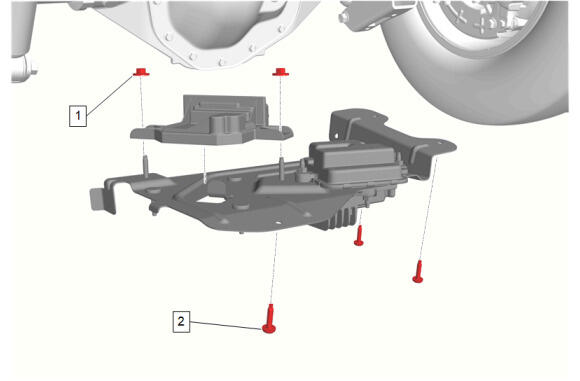

Auxiliary Chassis Control Module - Chassis Cab
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Chassis Control Module Bolt [3x] | - | - | 9 N.m (80 lb in) | Auxiliary Chassis Control Module Replacement (Crew, Double, Regular Cab)Auxiliary Chassis Control Module Replacement (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

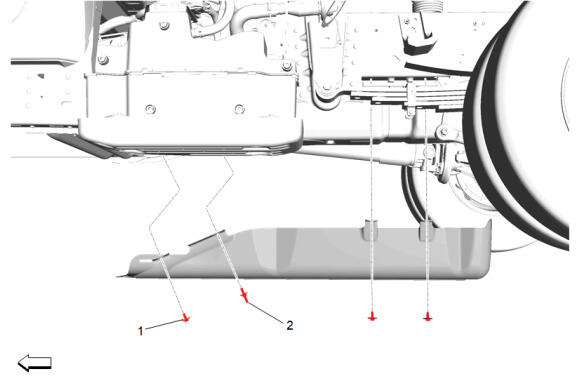

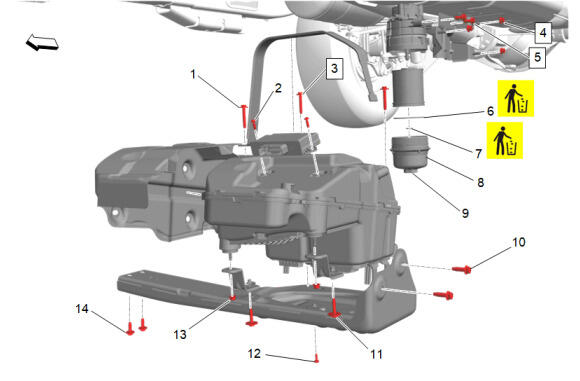

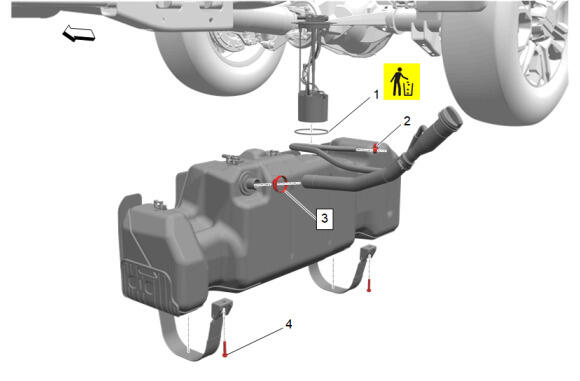

Auxiliary Fuel Tank Components
NOTE:
Callouts in the following chart represent components shown in graphic above.

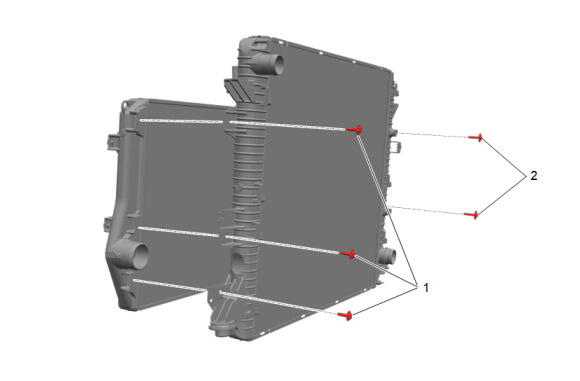

Charge Air Cooler
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Charge Air Cooler Bolt [3x] | - | - | 22 N.m (16 lb ft) | Charge Air Cooler Replacement |
| 2 | Charge Air Cooler Bolt [2x] | - | - | 22 N.m (16 lb ft) | Charge Air Cooler Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

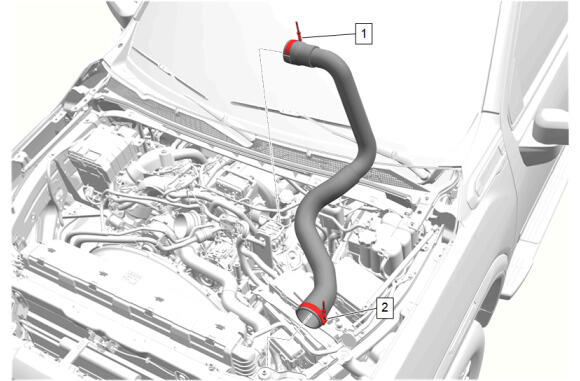

Charge Air Cooler Inlet Air Hose
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Charge Air Cooler Coolant Hose Clamp | - | - | 8.5 N.m (75 lb in) | Charge Air Cooler Inlet Air Hose Replacement |
| 2 | Charge Air Cooler Coolant Hose Clamp | - | - | 8.5 N.m (75 lb in) | Charge Air Cooler Inlet Air Hose Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

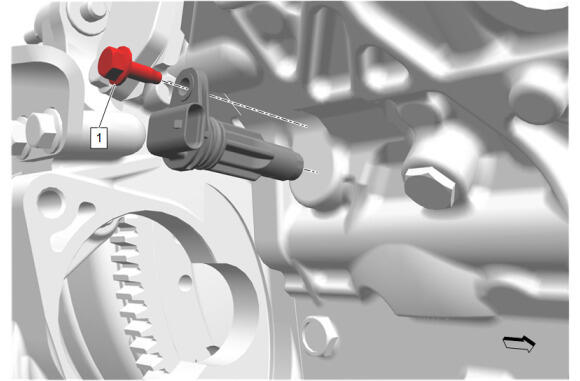

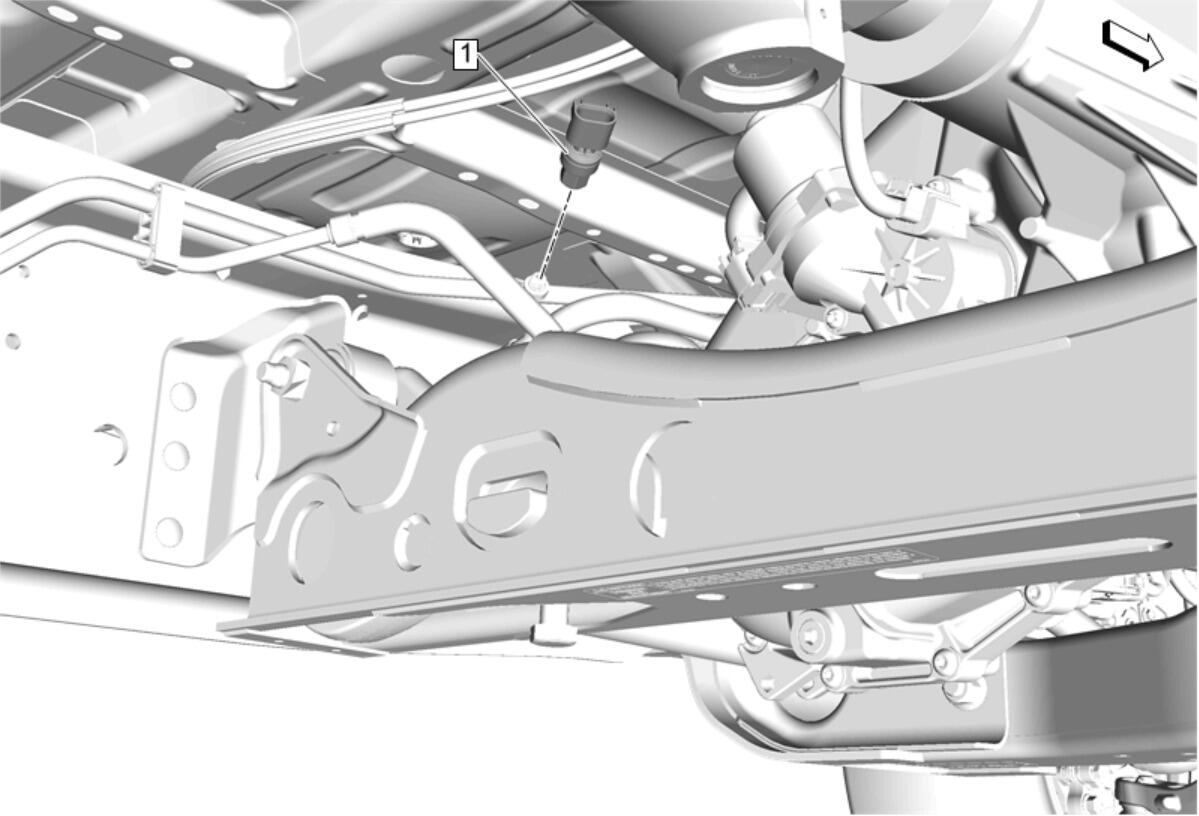

Crankshaft Position Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Crankshaft Position Sensor Bolt | - | - | 10 N.m (89 lb in) | Crankshaft Position Sensor Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

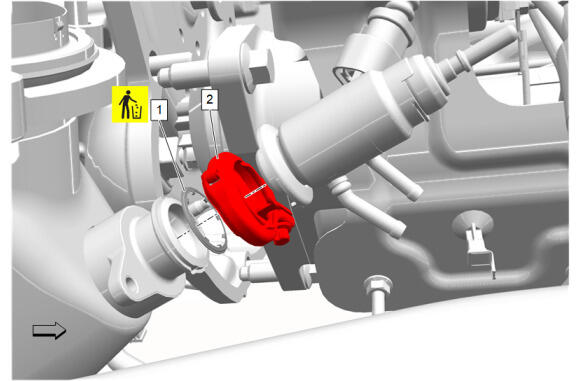

Emission Reduction Fluid Injector
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Emission Reduction Fluid Injector Clamp | - | - | 8 N.m (71 lb in) | Reductant Fluid Injector Replacement |
| 2 | Exhaust System Front Gasket | Yes | - | - | Reductant Fluid Injector Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

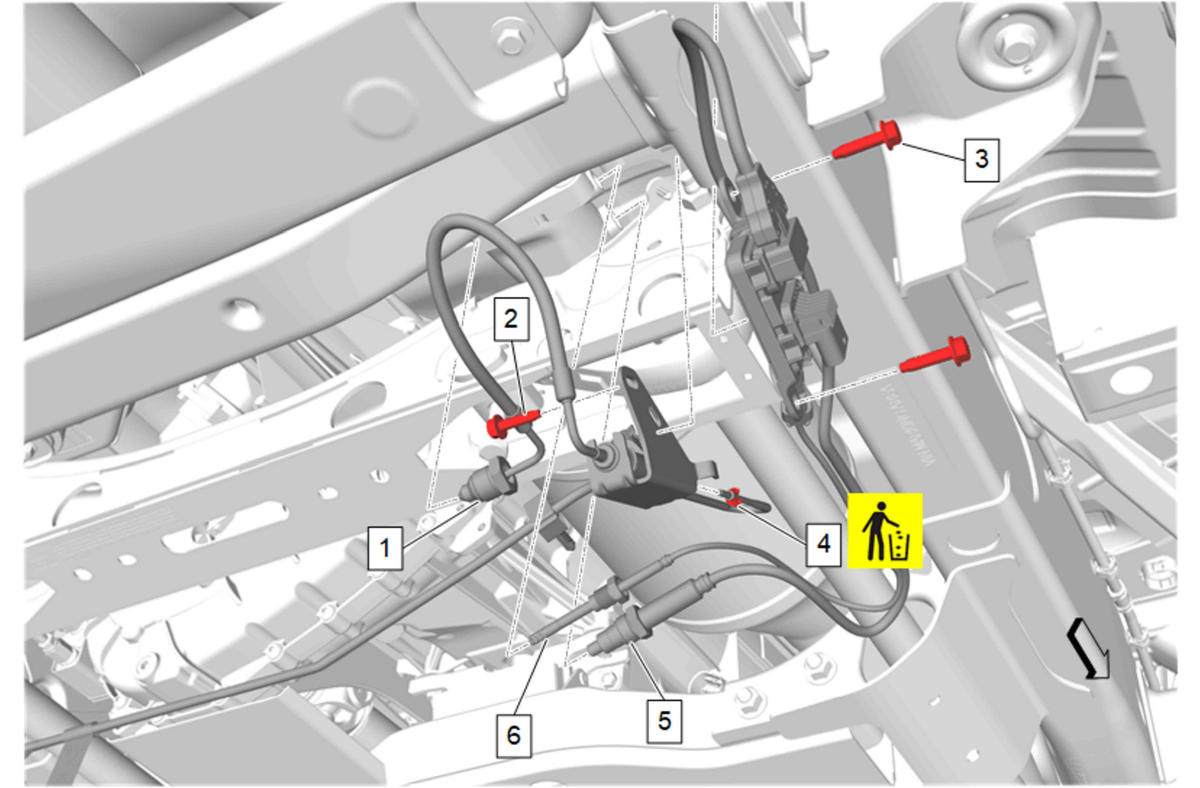

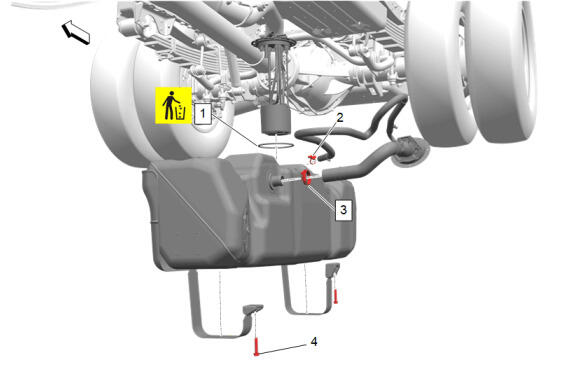

Emission Reduction Fluid Tank and Fuel Filter Components
NOTE:
Callouts in the following chart represent components shown in graphic above.

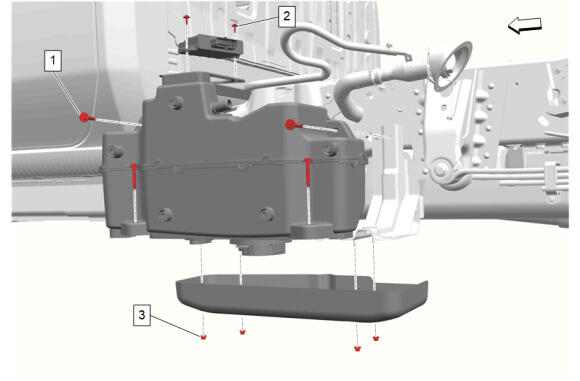

Emission Reduction Fluid Tank Components - Chassis Cab
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Emission Reduction Fluid Tank Bolt [4x] | - | - | 22 N.m (16 lb ft) | Emission Reduction Fluid Tank Replacement (Chassis Cab)Emission Reduction Fluid Tank Replacement (Crew, Double, Regular Cab) |
| 2 | Emission Reduction Fluid Controller Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Reductant Control Module Replacement (Chassis Cab)Reductant Control Module Replacement (Crew, Double, Regular Cab) |
| 3 | Emission Reduction Fluid Tank Shield Nut [4x] | - | - | 22 N.m (16 lb ft) | Emission Reduction Fluid Tank Shield Replacement (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

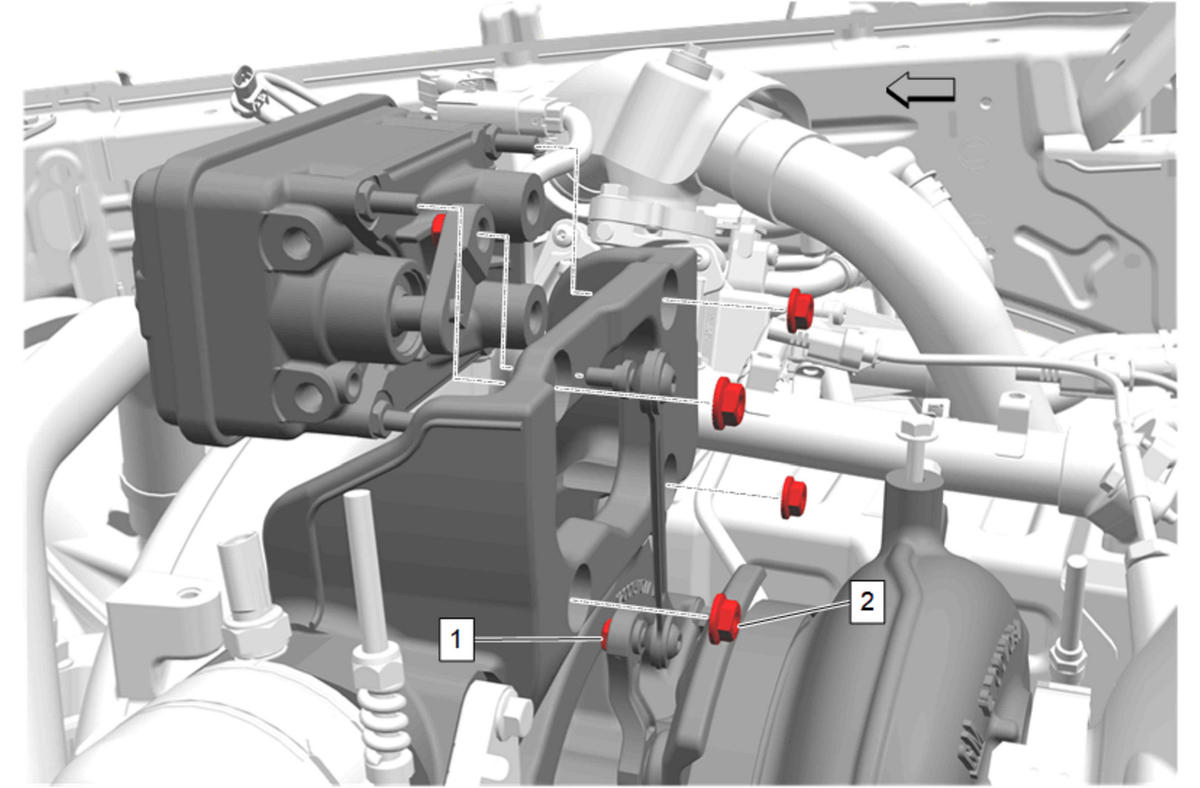

Engine Control Module Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Engine Control Module Bracket Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Engine Control Module Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

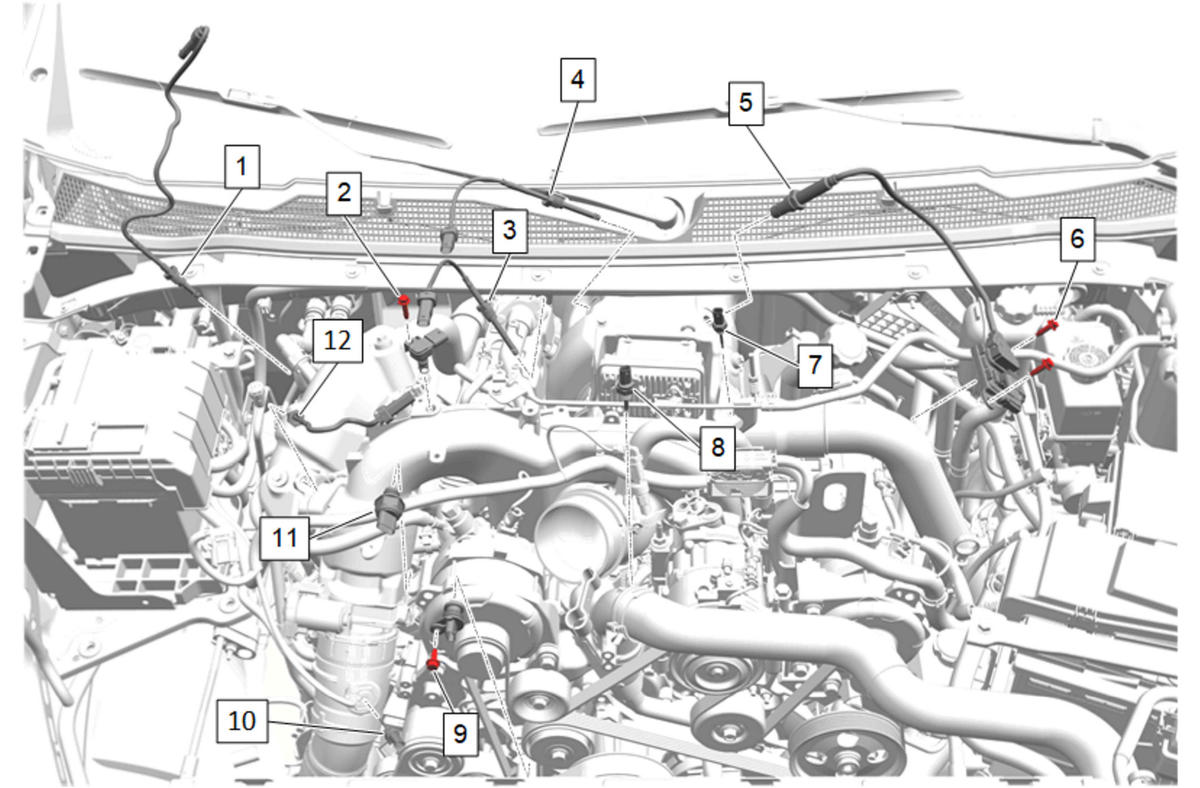

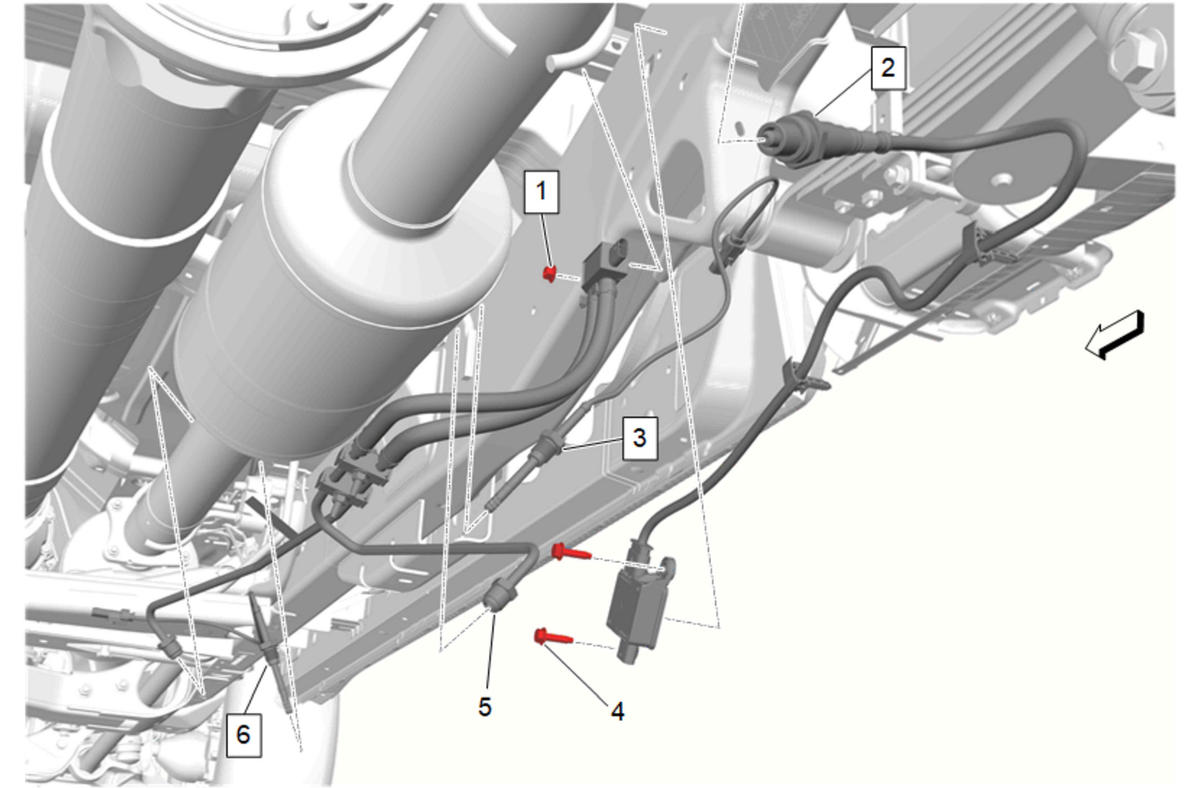

Engine Sensors
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||

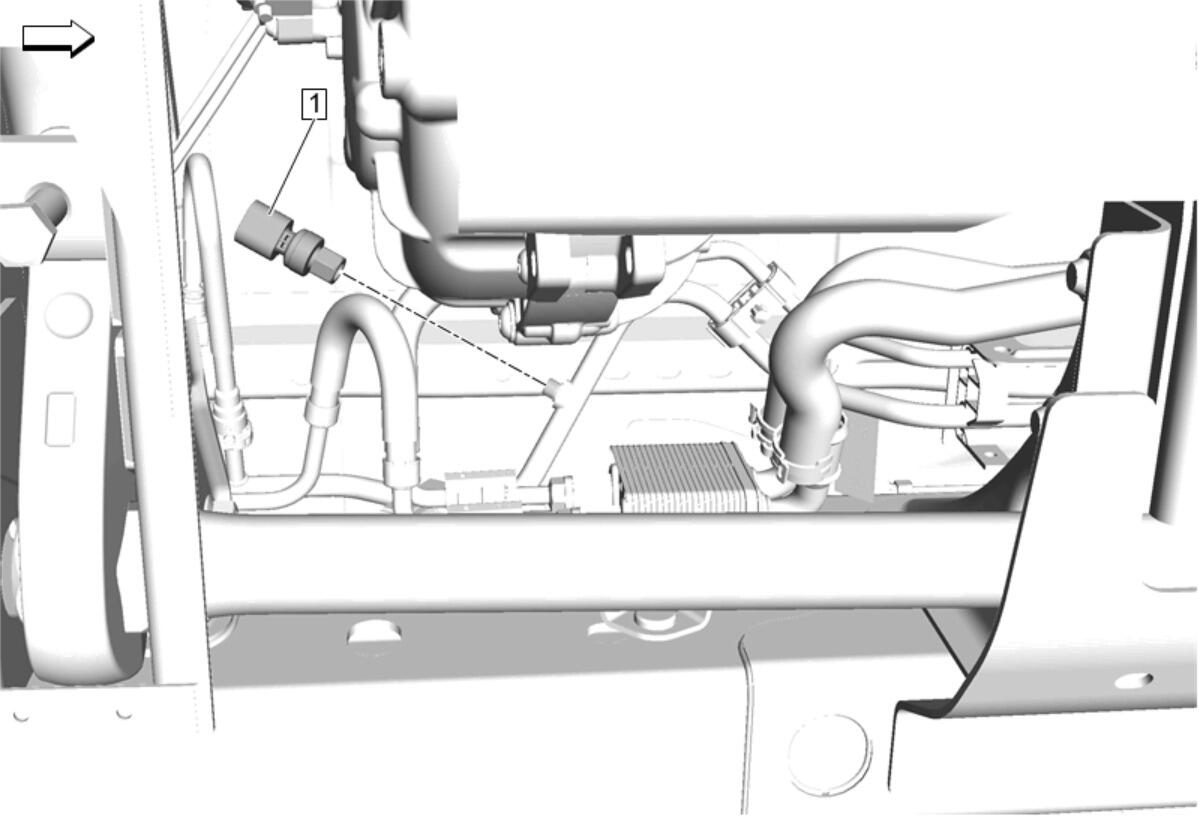

| 1 | Exhaust Gas Recirculation Cooler Temperature Sensor | - | - | 45 N.m (33 lb ft) | Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 1 |
| 2 | Intake Air Pressure and Temperature Sensor Bolt [2x] | - | - | 10 N.m (89 lb in) | Intake Air Pressure and Temperature Sensor Replacement |
| 3 | Exhaust Temperature Sensor | - | - | 45 N.m (33 lb ft) | Exhaust Temperature Sensor Replacement - Position 2 |
| 4 | Exhaust Temperature Sensor | - | - | 45 N.m (33 lb ft) | Exhaust Temperature Sensor Replacement - Position 1 |
| 5 | Nitrogen Oxides Sensor | - | - | 45 N.m (33 lb ft) | Nitrogen Oxides Sensor Replacement - Position 1 |
| 6 | Nitrogen Oxides Sensor Control Module Bracket Bolt [2x] | - | - | 9 N.m (80 lb in) | Nitrogen Oxides Sensor Replacement - Position 1 |
| 7 | Charge Air Cooler Air Temperature Sensor | - | - | 19 N.m (14 lb ft) | Charge Air Cooler Air Temperature Sensor Replacement - Compressor Air Intake Turbocharger |
| 8 | Engine Coolant Temperature Sensor | - | - | 33 N.m (24 lb ft) | Engine Coolant Temperature Sensor Replacement |
| 9 | Camshaft Position Sensor Bolt | - | - | 10 N.m (89 lb in) | Camshaft Position Sensor Replacement |
| 10 | Charge Air Cooler Air Temperature Sensor | - | - | 19 N.m (14 lb ft) | Charge Air Cooler Air Temperature Sensor Replacement - Charge Air Cooler Outlet Air Hose |
| 11 | Fuel Pressure Sensor | - | - | First Pass:20 N.m (15 lb ft) | Fuel Pressure Sensor Replacement - Fuel Injection Fuel Rail |
| Final Pass:15 degrees | |||||
| 12 | Exhaust Gas Recirculation Cooler Temperature Sensor | - | - | 45 N.m (33 lb ft) | Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 2 |
NOTE:
Callouts in the following chart represent components shown in graphic above.

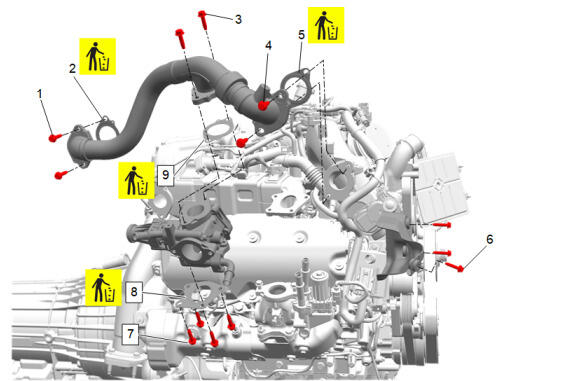

Exhaust Gas Recirculation Components
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Exhaust Gas Recirculation Pipe Bolt [2x] | - | Yes | 36 N.m (27 lb ft) | Exhaust Gas Recirculation Pipe Replacement - Upper Intake Manifold |
| 2 | Exhaust Gas Recirculation Pipe Gasket | Yes | - | - | Exhaust Gas Recirculation Pipe Replacement - Upper Intake Manifold |
| 3 | Exhaust Gas Recirculation Pipe Bolt [2x] | - | Yes | 36 N.m (27 lb ft) | Exhaust Gas Recirculation Pipe Replacement - Upper Intake Manifold |
| 4 | Exhaust Gas Recirculation Pipe Bolt [2x] | - | Yes | 36 N.m (27 lb ft) | Exhaust Gas Recirculation Pipe Replacement - Upper Intake Manifold |
| 5 | Exhaust Gas Recirculation Pipe Gasket | Yes | - | - | Exhaust Gas Recirculation Pipe Replacement - Upper Intake Manifold |
| 6 | Exhaust Gas Recirculation Valve Pipe Heat Shield Bolt [3x] | - | - | 10 N.m (89 lb in) | Exhaust Gas Recirculation Pipe Shield Replacement - Exhaust Gas Recirculation Cooler |
| 7 | Exhaust Gas Recirculation Cooler Bypass Valve Bolt [4x] | - | - | 25 N.m (18 lb ft) | Exhaust Gas Recirculation Cooler Bypass Valve Replacement |
| 8 | Exhaust Gas Recirculation Valve Cooler Bypass Valve Gasket | Yes | - | - | Exhaust Gas Recirculation Cooler Bypass Valve Replacement |
| 9 | Exhaust Gas Recirculation Pipe Gasket | Yes | - | - | Exhaust Gas Recirculation Pipe Replacement - Upper Intake Manifold |
NOTE:
Callouts in the following chart represent components shown in graphic above.

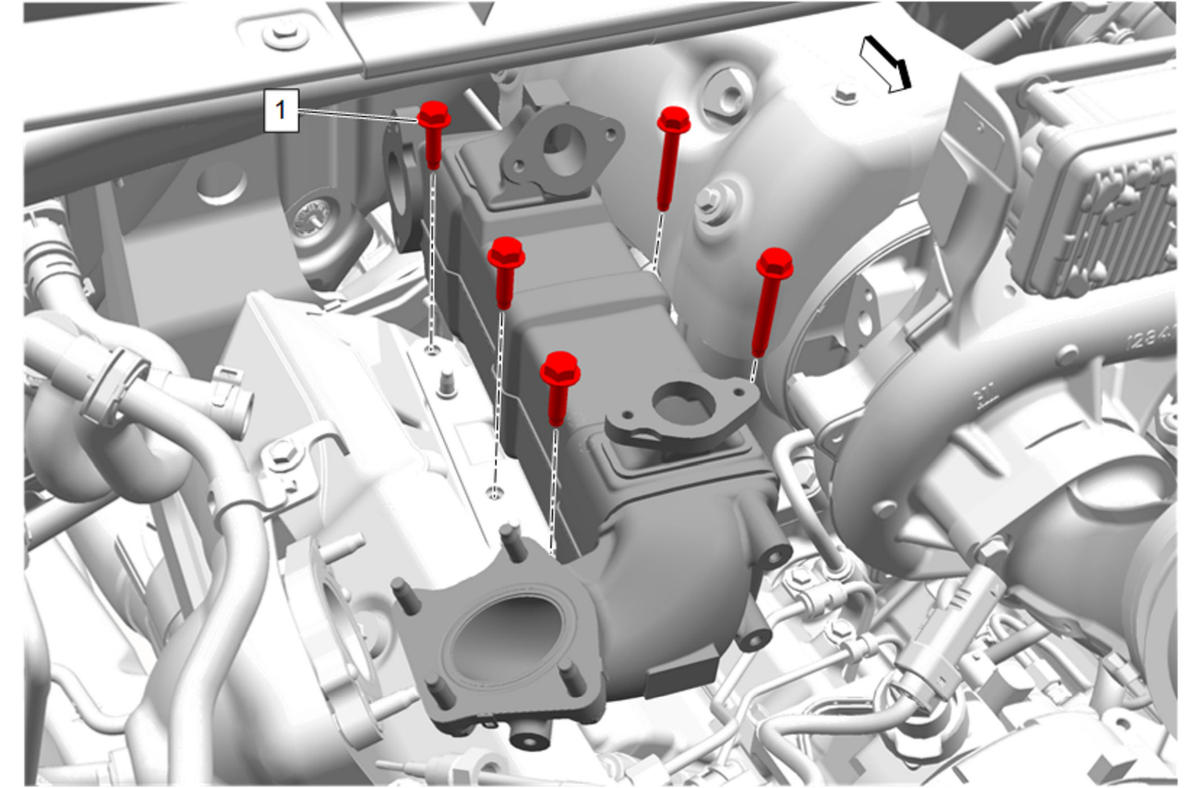

Exhaust Gas Recirculation Cooler
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Exhaust Gas Recirculation Cooler Bolt [5x] | - | - | 25 N.m (18 lb ft) | Exhaust Gas Recirculation Cooler Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Exhaust Gas Recirculation Pipe - Stud Mount at Exhaust Gas Recirculation Valve
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||

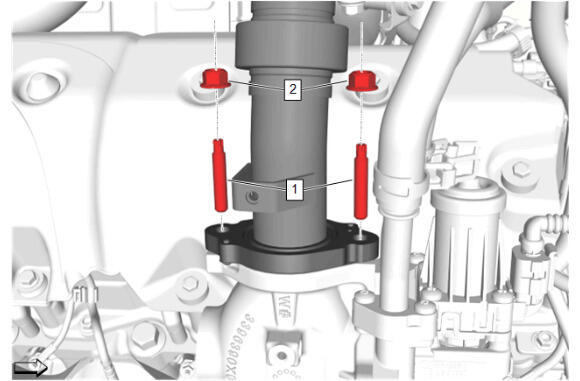

| 1 | Exhaust Gas Recirculation Valve Stud [2x] | - | - | 9 N.m (80 lb in) | Exhaust Gas Recirculation Pipe Replacement - Exhaust Gas Recirculation Valve Cooler Bypass Valve (Bolt Mount at Exhaust Gas Recirculation Valve)Exhaust Gas Recirculation Pipe Replacement - Exhaust Gas Recirculation Valve Cooler Bypass Valve (Stud Mount at Exhaust Gas Recirculation Valve) |
| 2 | Exhaust Gas Recirculation Valve Nut [2x] | - | - | 25 N.m (18 lb ft) | Exhaust Gas Recirculation Pipe Replacement - Exhaust Gas Recirculation Valve Cooler Bypass Valve (Bolt Mount at Exhaust Gas Recirculation Valve)Exhaust Gas Recirculation Pipe Replacement - Exhaust Gas Recirculation Valve Cooler Bypass Valve (Stud Mount at Exhaust Gas Recirculation Valve) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

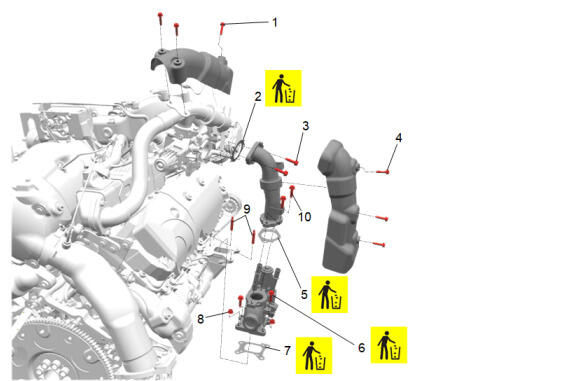

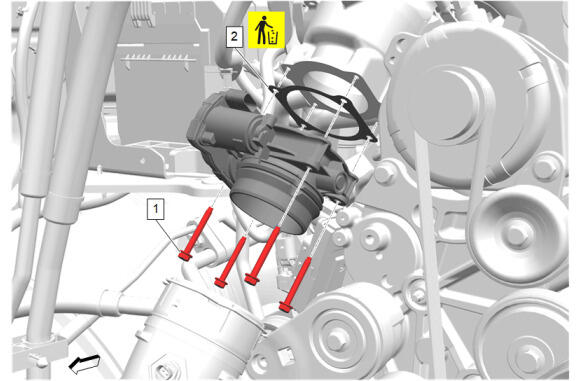

Exhaust Gas Recirculation Valve and Components
NOTE:
Callouts in the following chart represent components shown in graphic above.

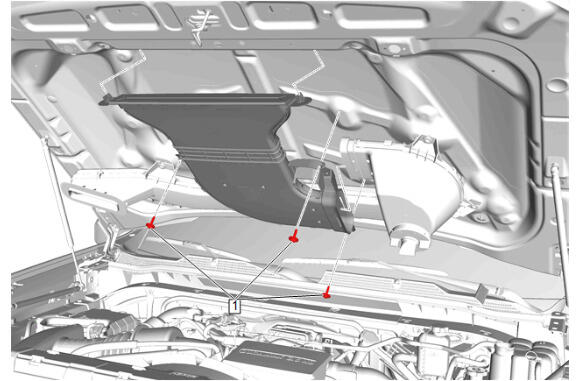

Front Intake Air Duct
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Intake Air Duct Bracket Bolt [3x] | - | - | 9 N.m (80 lb in) | Front Intake Air Duct Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Front Intake Air Duct Adapter
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Intake Air Duct Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Intake Air Duct Adapter Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

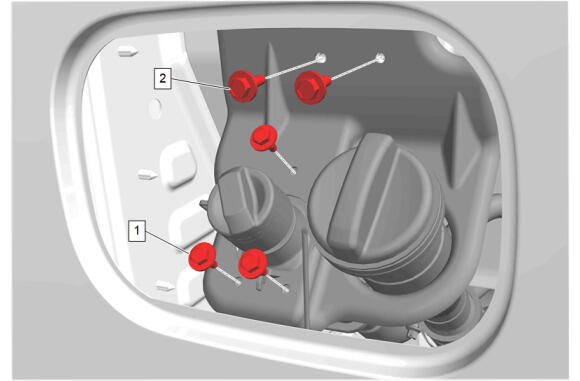

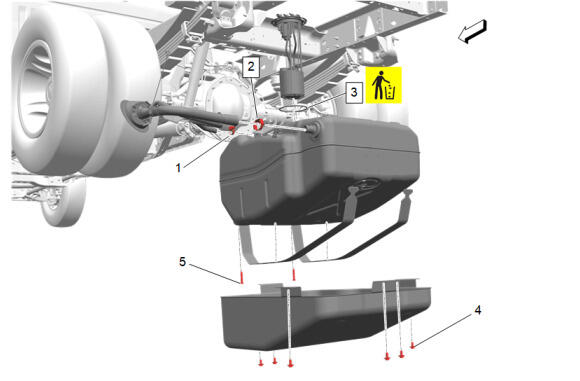

Fuel and Emission Fluid Tank Filler Pipe Housing
NOTE:
Callouts in the following chart represent components shown in graphic above.

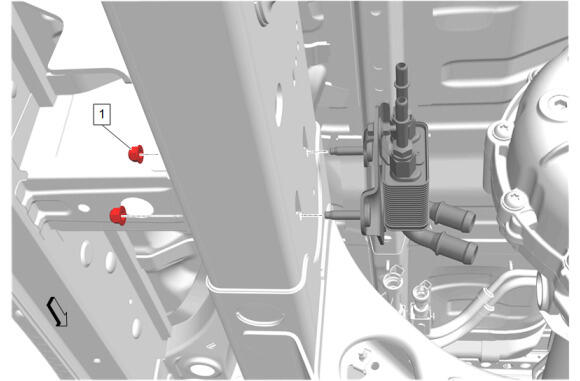

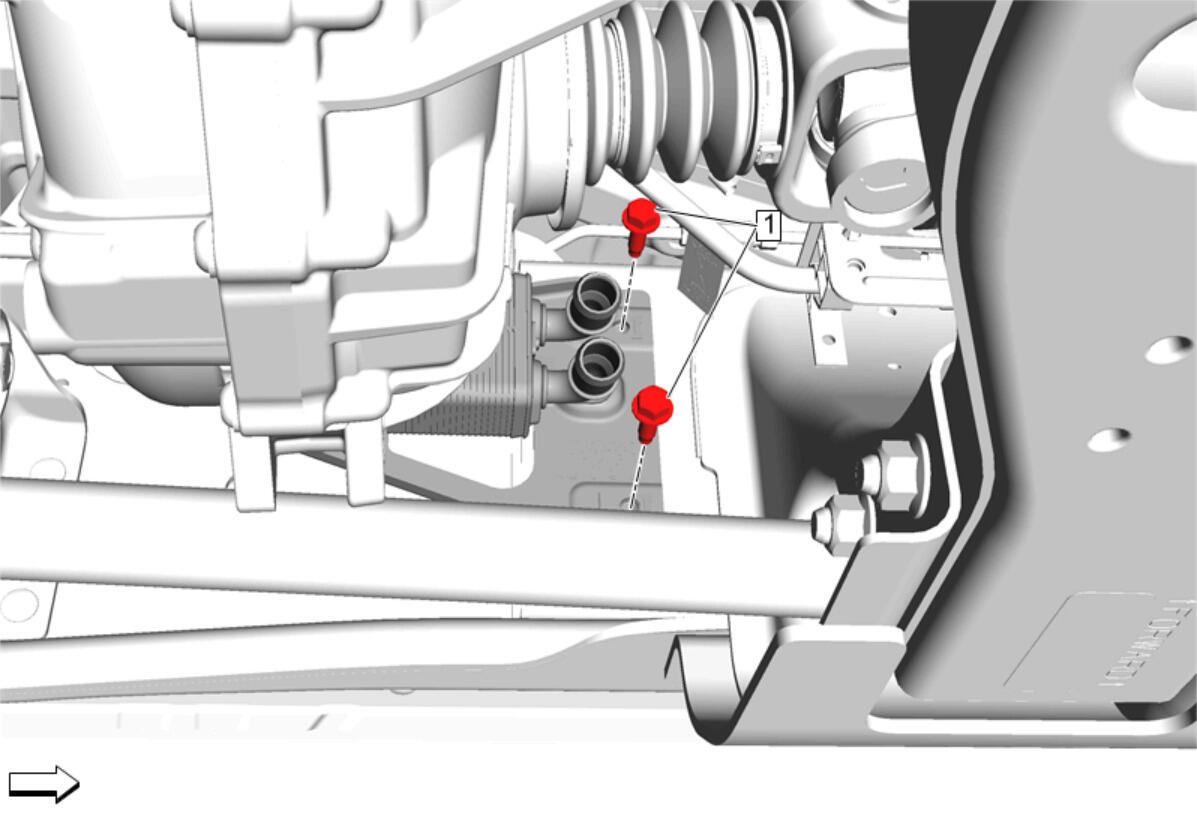

Fuel Cooler
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Cooler Support Bracket Nut [2x] | - | - | 22 N.m (16 lb ft) | Fuel Cooler Replacement (Crew, Double, Regular Cab)Fuel Cooler Replacement (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Cooler - Chassis Cab
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Cooler Bolt [2x] | - | - | 22 N.m (16 lb ft) | Fuel Cooler Replacement (Crew, Double, Regular Cab)Fuel Cooler Replacement (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Cooler Coolant Cooler Inlet Hose
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Heater Inlet and Outlet Bolt | - | - | 9 N.m (80 lb in) | Fuel Cooler Coolant Cooler Inlet Hose Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

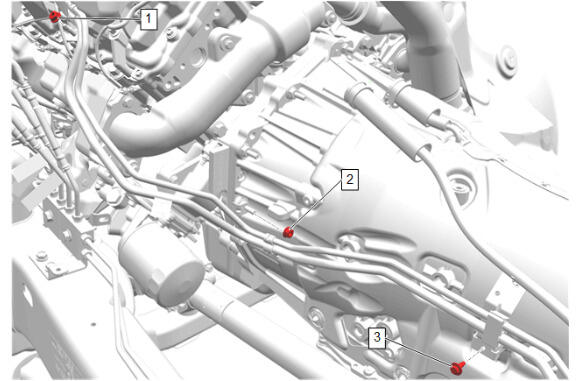

Fuel Feed and Return Front Pipe Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Feed and Return Front Pipe Clip Bracket Nut | - | - | 22 N.m (16 lb ft) | Fuel Return Front Pipe Replacement (Crew, Double, Regular, Chassis Cab)Fuel Return Front Pipe Replacement (Chassis Cab, Front) |
| 2 | Fuel Feed and Return Front Hose Bracket Nut | - | - | 22 N.m (16 lb ft) | Fuel Return Front Pipe Replacement (Crew, Double, Regular, Chassis Cab)Fuel Return Front Pipe Replacement (Chassis Cab, Front) |
| 3 | Fuel Feed and Return Front Hose Bracket Bolt | - | - | 9 N.m (80 lb in) | Transmission Replacement (4WD, L5P, NQH)Transmission Replacement (4WD, L5P, NQF)Transmission Replacement (2WD, L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

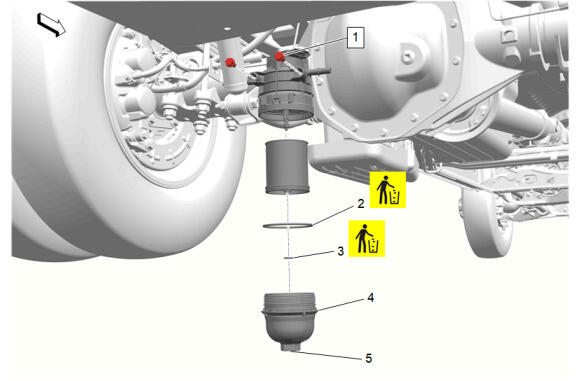

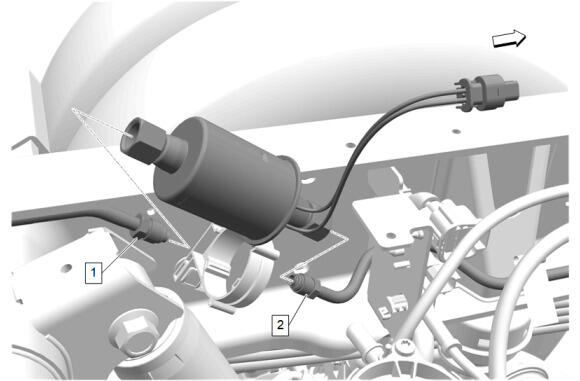

Fuel Filter Components - Chassis Cab
NOTE:
Callouts in the following chart represent components shown in graphic above.

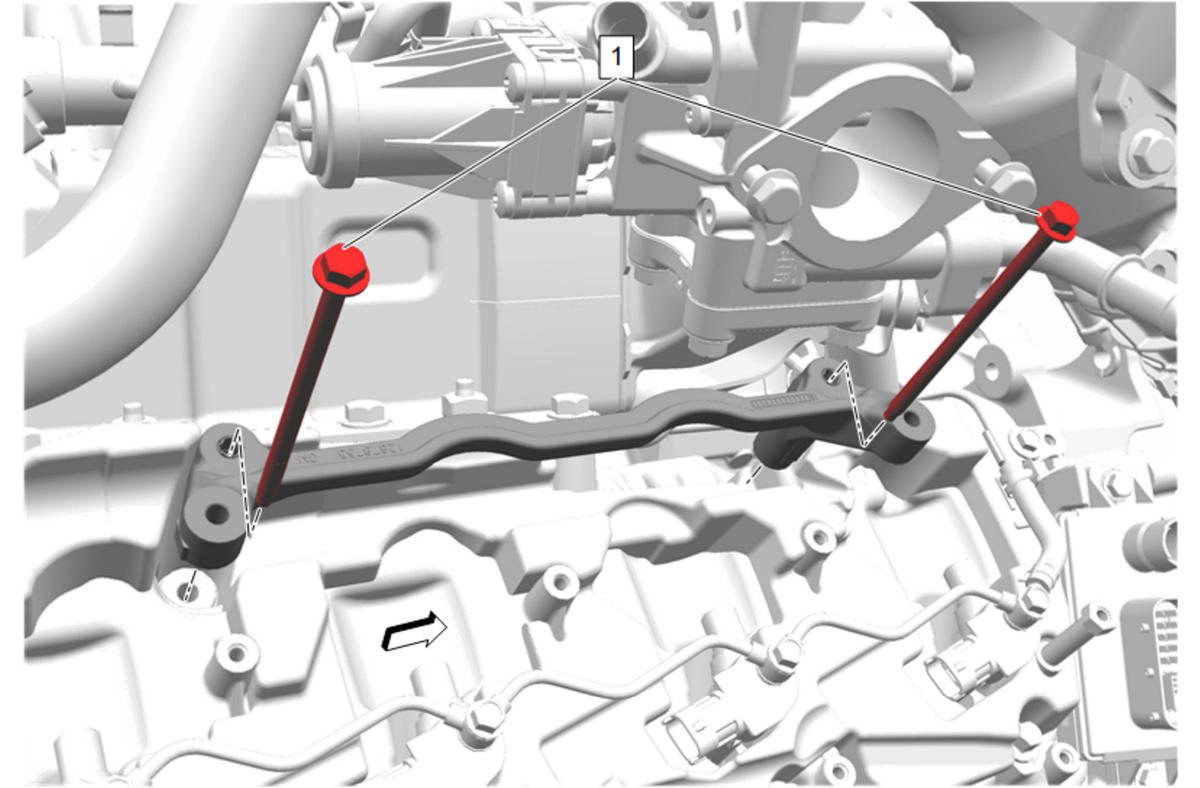

Fuel Injection Fuel Rail Bracket Bank 1
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Injection Fuel Rail Bracket Bolt [2x] | - | - | 10 N.m (89 lb in) | Fuel Injector Deadener Replacement - Bank 1 Lower Insulator |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Injection Fuel Rail Bracket Bank 2
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Injection Fuel Rail Bracket Bolt [2x] | - | - | 10 N.m (89 lb in) | Fuel Injector Deadener Replacement - Bank 2 Lower Insulator |
NOTE:
Callouts in the following chart represent components shown in graphic above.

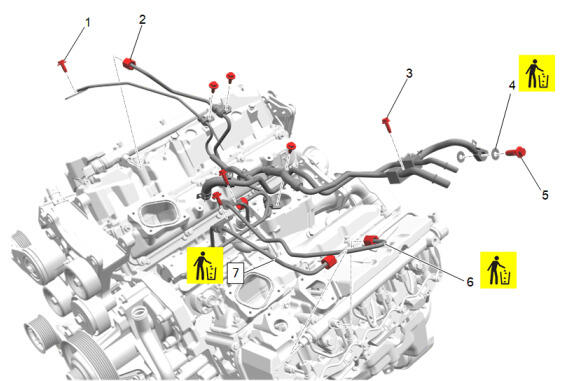

Fuel Injection Fuel Return Pipes and Fuel High Pressure Pipes
NOTE:
Callouts in the following chart represent components shown in graphic above.

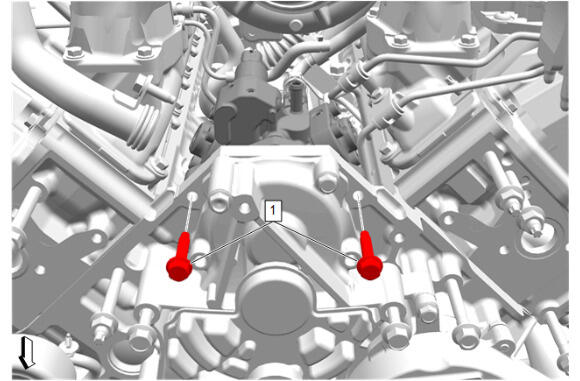

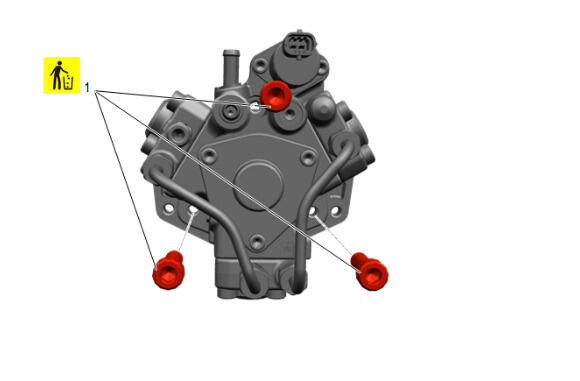

Fuel Injection Pump
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Injection Pump Bolt [2x] | - | - | 21 N.m (15 lb ft) | Fuel Injection Pump Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Injection Pump Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Injection Pump Bolt [3x] | Yes | - | Fuel Injection Pump Bolt Sequence | Fuel Injection Pump Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

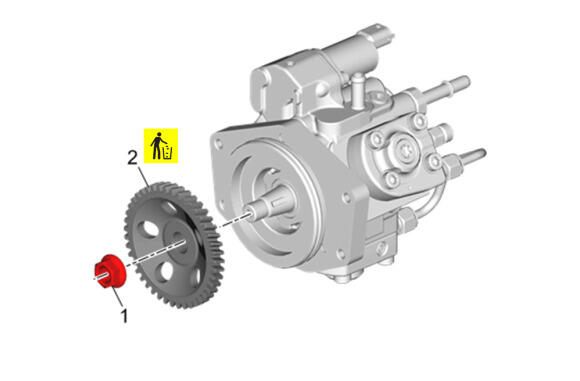

Fuel Injection Pump Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Injection Pump Nut | - | - | 65 N.m (48 lb ft) | Fuel Injection Pump Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

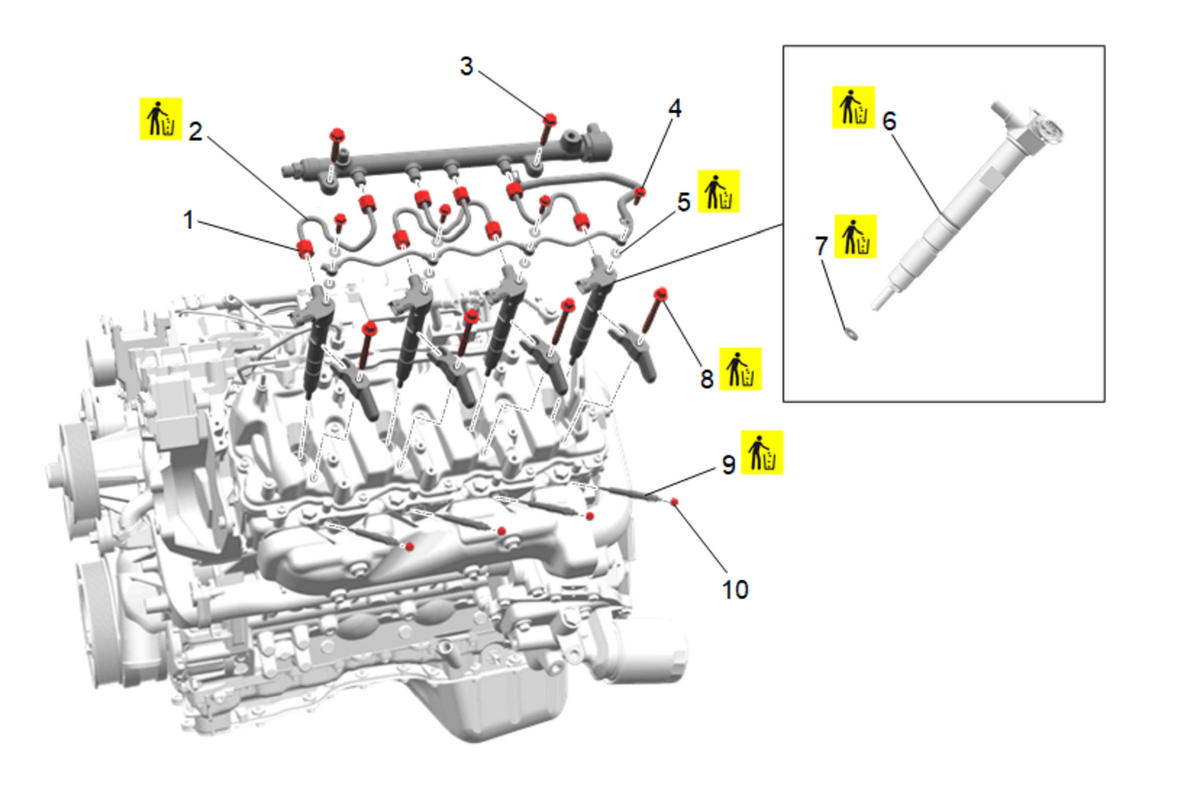

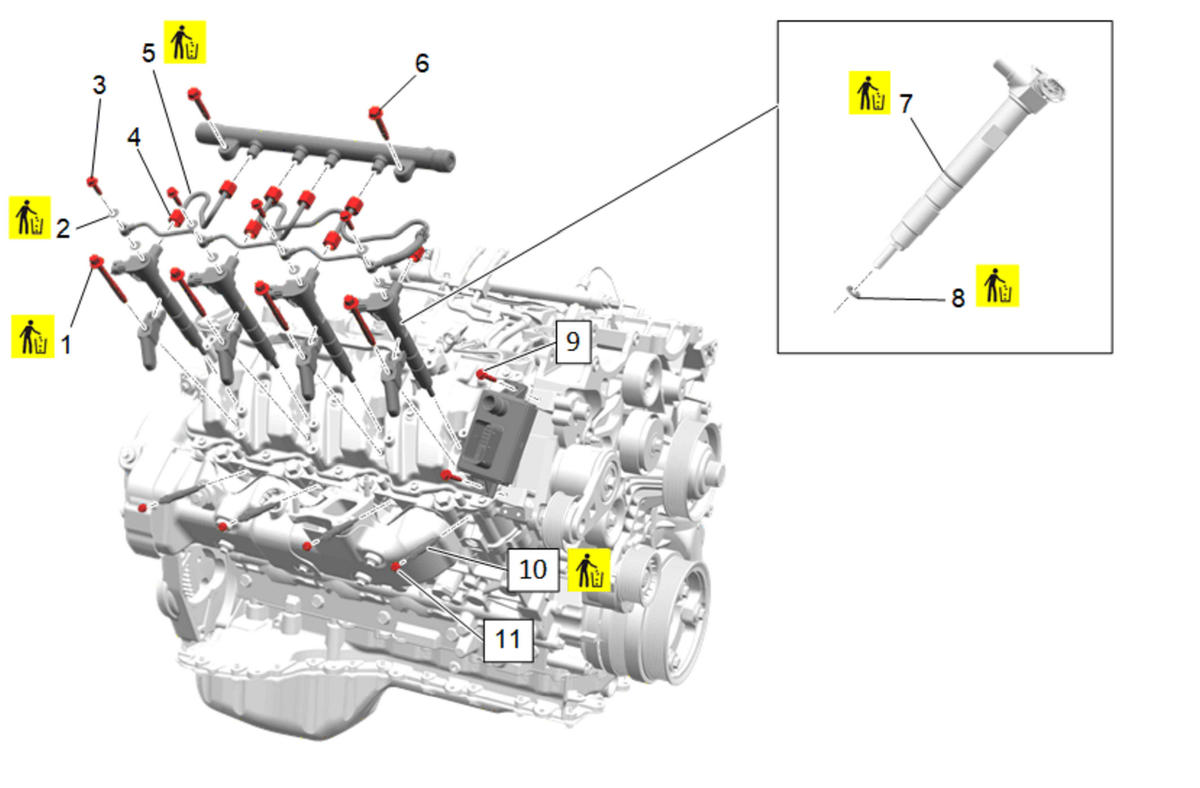

Fuel Injector and Glow Plug Components Bank 1
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Injector Bracket Bolt [4x] | Yes | - | First Pass:10 N.m (89 lb in) | Fuel Injector Replacement - Bank 1, Cylinder 3 Fuel Injector Replacement - Bank 1, Cylinder 1, 5, 7 |
| Final Pass:70 degrees | |||||
| 2 | Camshaft Cover Washer [8x] | Yes | - | - | Fuel Injection Fuel Return Pipe Replacement - Right Side |
| 3 | Fuel Return Pipe Clip Bolt [4x] | - | - | 10 N.m (89 lb in) | Fuel Injection Fuel Return Pipe Replacement - Right Side |
| 4 | High Pressure Fuel Pipe Nut [8x] |
- | - | 32.5 N.m (24 lb ft) | Fuel Injection Fuel Feed Pipe Replacement - Right Side |
| 5 | Fuel High Pressure Pipe [4x] | Yes | - | - | Fuel Injection Fuel Feed Pipe Replacement - Right Side |
| 6 | Fuel Injection Fuel Rail Bolt [2x] | - | - | 25 N.m (18 lb ft) | Fuel Injection Fuel Rail Assembly Replacement - Bank 1 |
| 7 | Fuel Injector Seal [4x] | Yes | - | - | Fuel Injector Replacement - Bank 1, Cylinder 3 Fuel Injector Replacement - Bank 1, Cylinder 1, 5, 7 |
| 8 | Combustion Fuel Injector Seal [4x] | Yes | - | - | Fuel Injector Replacement - Bank 1, Cylinder 3 Fuel Injector Replacement - Bank 1, Cylinder 1, 5, 7 |
| 9 | Glow Plug Control Module Bracket Bolt [2x] | - | - | 10 N.m (89 lb in) | Glow Plug Control Module Replacement |
| 10 | Diesel Engine Combustion Air Heater Glow Plug [4x] | Yes | - | 17 N.m (13 lb ft) | Glow Plug Replacement - Bank 1 |
| 11 | Diesel Glow Plug Wiring Harness Nut [4x] | - | - | 2.7 N.m (24 lb in) | Glow Plug Replacement - Bank 1 |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Injector and Glow Plug Components Bank 2
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Pressure Fuel Pipe Nut [8x] |
- | - | 32.5 N.m (24 lb ft) | Fuel Injection Fuel Feed Pipe Replacement - Left Side |
| 2 | Fuel High Pressure Pipe [4x] | Yes | - | - | Fuel Injection Fuel Feed Pipe Replacement - Left Side |
| 3 | Fuel Injection Fuel Rail Bolt [2x] | - | - | 25 N.m (18 lb ft) | Fuel Injection Fuel Rail Assembly Replacement - Bank 2 |
| 4 | Fuel Return Pipe Clip Bolt [4x] | - | - | 10 N.m (89 lb in) | Fuel Injection Fuel Return Pipe Replacement - Left Side |
| 5 | Camshaft Cover Washer [8x] | Yes | - | - | Fuel Injection Fuel Return Pipe Replacement - Left Side |
| 6 | Fuel Injector Seal [4x] | Yes | - | - | Fuel Injector Replacement - Bank 2 |
| 7 | Combustion Fuel Injector Seal [4x] | Yes | - | - | Fuel Injector Replacement - Bank 2 |
| 8 | Fuel Injector Bracket Bolt [4x] | Yes | - | First Pass:10 N.m (89 lb in) | Fuel Injector Replacement - Bank 2 |
| Final Pass:70 degrees | |||||
| 9 | Diesel Engine Combustion Air Heater Glow Plug [4x] | Yes | - | 17 N.m (13 lb ft) | Glow Plug Replacement - Bank 2 |
| 10 | Diesel Glow Plug Wiring Harness Nut [4x] | - | - | 2.7 N.m (24 lb in) | Glow Plug Replacement - Bank 2 |
NOTE:
Callouts in the following chart represent components shown in graphic above.

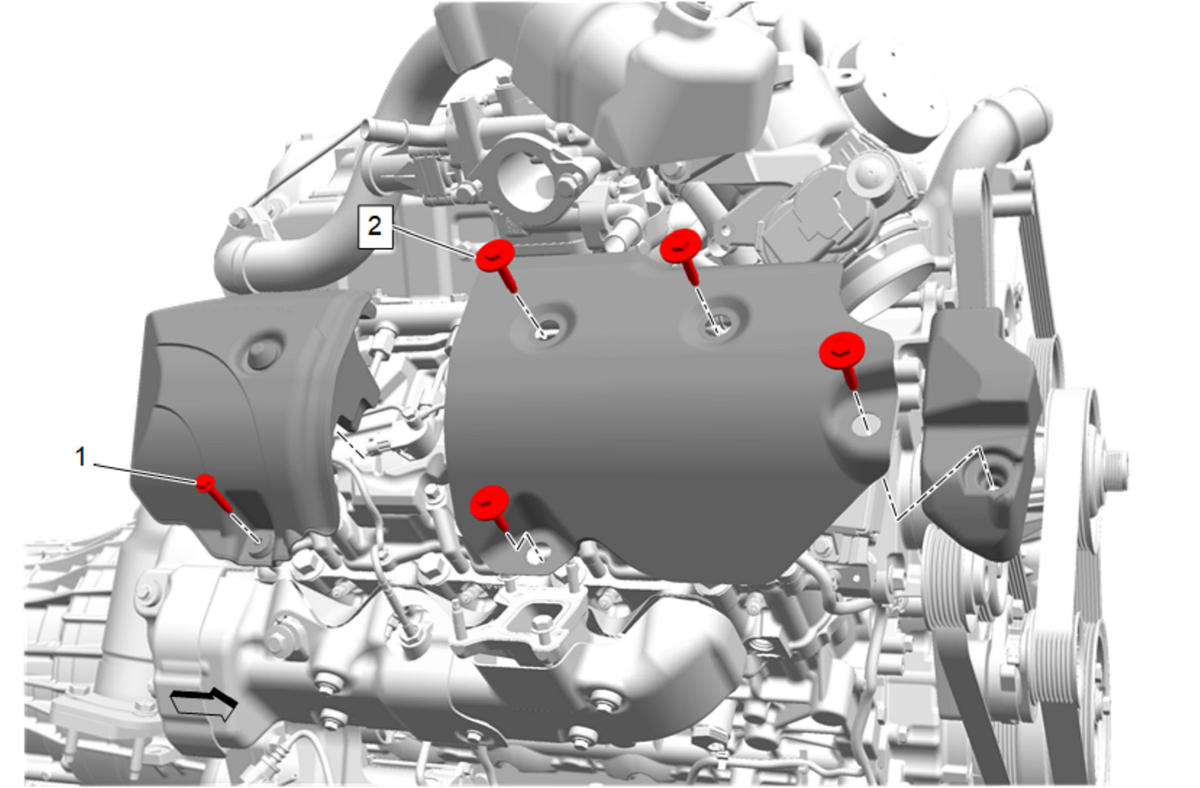

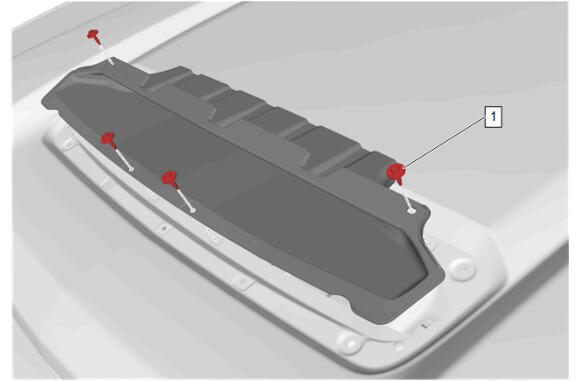

Fuel Injector Deadener Bank 1
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Injection Fuel Feed Manifold Bolt | - | - | 10 N.m (89 lb in) | Fuel Injector Deadener Replacement - Bank 1 Lower Insulator |
| 2 | Fuel Injection Fuel Feed Manifold Bolt [4x] | - | - | 10 N.m (89 lb in) | Fuel Injector Deadener Replacement - Bank 1 Top Front Insulator Fuel Injector Deadener Replacement - Bank 1 Acoustic Heat Shield |
NOTE:
Callouts in the following chart represent components shown in graphic above.

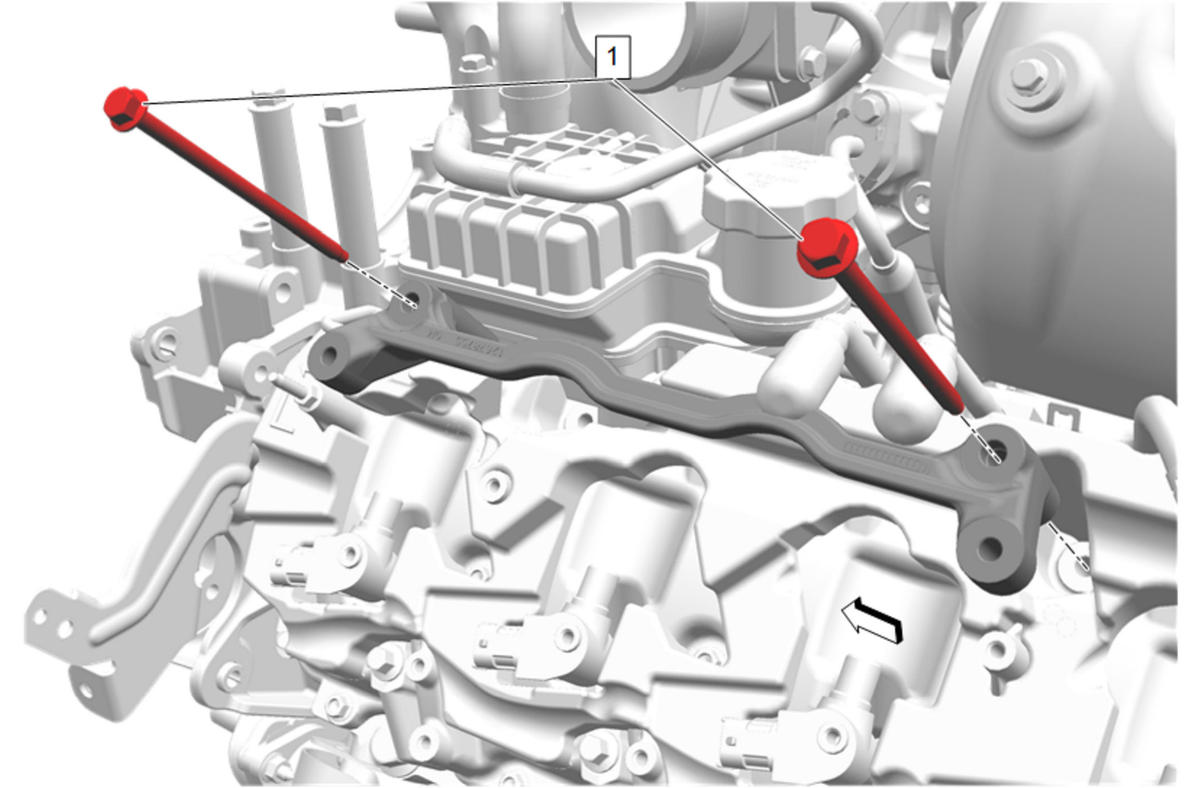

Fuel Injector Deadener Bank 2
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Injection Fuel Feed Manifold Bolt [2x] | - | - | 10 N.m (89 lb in) | Fuel Injector Deadener Replacement - Bank 2 Cover |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Pressure Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Pressure Sensor | - | - | 15 N.m (11 lb ft) | Fuel Pressure Sensor Replacement - Fuel Feed Pipe (Crew, Double, Regular Cab)Fuel Pressure Sensor Replacement - Fuel Feed Pipe (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Pressure Sensor - Chassis Cab
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Pressure Sensor | - | - | 15 N.m (11 lb ft) | Fuel Pressure Sensor Replacement - Fuel Feed Pipe (Crew, Double, Regular Cab)Fuel Pressure Sensor Replacement - Fuel Feed Pipe (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Pump Power Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Pump Power Control Module Nut [2x] | - | - | 9 N.m (80 lb in) | Fuel Pump Power Control Module Replacement (Crew, Double, Regular Cab)Fuel Pump Power Control Module Replacement (Chassis Cab) |
| 2 | Chassis Control Module Bracket Bolt [3x] | - | - | 8 N.m (71 lb in) | Fuel Pump Power Control Module Replacement (Crew, Double, Regular Cab)Fuel Pump Power Control Module Replacement (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Pump Power Control Module - Chassis Cab
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Pump Power Control Module Nut [3x] | - | - | 9 N.m (80 lb in) | Fuel Pump Power Control Module Replacement (Crew, Double, Regular Cab)Fuel Pump Power Control Module Replacement (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

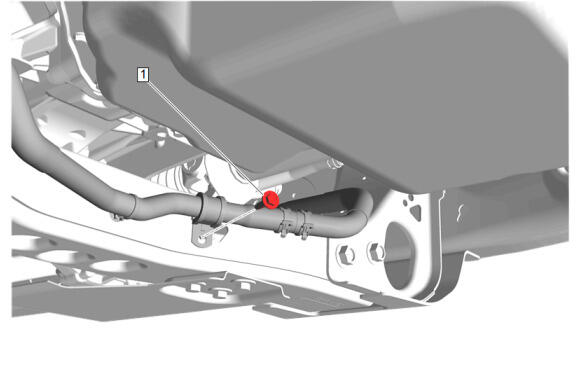

Fuel Tank Components
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Tank Components - Chassis Cab
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Tank Shield
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Tank Shield Bolt [3x] | - | - | 13 N.m (10 lb ft) | Fuel Tank Shield Replacement (Chassis Cab) |
| 2 | Fuel Tank Shield Bolt | - | - | 13 N.m (10 lb ft) | Fuel Tank Shield Replacement (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Fuel Transfer Pump
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Fuel Feed Pipe Nut | - | - | 30 N.m (22 lb ft) | Fuel Transfer Pump Replacement (Chassis Cab) |
| 2 | Fuel Feed Pipe Nut | - | - | 30 N.m (22 lb ft) | Fuel Transfer Pump Replacement (Chassis Cab) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Post Oxidation Catalytic Converter Exhaust Components
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Exhaust Pressure Differential Sensor Pipe Clamp Nut | - | - | 9 N.m (80 lb in) | Exhaust Pressure Differential Sensor Replacement |
| 2 | Exhaust Particulate Sensor | - | - | 45 N.m (33 lb ft) | Exhaust Particulate Matter Sensor Replacement |
| 3 | Exhaust Gas Temperature Sensor | - | - | 45 N.m (33 lb ft) | Exhaust Temperature Sensor Replacement - Position 5 |
| 4 | Exhaust Particulate Sensor Bolt [2x] | - | - | 9 N.m (80 lb in) | Exhaust Particulate Matter Sensor Replacement |
| 5 | Exhaust Pressure Differential Sensor Pipe Nut [2x] | - | - | 45 N.m (33 lb ft) | Exhaust Pressure Differential Sensor Pipe Replacement |
| 6 | Exhaust Gas Temperature Sensor | - | - | 45 N.m (33 lb ft) | Exhaust Temperature Sensor Replacement - Position 4 |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Pre Oxidation Catalytic Converter Exhaust Components
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Exhaust Aftertreatment Fuel Injector | - | - | 45 N.m (33 lb ft) | Exhaust Aftertreatment Fuel Injector Replacement |
| 2 | Fuel Injector Bracket Bolt | - | - | 9 N.m (80 lb in) | Exhaust Aftertreatment Fuel Injector Replacement |
| 3 | Nitrogen Oxides Sensor Control Module Bracket Bolt [2x] | - | - | 9 N.m (80 lb in) | Nitrogen Oxides Sensor Replacement - Position 2 |
| 4 | Fuel Feed Hydrocarbon Injection Pipe Retainer | Yes | - | - | Exhaust Aftertreatment Fuel Injector Replacement |
| 5 | Nitrogen Oxides Sensor | - | - | 45 N.m (33 lb ft) | Nitrogen Oxides Sensor Replacement - Position 2 |
| 6 | Exhaust Gas Temperature Sensor | - | - | 45 N.m (33 lb ft) | Exhaust Temperature Sensor Replacement - Position 3 |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Rear Intake Air Duct
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Intake Air Duct Bracket Bolt [5x] | - | - | 9 N.m (80 lb in) | Rear Intake Air Duct Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Throttle Body Components
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Throttle Body Bolt [4x] | - | - | 10 N.m (89 lb in) | Throttle Body Assembly Replacement |
| 2 | Throttle Body Gasket | Yes | - | - | Throttle Body Assembly Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Variable Geometry Turbocharger Actuator and Actuator Lever
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Variable Geometry Turbocharger Actuator Lever Nut | - | - | 13.5 N.m (119 lb in) | Variable Geometry Turbocharger Actuator Replacement |
| 2 | Variable Geometry Turbocharger Actuator Nut [4x] | - | - | 10.5 N.m (93 lb in) | Variable Geometry Turbocharger Actuator Replacement |
