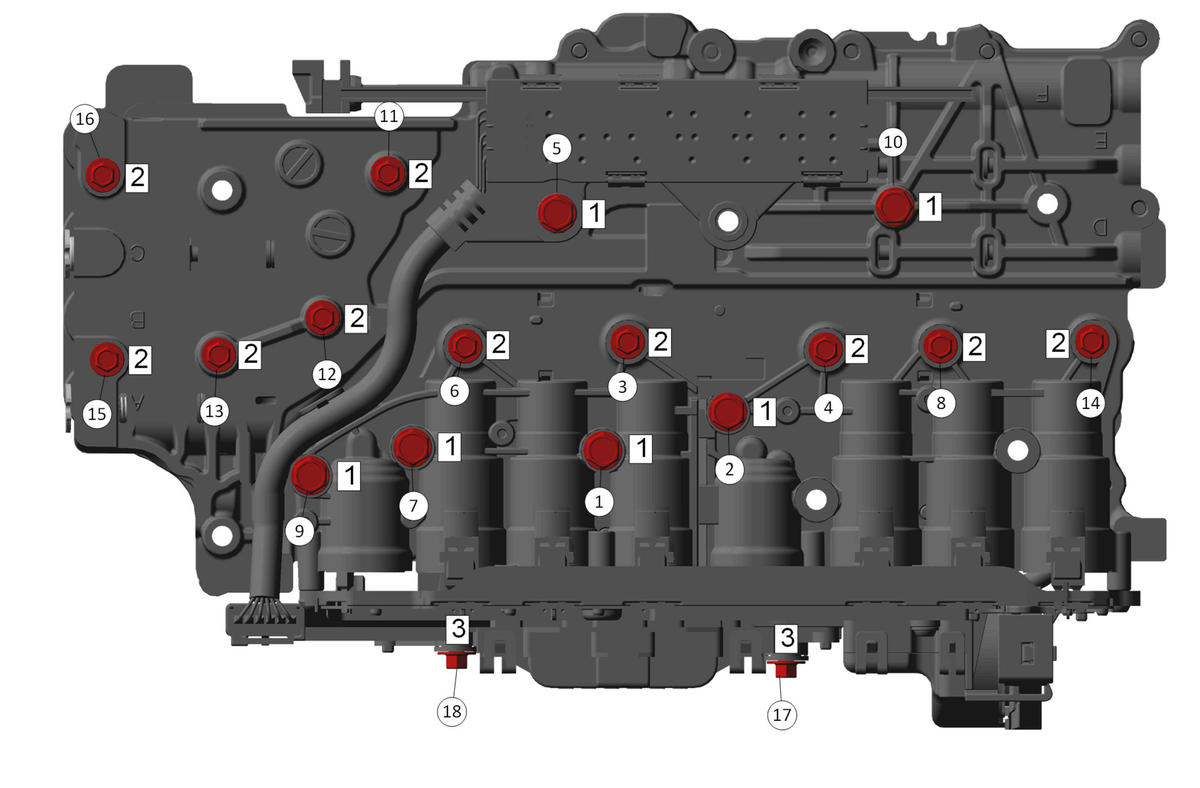

Control Valve Body to Control Valve Upper Body Bolt Sequence
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Control Valve Body to Control Valve Upper Body Bolt Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Control Valve Lower Body Bolt M5 x 73 [6x] | - | - | 8 N.m (71 lb in) | Control Valve Body Assembly Assemble |
| 2 | Control Valve Lower Body Bolt M5 x 45 [10x] | - | - | 8 N.m (71 lb in) | Control Valve Body Assembly Assemble |
| 3 | Control Solenoid Valve Heat Sink Bolt M5 x 53 [2x] | - | - | 8 N.m (71 lb in) | Control Valve Body Assembly Assemble |
