Control Valve Solenoid Body (1 of 2)
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
Control Valve Solenoid Body (1 of 2)

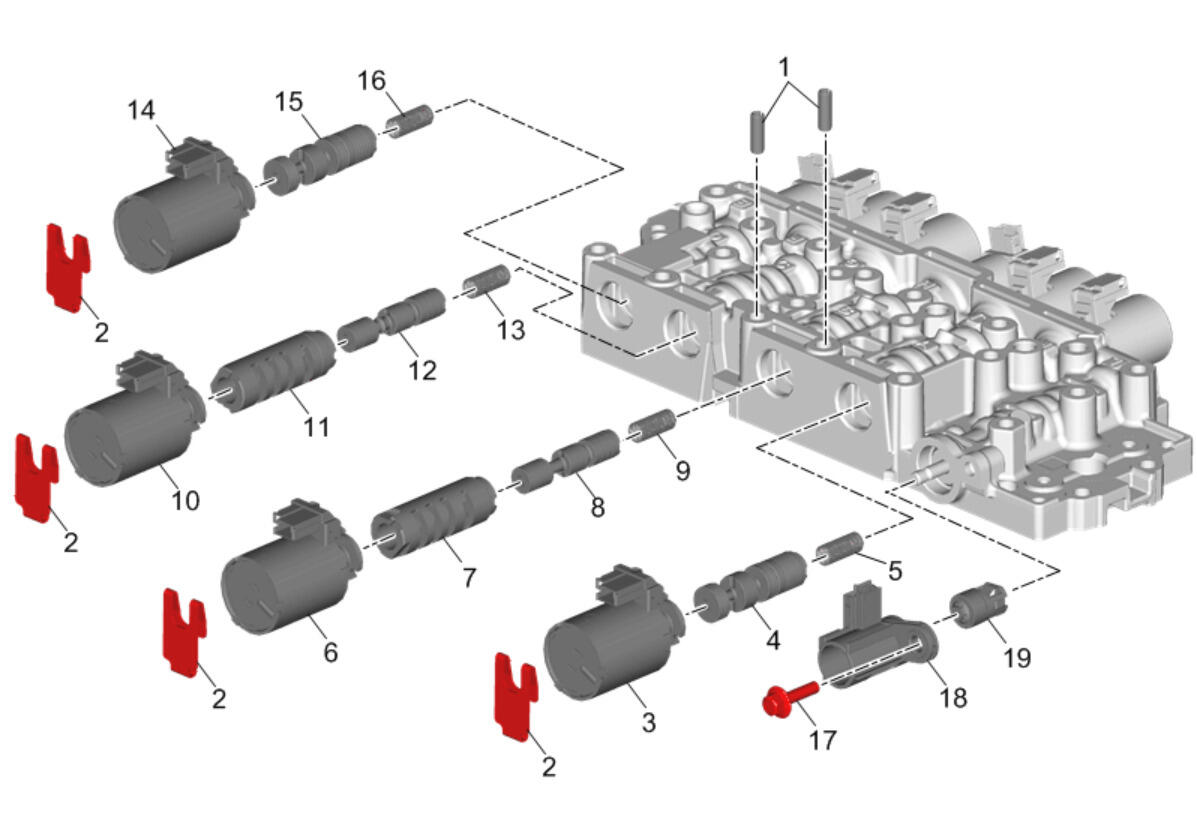

| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Preliminary Procedure Clean and inspect all valve components and the valve solenoid body. The control valve solenoid body assembly is only replaceable as an assembly.Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. |
|
| 1 | Clutch Regulator Valve Sleeve Pin [2x] |
| 2 | Control Valve Solenoid Retainer |
| 3 | Shift Solenoid Valve |
| 4 | 2-9 Clutch Regulator Valve |
| 5 | 2-9 Clutch Regulator Valve Spring |
| 6 | Shift Solenoid Valve |
| 7 | 1-2-3-4-5-6 Clutch Regulator Valve Sleeve |
| 8 | 1-2-3-4-5-6 Clutch Regulator Valve |
| 9 | 1-2-3-4-5-6 Clutch Regulator Spring |
| 10 | Shift Solenoid Valve |
| 11 | 1-Reverse and 6-7-8-9 Clutch Regulator Valve Sleeve |
| 12 | 1-Reverse and 6-7-8-9 Clutch Regulator Valve |
| 13 | 1-Reverse and 6-7-8-9 Clutch Regulator Valve Spring |
| 14 | Shift Solenoid Valve |
| 15 | 5-7-Reverse Clutch Regulator Valve |
| 16 | 5-7-Reverse Clutch Regulator Valve Spring |
| 17 | Control Valve Solenoid Body Bolt
CAUTION:
Refer to Fastener Caution . tighten 9 N.m (80 lb in) |
| 18 | Mode Valve Position Switch |
| 19 | Mode Valve Position Switch Magnet |
