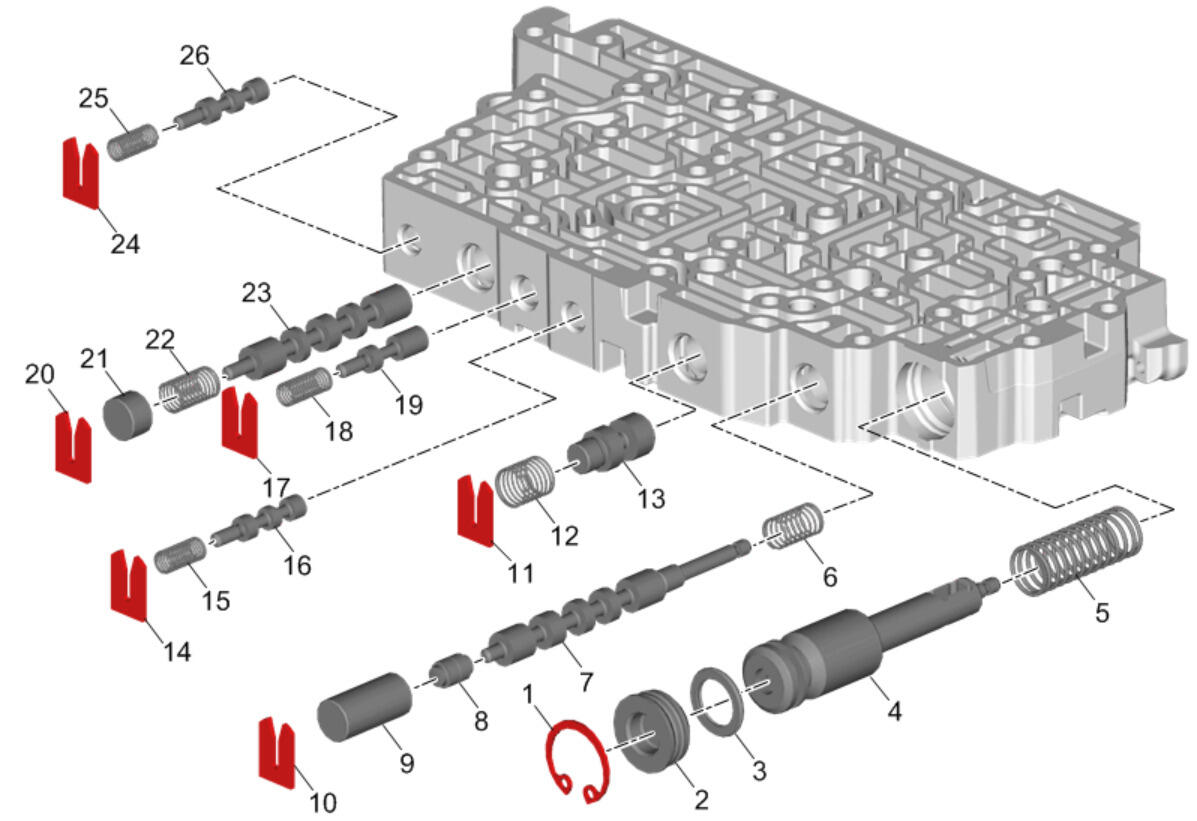

Control Valve Body (1 of 2)
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
Control Valve Body (1 of 2)
| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Preliminary Procedure Clean and inspect all valve components and the valve body. The control valve body assembly is only replaceable as an assembly.Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. |
|
| 1 | Park Release Servo Valve Bore Plug Retainer |
| 2 | Park Release Servo Valve Bore Plug |
| 3 | Park Release Servo Piston Seal |
| 4 | Park Release Servo Piston |
| 5 | Park Release Servo Piston Spring |
| 6 | Mode 2 Valve Spring |
| 7 | Mode 2 Electronic Transmission Range Selector Valve |
| 8 | Mode 2 Valve |
| 9 | Modulator Valve Bushing |
| 10 | Mode 2 Valve Bore Plug Retainer |
| 11 | Electronic Transmission Range Selector Mode Enable Valve Spring Retainer |
| 12 | Electronic Transmission Range Selector Mode Enable Valve Spring |
| 13 | Electronic Transmission Range Selector Mode Enable Valve |
| 14 | 1-2-3-4-5-6 Clutch Boost Valve Spring Retainer |
| 15 | 1-2-3-4-5-6 Clutch Boost Valve Spring |
| 16 | 1-2-3-4-5-6 Clutch Boost Valve |
| 17 | Latch Valve Spring Retainer |
| 18 | Latch Valve Spring |
| 19 | Latch Valve |
| 20 | Clutch Selector Valve Bore Plug Retainer |
| 21 | Clutch Selector Valve Bore Plug |
| 22 | Clutch Selector Valve Spring |
| 23 | Clutch Selector Valve |
| 24 | 5-7-Reverse Clutch Boost Valve Spring Retainer |
| 25 | 5-7-Reverse Clutch Boost Valve Spring |
| 26 | 5-7-Reverse Clutch Boost Valve |
