Control Valve Solenoid Body Wiring Harness Removal

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

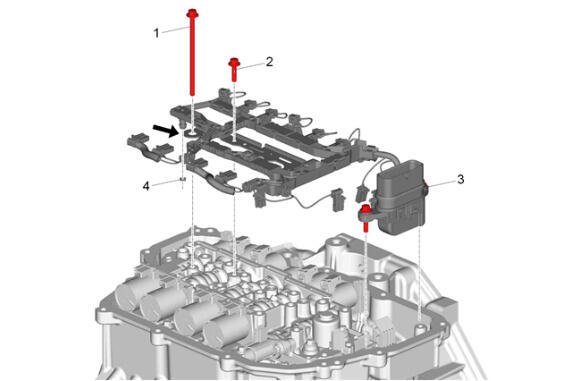

Callout	Component Name
1	Control Valve Body Bolt [2x] or [3x] NOTE: Control valve body bolt quantity is wiring harness dependent.
2	Control Valve Solenoid Body Bolt
3	Automatic Transmission Wiring Harness Procedure Ensure you disconnect all the connectors from the valve body. On-Vehicle the Variable Feed Solenoid Clutch Accumulator Piston and Spring may fall out. Control Valve Body Assembly Disassemble NOTE: The bolt retainer area on the wiring harness indicated by arrow may or may not be present. Newer design wiring harness does not have bolt retainer area.
4	Automatic Transmission Fluid Temperature Sensor Seal Procedure Remove and DISCARD the seal.
