Control Valve Solenoid Body Removal
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

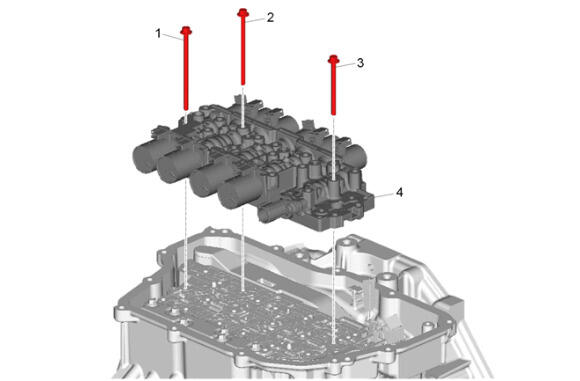

Control Valve Solenoid Body Removal
| Callout |
Component Name |
| 1 |
Control Valve Body Bolt [5x] or [6x]
NOTE:
Control valve body bolt quantity is wiring harness dependent.
|
| 2 |
Control Valve Body Bolt [12x] |
| 3 |
Control Valve Body Bolt [3x] |
| 4 |
Control Valve Solenoid Body |
