Control Valve Body Removal
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

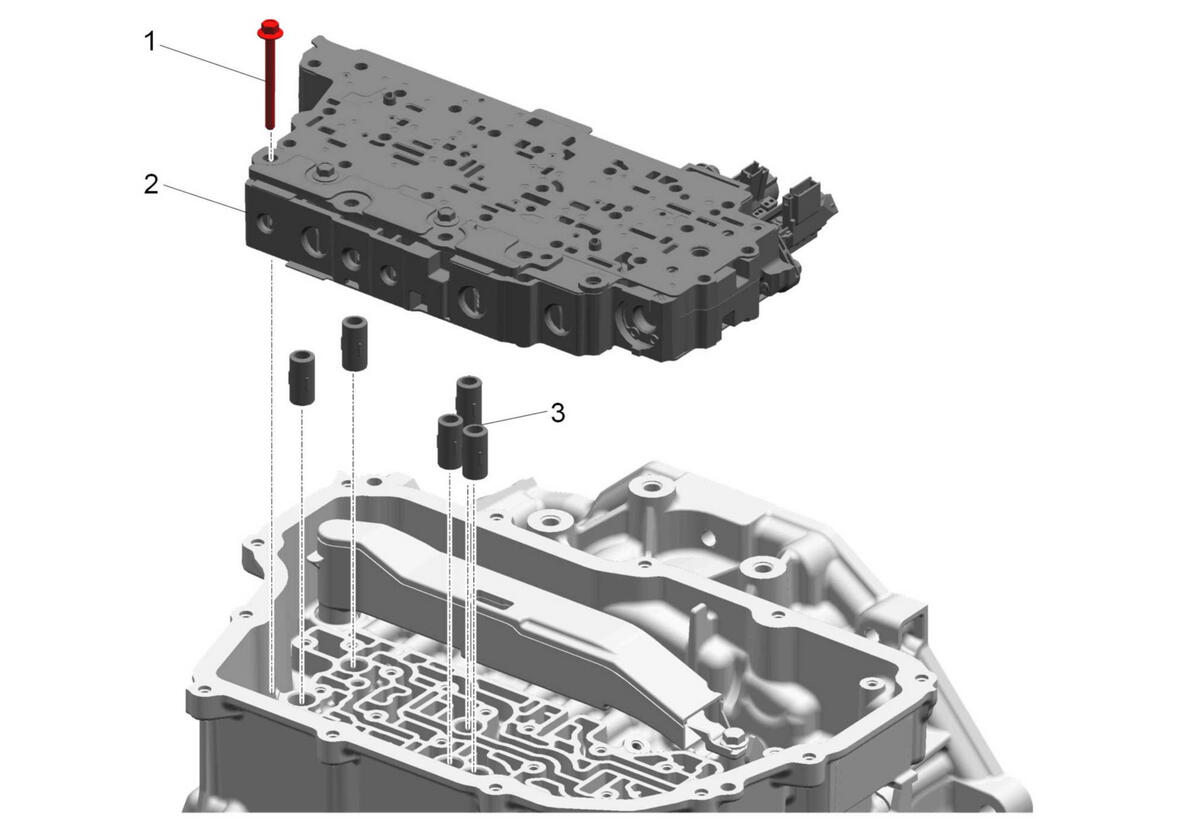

Control Valve Body Removal
| Callout |
Component Name |
| 1 |
Control Valve Body Bolt [5x] |
| 2 |
Control Valve Body |
| 3 |
1-2-3-4 Low and Reverse Clutch Fluid Passage Seal [5x]
Procedure
Remove and DISCARD the seal. |
