Fluid Transfer Pipe Installation
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
Fluid Transfer Pipe Installation

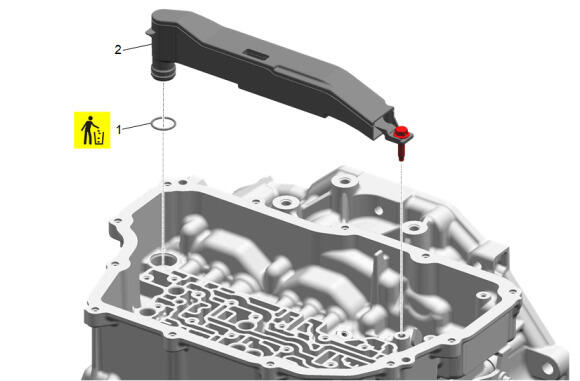

| Callout | Component Name |
|---|---|
| 1 | Fluid Transfer Pipe Seal Procedure Install NEW seals. Do NOT reuse old seals. |
| 2 | Fluid Transfer Pipe
CAUTION:
Refer to Fastener Caution . tighten 9 N.m (80 lb in) |
