Control Valve Solenoid Body Wiring Harness Installation

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

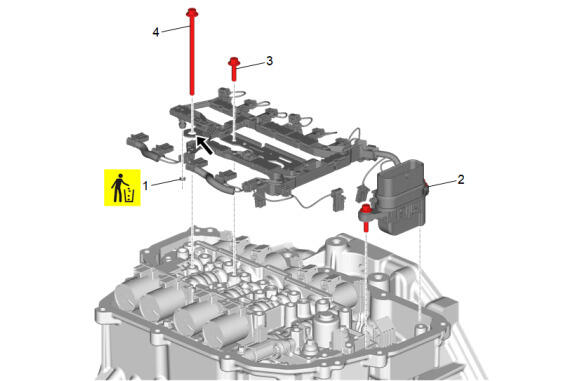

Callout	Component Name
1	Automatic Transmission Fluid Temperature Sensor Seal Procedure Install NEW seals. Do NOT reuse old seals.
2	Automatic Transmission Wiring Harness NOTE: The bolt retainer area on the wiring harness indicated by arrow may or may not be present. Newer design wiring harness does not have bolt retainer area. Procedure Ensure you connect all the connectors to the valve body. The bolts are captured in the wiring harness. tighten 8 N.m (71 lb in)
3	Control Valve Solenoid Body Bolt tighten in sequence 9 N.m (80 lb in) Procedure Hand tighten and follow torque sequence below.
4	Control Valve Body Bolt [2x] or [3x] NOTE: Control valve body bolt quantity is wiring harness dependent. Procedure Hand tighten and follow torque sequence below.
