Control Valve Solenoid Body Torque Sequence
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

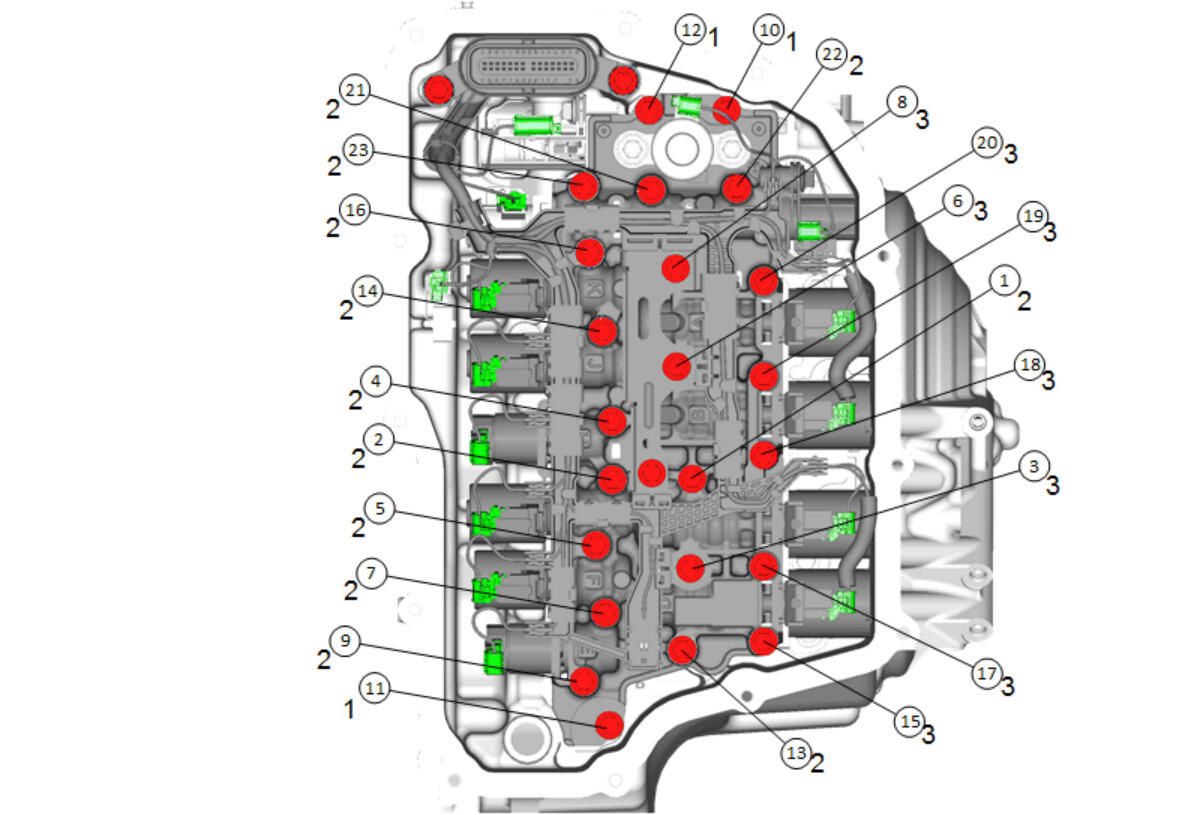

Control Valve Solenoid Body Torque Sequence
| Callout |
Component Name |
| 1 |
Control Valve Body Bolt [3x]
tighten in sequence
8 N.m (71 lb in) |
| 2 |
Control Valve Body Bolt [12x]
tighten in sequence
8 N.m (71 lb in) |
| 3 |
Control Valve Body Bolt [8x]
tighten in sequence
8 N.m (71 lb in) |
