Control Valve Solenoid Body Installation

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

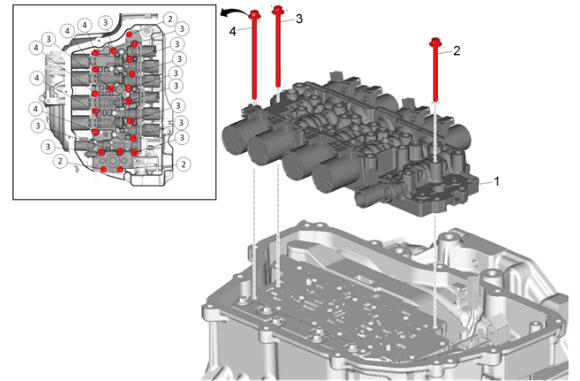

Callout	Component Name
1	Control Valve Solenoid Body Procedure Ensure you disconnect all the connectors from the valve body. When servicing on-vehicle, the Variable Feed Solenoid Clutch Accumulator Pistons, and Springs may fall out. Control Valve Body Assembly Disassemble
2	Control Valve Body Bolt [3x] Procedure Hand tighten and follow torque sequence below.
3	Control Valve Body Bolt [12x] Procedure Hand tighten and follow torque sequence below.
4	Control Valve Body Bolt [5x] or [6x] NOTE: Control valve body bolt quantity is wiring harness dependent. Procedure Hand tighten and follow torque sequence below.
