Control Valve Body Disassemble
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
Control Valve Body Disassemble

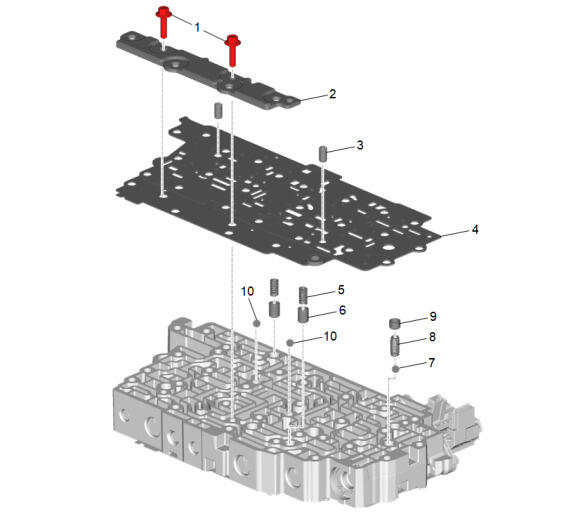

| Callout | Component Name |
|---|---|
| 1 | Control Valve Solenoid Body Bolt [2x] |
| 2 | Oil Transfer Plate |
| 3 | Control Valve Body Locating Pin [2x] |
| 4 | Control Valve Body Spacer Plate Procedure Remove and DISCARD the spacer plate. |
| 5 | Variable Feed Solenoid Clutch Accumulator Piston Spring [2x] |
| 6 | Variable Feed Solenoid Clutch Accumulator Piston [2x] |
| 7 | Control Valve Body Ball Check Valve [3x] |
| 8 | Park Selector Valve Spring |
| 9 | Park Selector Valve Bore Plug |
