Control Valve Body Plate Assemble
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

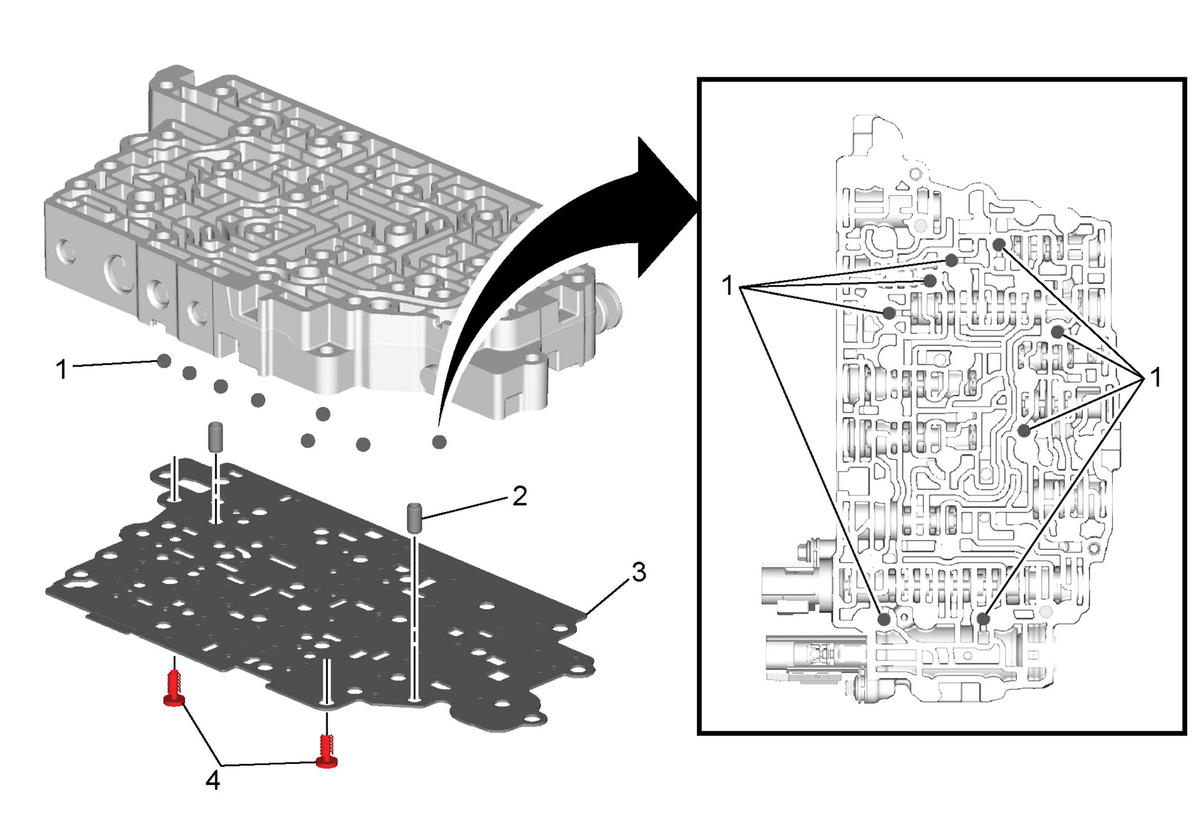

Control Valve Body Plate Assemble
| Callout |
Component Name |
| 1 |
Control Valve Body Ball Check Valve [8x] |
| 2 |
Control Valve Body Locating Pin [2x] |
| 3 |
Control Valve Body Spacer Plate
Procedure
Install a NEW spacer plate. |
| 4 |
Control Valve Body Spacer Plate Retainer [2x] |
