Sunroof Window Motor Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

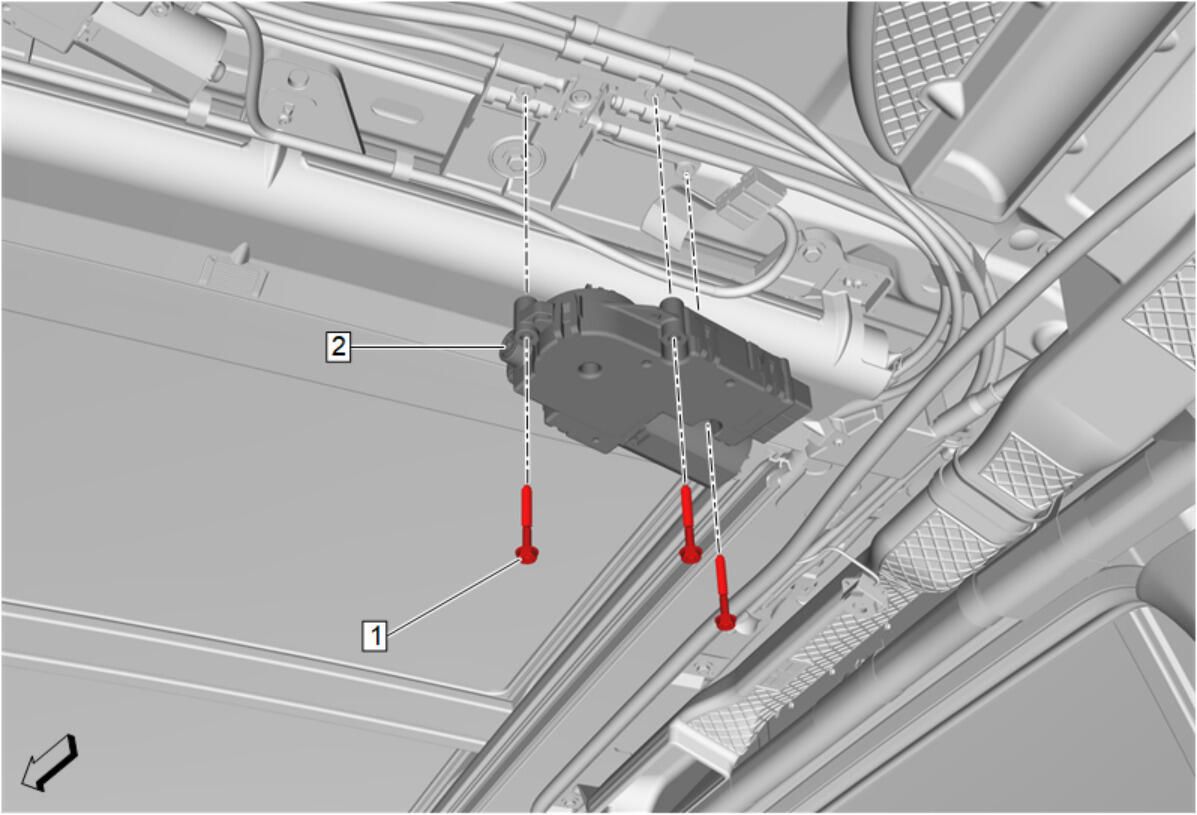

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement
1	Sunroof Control Module Bolt [ 3x ] CAUTION: Refer to Fastener Caution . tighten 4 N.m (35 lb in)
2	Sunroof Control Module Procedure Disconnect the electrical connector. With a turning motion, pull downward on the sunroof control module to release from the drive cables. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement

Sunroof Control Module Bolt [ 3x ]

CAUTION:

Refer to Fastener Caution .

tighten
4 N.m (35 lb in)

Sunroof Control Module

Procedure

Disconnect the electrical connector.
With a turning motion, pull downward on the sunroof control module to release from the drive cables.
Perform the necessary programming and setup procedure:Control Module References
