Folding 3rd Row Seat Module Replacement
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

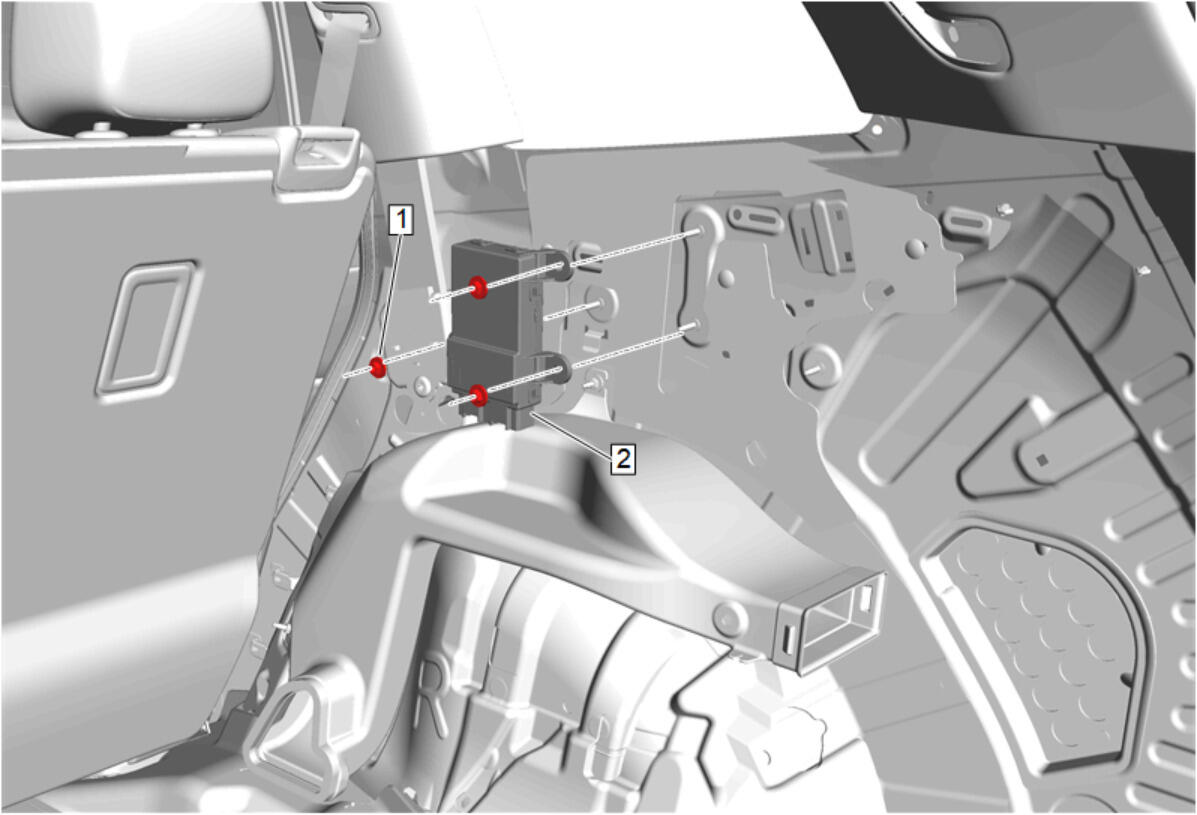

| Callout | Component Name |
|---|---|
| Preliminary Procedure Quarter Lower Rear Trim Panel Replacement - Right Side |
|
| 1 | Folding 3rd Row Seat Module Nut [ 3x ]
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Folding 3rd Row Seat Module Procedure
|
