Short Range Radar Rear Center Sensor Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement

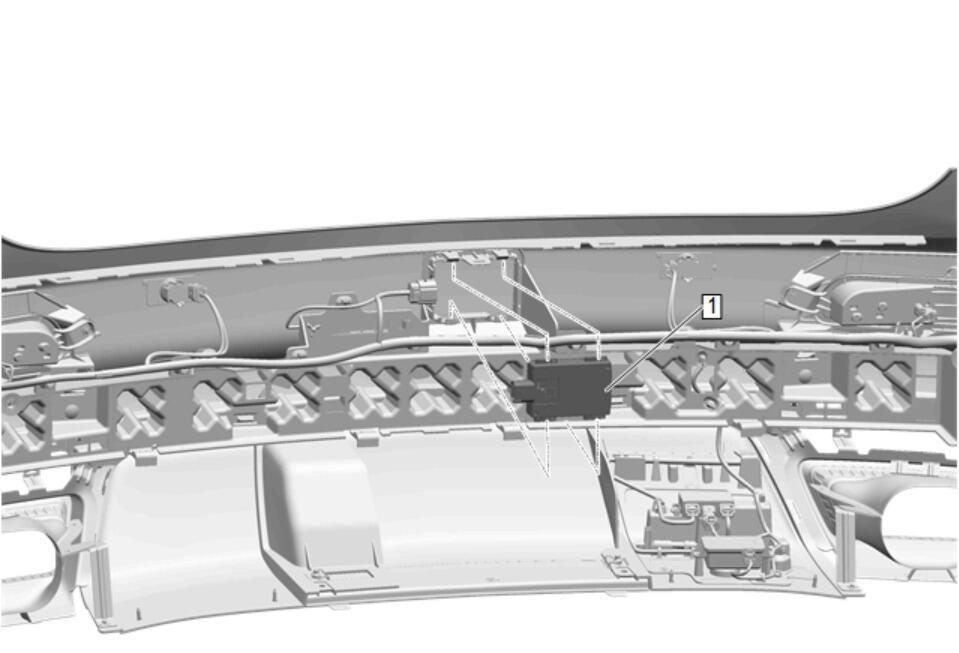

1	Short Range Radar Rear Center Sensor Procedure Disconnect the electrical connector. Release the tab retainers and remove. Perform the necessary programming and setup procedure:Control Module References .

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Replacement

Short Range Radar Rear Center Sensor

Procedure

Disconnect the electrical connector.
Release the tab retainers and remove.
Perform the necessary programming and setup procedure:Control Module References .
