Front Bumper Fascia Support Brace Replacement
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

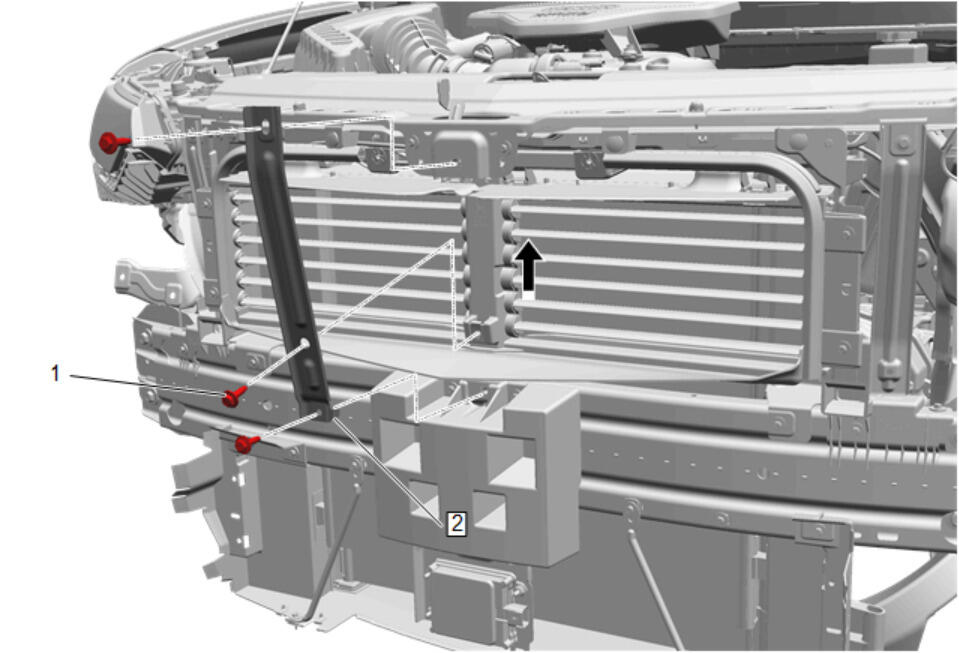

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Removal and Installation |
|
| 1 | Front Bumper Fascia Support Brace Bolt [ 3x ]
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Front Bumper Fascia Support Brace Procedure Pull up on the front bumper fascia support brace to remove it from the front bumper shutter deflector. |
