Rear Compartment Floor Stowage Trim Compartment Replacement
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

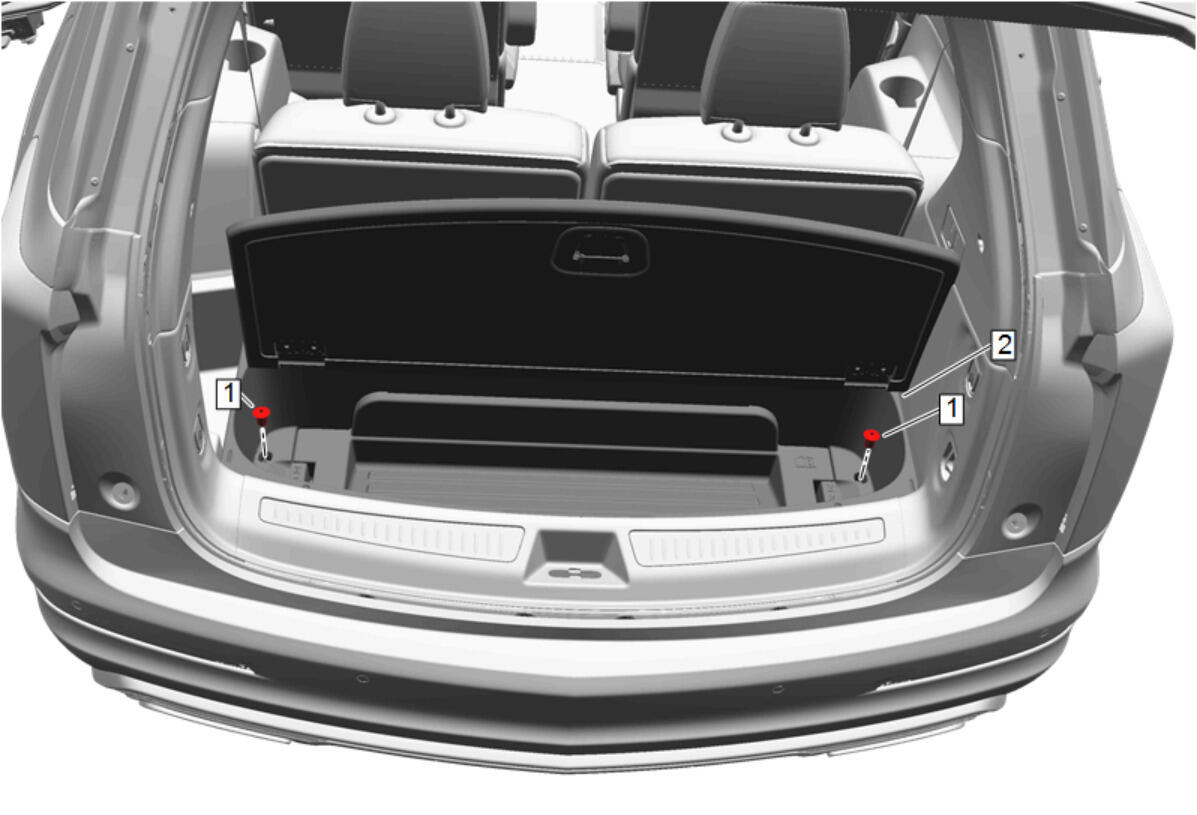

| Callout | Component Name |
|---|---|
| 1 | Rear Compartment Floor Stowage Compartment Divider Retainer [2x]
CAUTION:
Refer to Fastener Caution .
NOTE:
Open the load floor trim panel to access the fasteners. Tighten 1.5 N.m (13 lb in) |
| 2 | Rear Compartment Floor Stowage Trim Compartment Procedure Use the appropriate plastic trim tool to aid in removal. |
