Installation Procedure
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
- Install the control valve body cover (3). Control Valve Body Cover Installation
- Install the body ground cable and wiring harness assembly to the front of transmission.

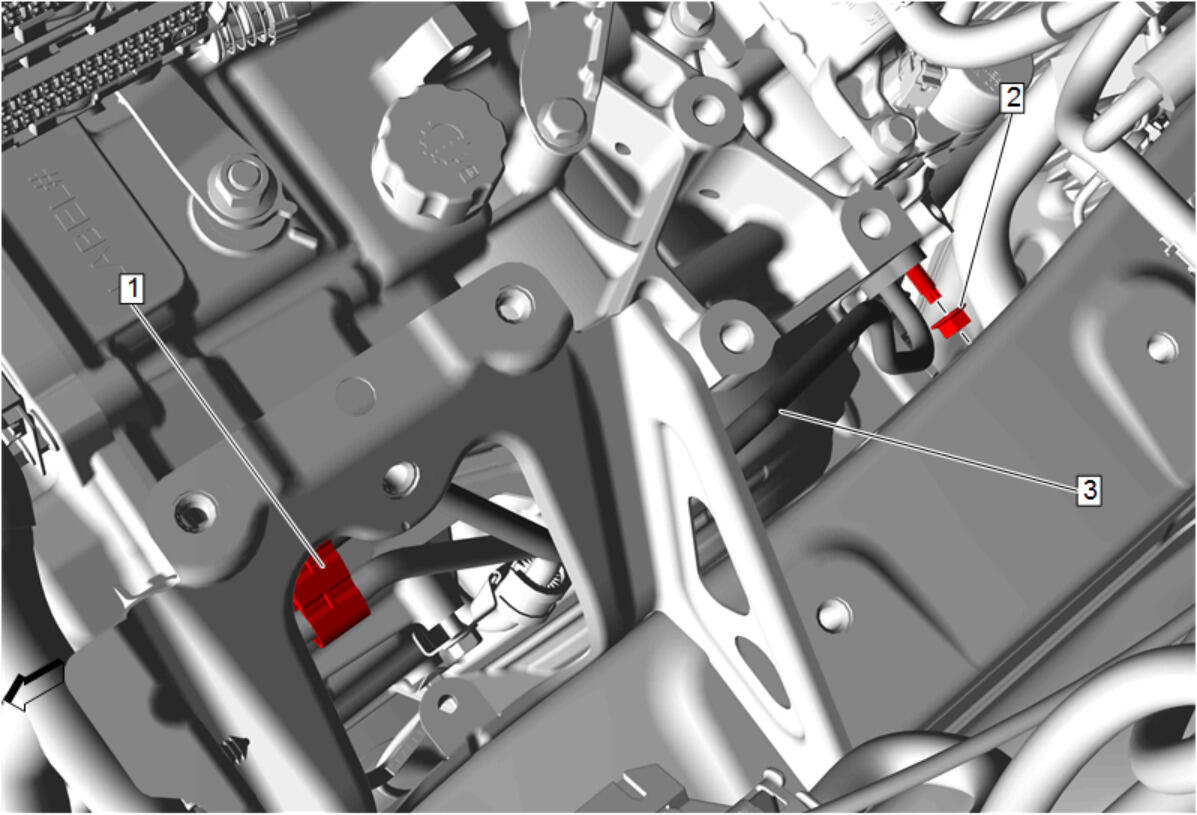

- Transmission Fluid Cooler Outlet Pipe (3) @ Transmission - Connect - Transmission Fluid Cooler Outlet Pipe Replacement (With V08)Transmission Fluid Cooler Outlet Pipe Replacement (Without V08)

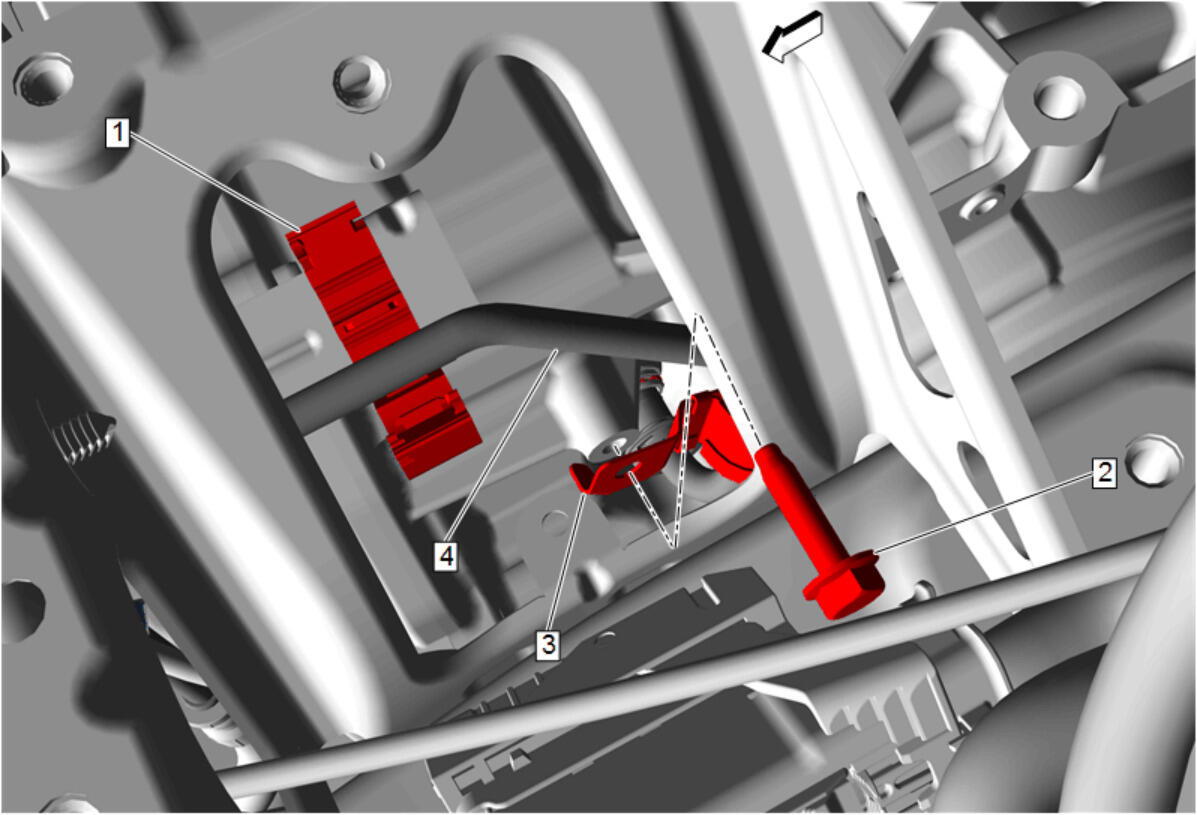

- Transmission Fluid Cooler Inlet Pipe (4) @ Transmission - Connect - Transmission Fluid Cooler Inlet Pipe Replacement (Without V08)Transmission Fluid Cooler Inlet Pipe Replacement (With V08)
- Connect the control valve body transmission control module electrical connector (1), then clip the wiring harness to the cover.
- Fill the transmission with correct fluid. Adhesives, Fluids, Lubricants, and Sealers
- Check transmission fluid level. Transmission Fluid Level and Condition Check
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Check for leaks.
