Installation Procedure

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
GM4528730Courtesy of GENERAL MOTORS COMPANY
  1. Install the auxiliary fluid accumulator (6). Auxiliary Fluid Accumulator Installation

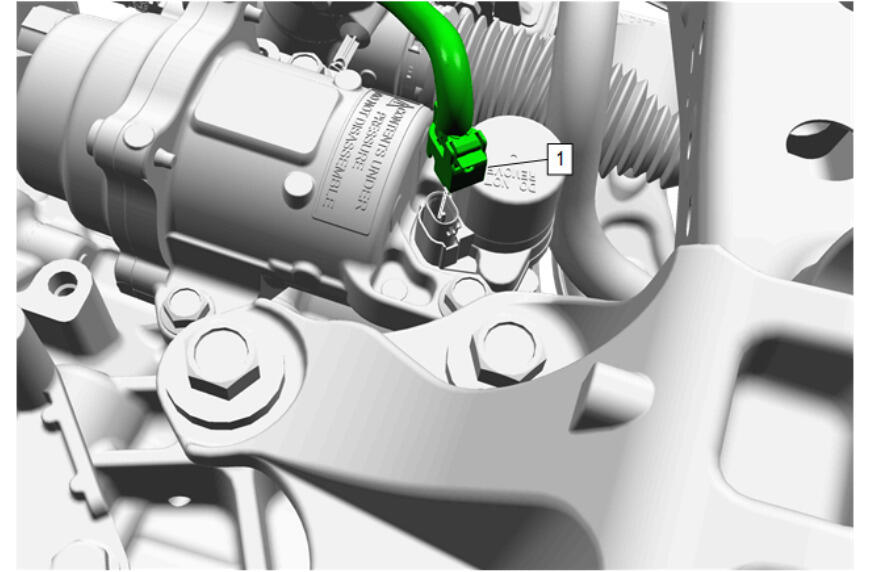

    GM5449024Courtesy of GENERAL MOTORS COMPANY
  2. Connect the auxiliary fluid accumulator electrical connector (1).
  3. Battery Tray - Install - Battery Tray Replacement
