Installation Procedure

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

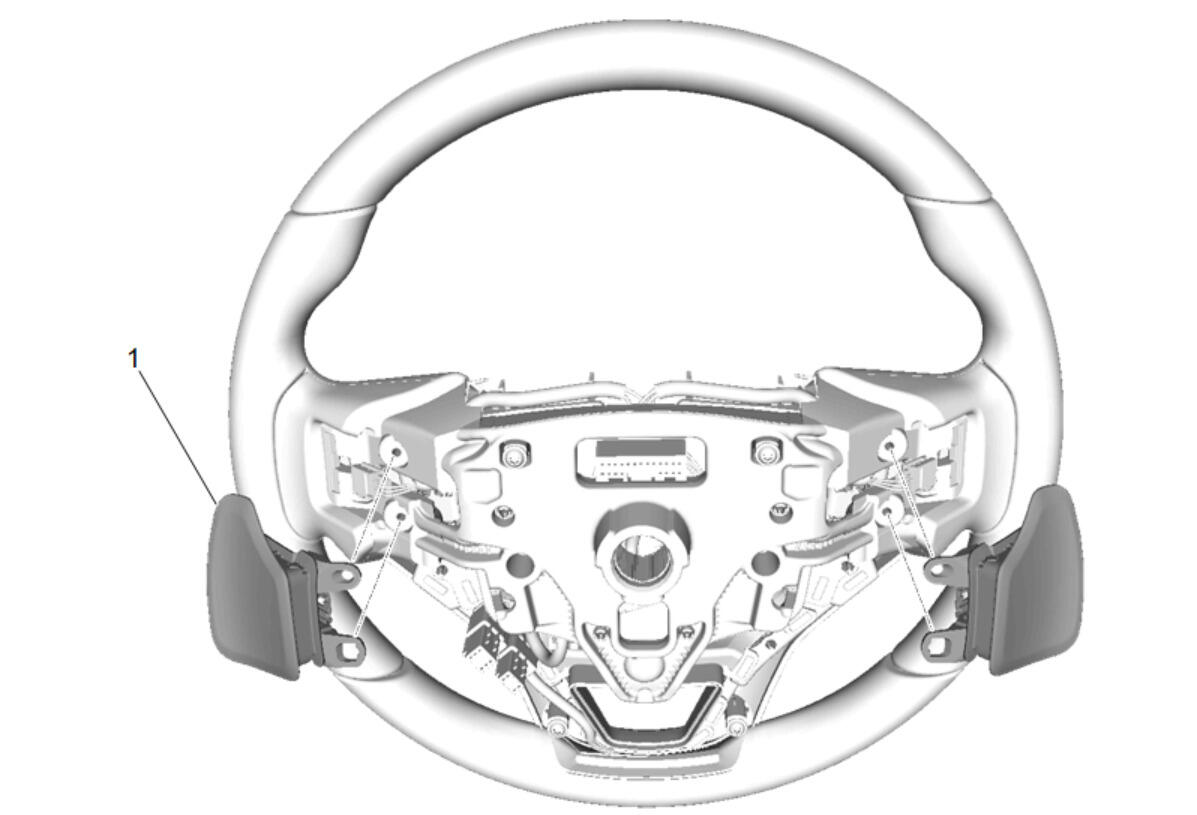

GM5396456Courtesy of GENERAL MOTORS COMPANY
  1. Install the 2 manual shift auxiliary position switches (1).
  2. Connect the electrical connectors.
  3. Steering Wheel Shroud - Install Steering Wheel Shroud Replacement
  4. Install the 2 steering wheel airbag access hole covers. Steering Wheel Airbag Access Hole Cover Replacement
