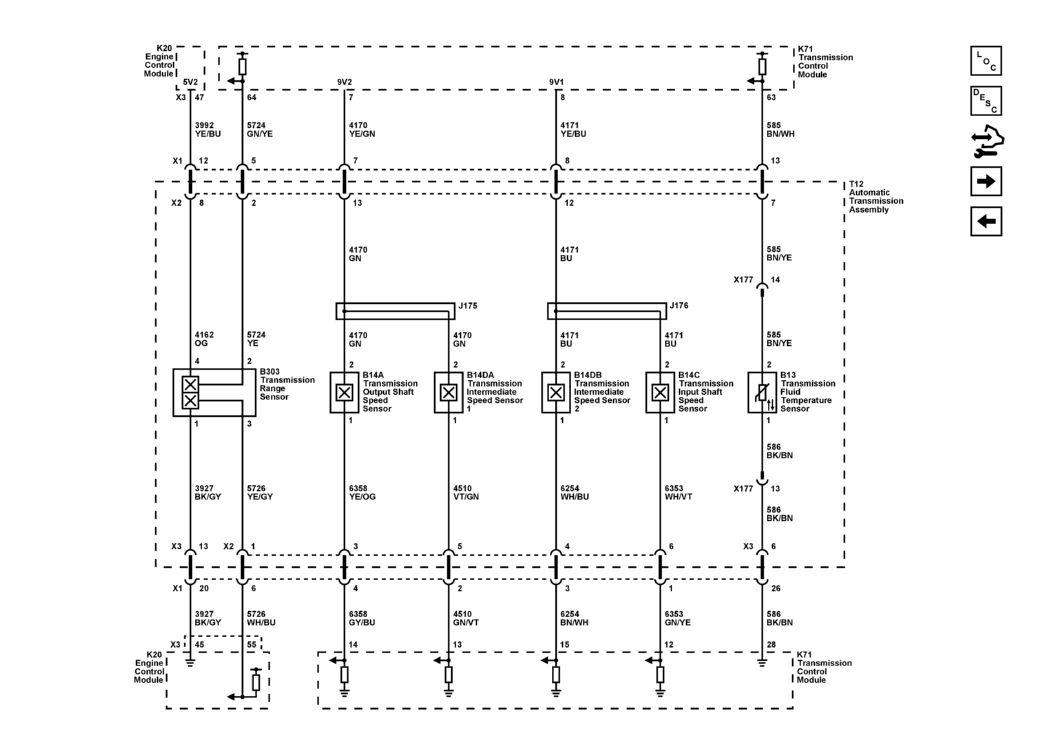

Speed, Temperature and Range Inputs (MGM/MGU)

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GM5460052Courtesy of GENERAL MOTORS COMPANY
