Windshield Garnish Molding Replacement

WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced. CAUTION: Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling

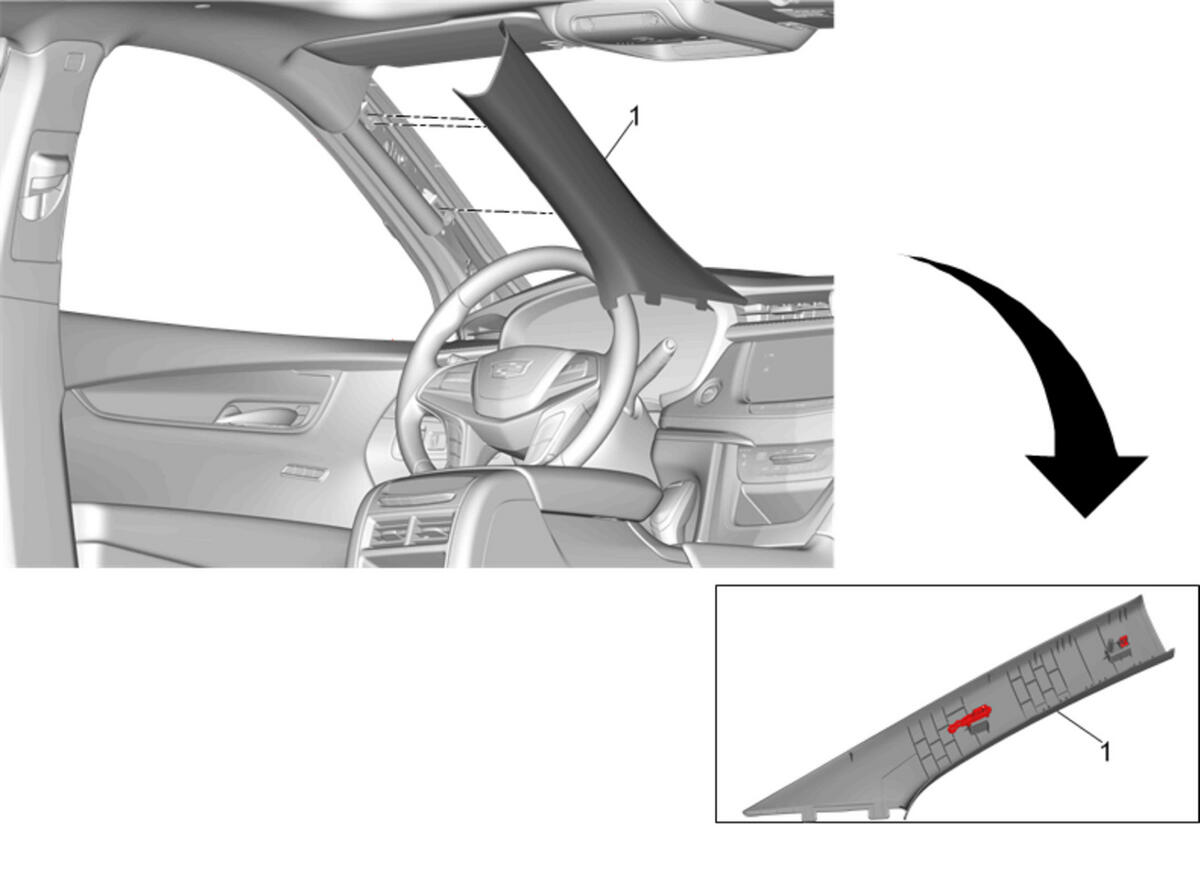

1	Windshield Garnish Molding Procedure Pull the top of the A-Pillar inward to disengage the upper clip. Carefully remove the tether from the dog house. Pull upward to disengage from the instrument panel. Disconnect the electrical connector. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

CAUTION:

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

CAUTION:

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling

Windshield Garnish Molding

Procedure

Pull the top of the A-Pillar inward to disengage the upper clip.
Carefully remove the tether from the dog house.
Pull upward to disengage from the instrument panel.
Disconnect the electrical connector.
Enable the SIR System. SIR Disabling and Enabling
