Rear Compartment Floor Stowage Trim Compartment Replacement - Right Side
WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1

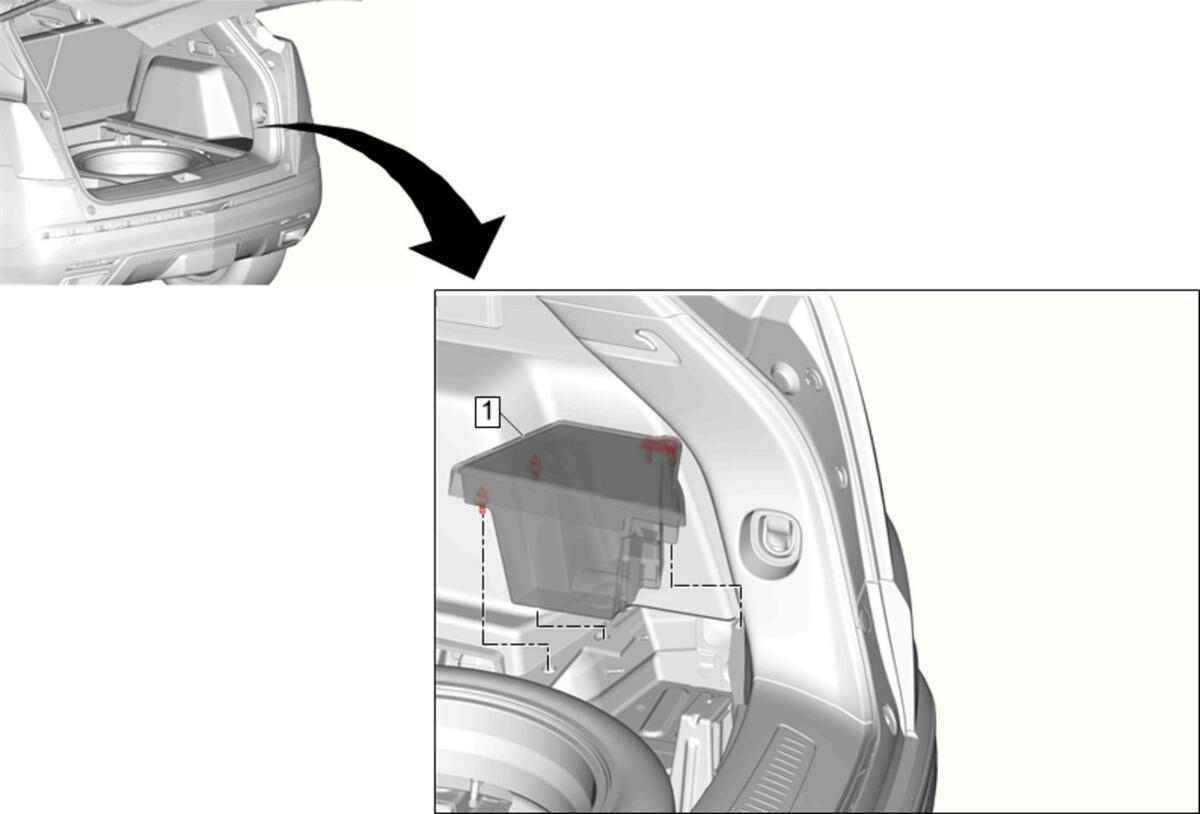

Rear Compartment Floor Stowage Trim Compartment Procedure Use the appropriate plastic trim tool to release the 2 integral locators and 1 integral retainer.
