Transmission Electronic Control Replacement
WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

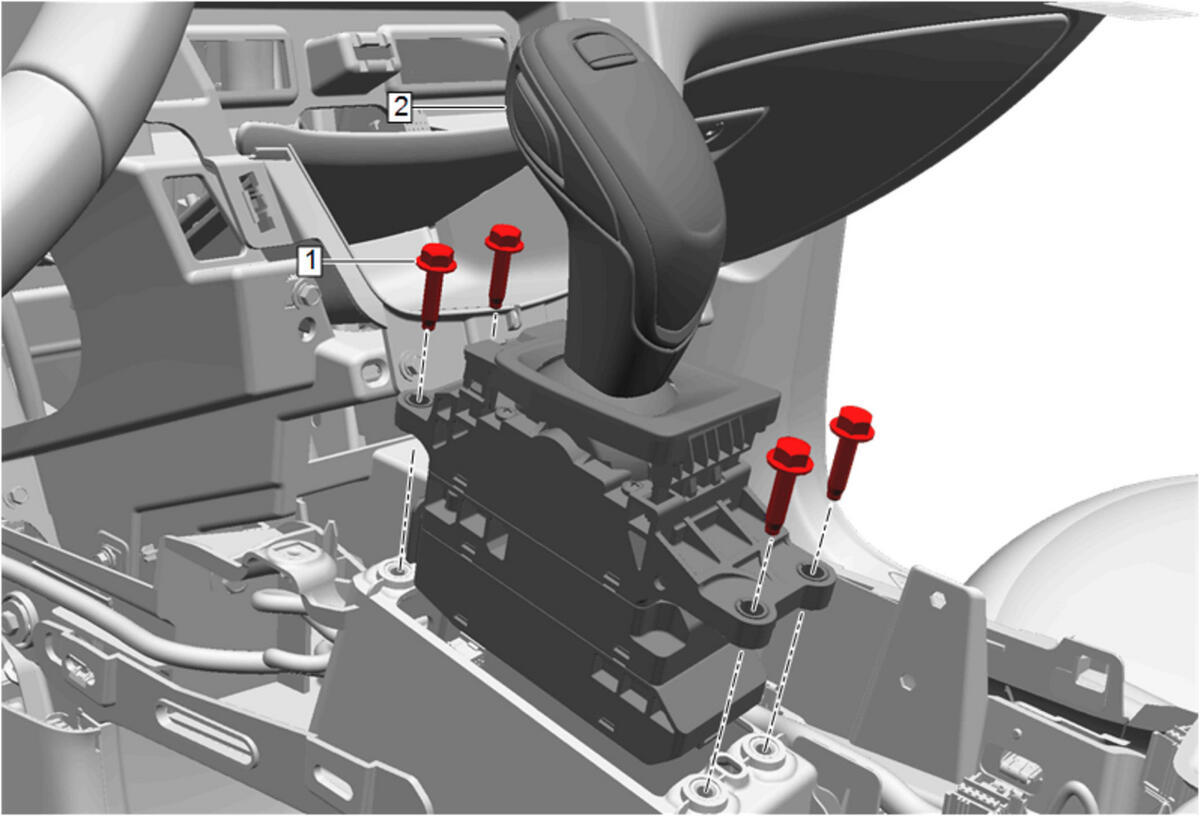

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Holder Replacement |
|
| 1 | Automatic Transmission Control Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Automatic Transmission Electronic Control Procedure Disconnect all electrical connectors. |
