Manual Shift Shaft Replacement

WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

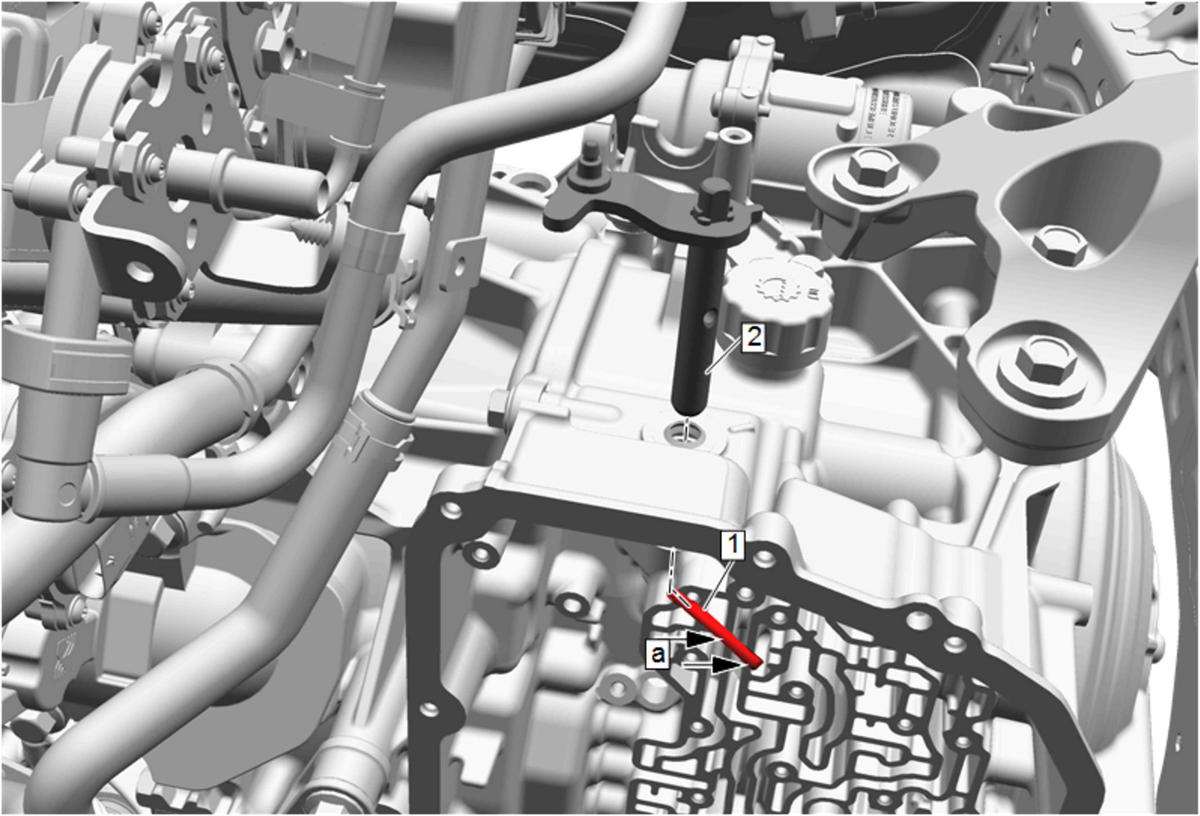

Callout	Component Name
Preliminary Procedures Disconnect the electronic transmission range selector manual park release cable from the automatic transmission range selector lever cable lever, then position out of the way. Electronic Transmission Range Selector Manual Park Release Cable Replacement Control Valve Body Replacement
1	Manual Shift Shaft Pin CAUTION: Refer to Fastener Caution . Procedure Install the manual shift shaft pin to correct height. NOTE: Install a NEW manual shift shaft pin. Specification 7.9 mm (0.38 in) (a)
2	Manual Shift Shaft NOTE: Lubricate the shaft with Automatic Transmission Fluid (ATF) to prevent damage to the manual shift shaft seal during installation.
