Automatic Transmission Fluid Pressure Test Hole Plug Replacement
WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Tire and Wheel Removal and Installation |
|

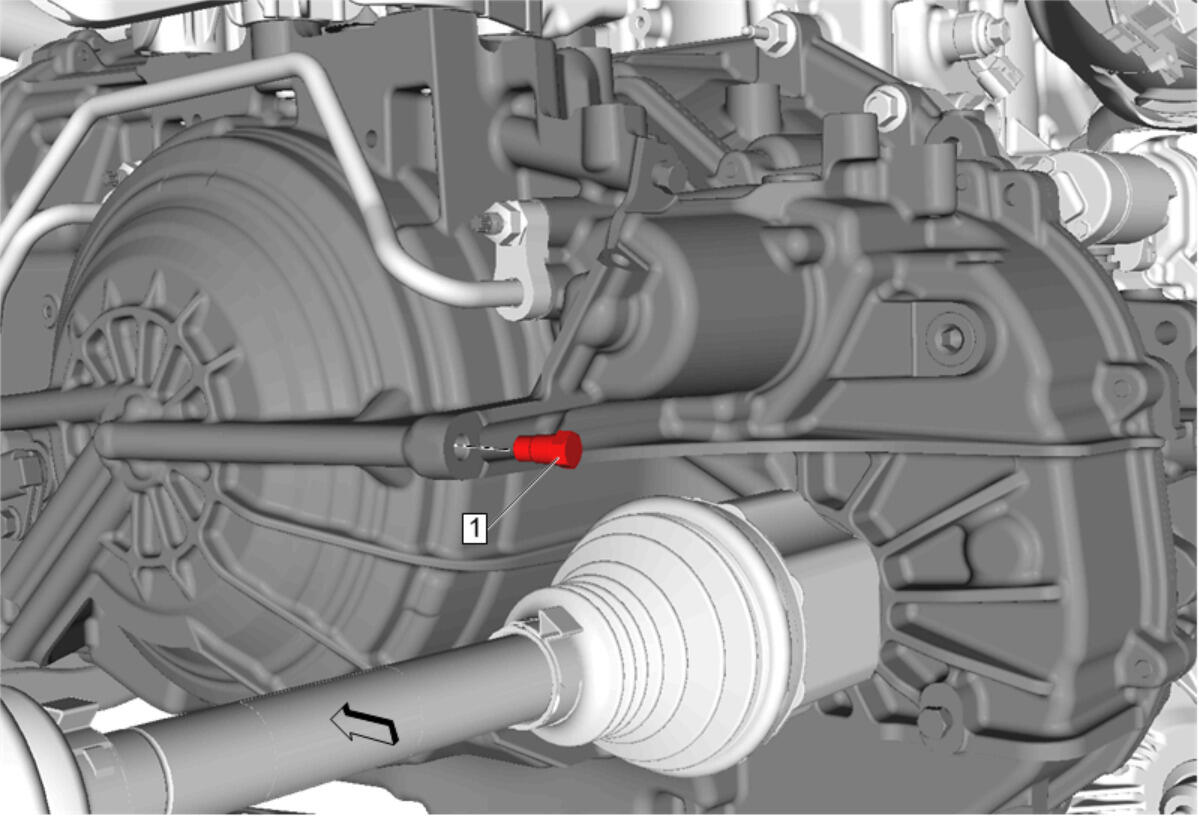

| 1 | Automatic Transmission Case Hole Plug
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 12 N.m (106 lb in) |
