X900 Body Harness to Liftgate Harness

WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

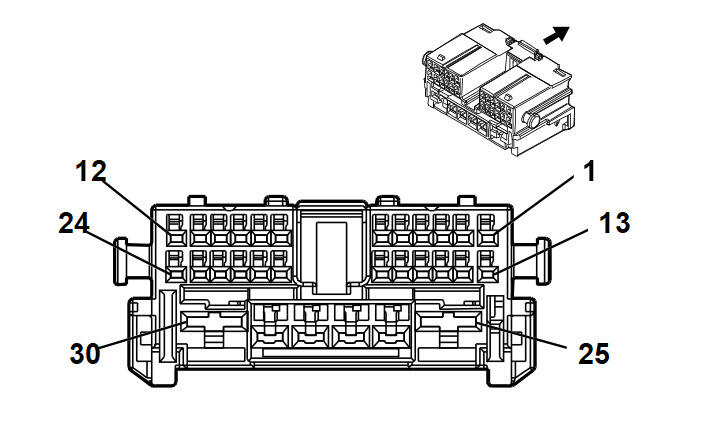

GM4253192Courtesy of GENERAL MOTORS COMPANY

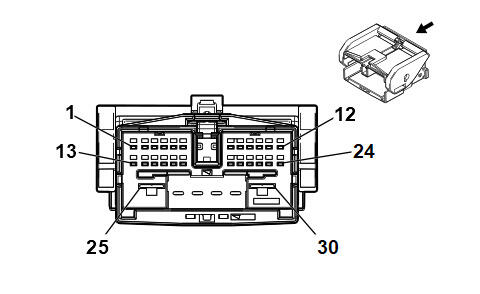

GM4249201Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13590709
  • Service Connector: 13590709
  • Description: 30-Way F 1.2 MCON, 2.8, 6.3 YESC Series (BK)
 Connector Part Information
  • Harness Type: Liftgate
  • OEM Connector: 13518087
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 30-Way M 1.2 MCON, 2.8, 6.3 YESC Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575832 J-35616-4A (PU) J-38125-11A 7116-4112-02 Yazaki 9 C D
II 13575839 J-35616-35 (VT) J-38125-11A 7116-4110-02 Yazaki 9 E C
III 13578928 J-35616-42 (RD) J-38125-11A Not Available Not Available Not Available Not Available
IV 13582289 J-35616-16 (LT GN) J-38125-11A Not Available Not Available Not Available Not Available
V 19371240 J-35616-16 (LT GN) J-38125-215A Not Available Not Available Not Available Not Available
VI Not Required J-35616-13 (BU) No Tool Required Not Required Not Required Not Required Not Required
VII Not Required J-35616-17 (LT GN) No Tool Required Not Required Not Required Not Required Not Required
VIII Not Required J-35616-43 (RD) No Tool Required Not Required Not Required Not Required Not Required
IX Not Required J-35616-5 (PU) No Tool Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 1 RD/YE 3040 IV - Secondary Fused Battery Positive Voltage 30 1 0.75 RD/YE 3040 VI -
2 0.75 BU 393 IV - Rear Window Wiper Motor Control 2 0.75 BU 393 VI -
3 - 15 - - - - - Not Occupied 3 - 15 - - - - -
16 0.5 GN/YE 6846 IV - Rear License Plate Lamp Control 16 0.5 GN/YE 6846 VI -
17 - 18 - - - - - Not Occupied 17 - 18 - - - - -
19 0.35 PU/WH 5065 V - Stop Lamp Relay Coil Control 19 0.5 PU/WH 5065 VI -
20 - - - - - Not Occupied 20 - - - - -
21 0.35 GY/BK 6113 V TB5 Exterior Liftgate Control Switch Signal 21 0.35 GY/BK 6113 VII TB5
22 0.35 GN 6112 V TB5 Liftgate Mode Switch Signal 22 0.35 GN 6112 VII TB5
23 0.35 GN 5060 V TB5 Low Speed GMLAN Serial Data 23 0.35 GN 5060 VII TB5
24 1 RD/BU 840 IV TB5 Secondary Fused Battery Positive Voltage 8 24 1 RD/BU 840 VII TB5
25 2.5 BN/PU 293 III - Rear Defogger Grid Control 25 3 BN/PU 293 VIII -
26 3 BK 1350 I TB5 Ground 13 26 3 BK 1350 IX TB5
27 0.5 GN/BN 4118 II - Liftgate Control Module LIN Bus 1 27 0.5 GN/BN 4118 IX -
28 3 BK 1350 I - Ground 13 28 3 BK 1350 IX -
29 0.5 GN/GY 737 II - Rear Compartment Courtesy Lamp Control 29 0.5 GN/GY 737 IX -
30 2.5 RD/GN 1540 III TB5 Secondary Fused Battery Positive Voltage 15 30 2.5 RD/GN 1540 VIII TB5
