X500 Driver Door Harness to Body Harness

WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

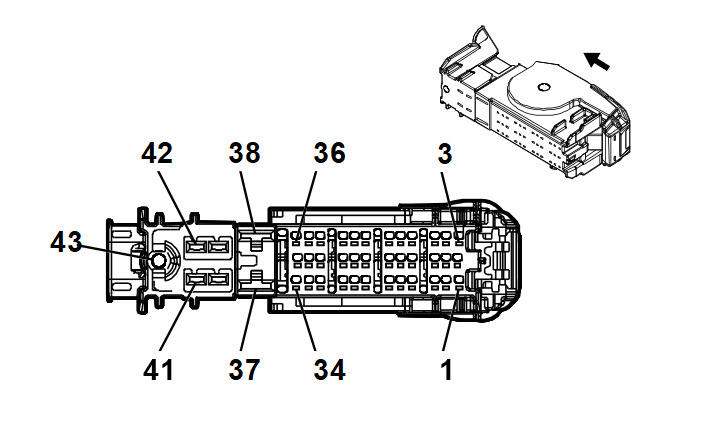

GM4969264Courtesy of GENERAL MOTORS COMPANY

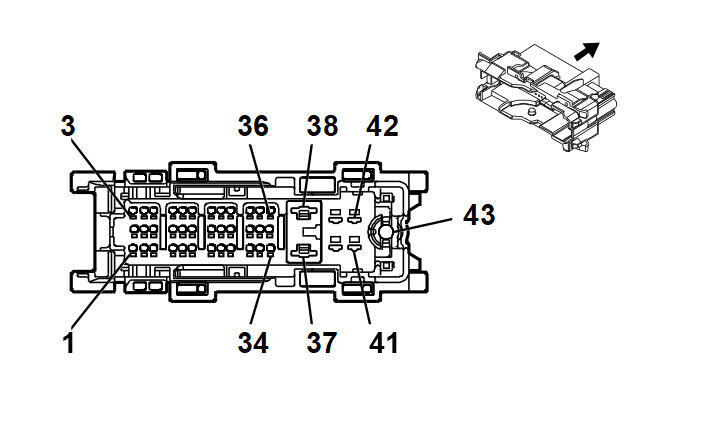

GM4968461Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: 13519703
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 43-Way F 1.2, 2.8, 6.3, Coaxial Series, Sealed (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13519702
  • Service Connector: 13519702
  • Description: 43-Way M 1.2, 2.8, 6.3, Coaxial Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-16 (LT GN) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-42 (RD) No Tool Required Not Required Not Required Not Required Not Required
III Not Required J-35616-4A (PU) No Tool Required Not Required Not Required Not Required Not Required
IV Not Required No Tool Required No Tool Required Not Required Not Required Not Required Not Required
V 13578908 J-35616-5 (PU) J-38125-11A 7114-4112-02 Yazaki 9 C D
VI 19301536 J-35616-43 (RD) J-38125-11A Not Available Not Available Not Available Not Available
VII 19370818 J-35616-17 (LT GN) J-38125-215A Not Available Not Available Not Available Not Available
VIII 84616651 J-35616-17 (LT GN) J-38125-215A Not Available Not Available Not Available Not Available
IX 84888592 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
X Service by Cable No Tool Required Not Available Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.35 BK/BU 5978 I - Seat Memory Switch Low Reference 1 0.35 BK/BU 5978 VIII -
2 0.35 WH 615 I - Seat Memory Switch Signal 1 2 0.35 WH 615 VIII -
3 0.75 BN 5910 I UTT Door Dead Lock Actuator Lock Control 3 0.75 BN 5910 VII UTT
4 - 5 - - - - - Not Occupied 4 - 5 - - - - -
6 0.35 BU/GN 614 I - Seat Memory Switch Set Signal 6 0.35 BU/GN 614 VIII -
7 - 8 - - - - - Not Occupied 7 - 8 - - - - -
9 0.35 WH 3398 I - Passenger Outside Rearview Mirror Motor Common Control 9 0.35 WH 3398 VIII -
10 0.35 WH/YE 3574 I N06 Driver Door Open Switch Signal 10 0.35 WH/YE 3574 VIII N06
11 0.35 GN/BK 3396 I - Passenger Outside Rearview Mirror Motor Right [+] Left [-] Control 11 0.35 GN/BK 3396 VIII -
12 0.35 GY/YE 5853 I - Driver Side Side Object Detection LED Signal 1 12 0.35 GY/YE 5853 VIII -
13 0.35 GN 6112 I - Liftgate Mode Switch Signal 13 0.35 GN 6112 VIII -
14 0.75 BN/YE 294 I - Door Lock Actuator Unlock Control 14 0.75 BN/YE 294 VII -
15 0.75 GY 5911 I - Door Lock Actuator Lock Control 2 15 0.75 GY 5911 VII -
16 0.35 BN/YE 780 I - Driver Door Lock Switch Lock Signal 16 0.35 BN/YE 780 VIII -
17 0.35 BN/WH 781 I - Driver Door Lock Switch Unlock Signal 17 0.35 BN/WH 781 VIII -
18 0.35 GY/BK 6113 I - Exterior Liftgate Control Switch Signal 18 0.35 GY/BK 6113 VIII -
19 0.35 PU/GY 3561 I - Driver Door Keyless Entry Antenna Low Signal 19 0.35 PU/GY 3561 VIII -
20 0.5 BU/WH 1314 I - Left Front Turn Signal Lamp Control 20 0.5 BU/WH 1314 VIII -
21 0.5 BN/YE 2267 I - Outside Rearview Mirror Heater Control 21 0.5 BN/YE 2267 VIII -
22 0.35 GY/GN 5996 I HD7 Driver Outside Rearview Mirror Courtesy Lamp Control 22 0.35 GY/GN 5996 VIII HD7
23 0.35 GN/WH 3570 I - Driver Door Handle Switch Signal 23 0.35 GN/WH 3570 VIII -
24 0.35 PU 3560 I - Driver Door Keyless Entry Antenna High Signal 24 0.35 PU 3560 VIII -
25 0.5 OG/GN 2132 I - Left Front Side Impact Sensor Signal 25 0.5 OG/GN 2132 VIII -
26 0.5 BK/OG 6628 I - Left Front Side Impact Sensor Low Reference 26 0.5 BK/OG 6628 VIII -
27 0.35 GN/YE 6134 I AXG Body Control Module LIN Bus 3 27 0.35 GN/YE 6134 VIII AXG
28 0.35 BK/YE 1691 I - Mirror Dimming Low Reference 28 0.35 BK/YE 1691 VIII -
29 - - - - - Not Occupied 29 - - - - -
30 0.35 GN/WH 7530 I - Driver Seat Memory Control Module LIN Bus 1 30 0.35 GN/WH 7530 VIII -
31 0.35 WH/YE 7557 I - Interior Door Handle Accent Lighting Control 31 0.35 WH/YE 7557 VIII -
32 0.35 YE 6817 I - LED Backlight Dimming Control 1 32 0.35 YE 6817 VIII -
33 0.35 YE/WH 1690 I - Mirror Dimming Signal 33 0.35 YE/WH 1690 VIII -
34 0.35 YE/PU 3397 I - Passenger Outside Rearview Mirror Motor Up [+] Down [-] Control 34 0.35 YE/PU 3397 VIII -
35 0.5 RD/PU 1940 I AXG Secondary Fused Battery Positive Voltage 19 35 0.5 RD/PU 1940 VIII AXG
36 0.35 GY 157 I - Dome/Reading Lamp Control 36 0.35 GY 157 VIII -
37 2.5 RD/BU 1842 II - Primary Fused Battery Positive Voltage 18 37 2.5 RD/BU 1842 VI -
38 2.5 BK 750 II - Ground 7 38 2.5 BK 750 VI -
39 2
1		 BN/BU
BU/BN		 118
1957		 III
III		 UQA
UQP		 Left Front Speaker [-] Control 1
Left Front Midrange Speaker [-] Control		 39 3 BU/BN 1957 V UQP
40 2 BN/BU 118 III - Left Front Speaker [-] Control 1 40 1.5 BN/BU 118 IX -
41 2
1		 BU
BU/PU		 201
1857		 III
III		 UQA
UQP		 Left Front Speaker 1 [+] Control
Left Front Midrange Speaker [+] Control		 41 3 BU/PU 1857 V -
42 2 BU 201 III - Left Front Speaker 1 [+] Control 42 1.5 BU 201 IX -
43 - - - - - Not Occupied 43 - - - - -
43C 0 COAX/GN 2628 IV - Left Sideview Camera Video Signal [+] 43C 0 COAX/GN 2628 X -
43S 0 COAX/GN 2625 IV - Left Sideview Camera Video Signal [-] 43S 0 COAX/GN 2625 X -
