X308 Floor Console Harness to Floor Console Jumper Harness
WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

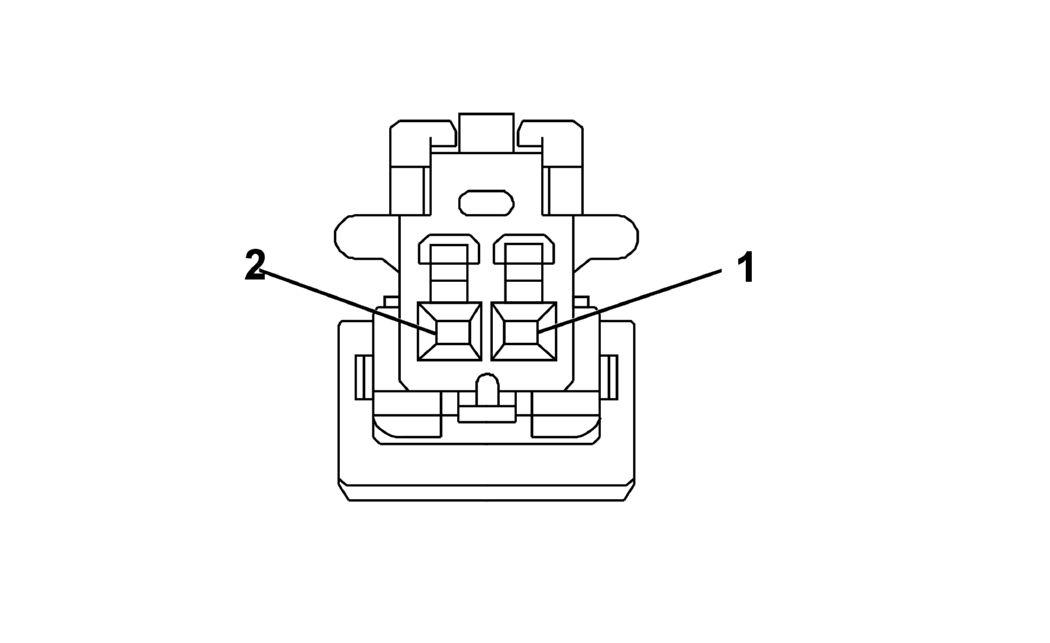

Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13517403
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.2 Series (BK)
|
Connector Part Information
- Harness Type: Floor Console Jumper
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
PU |
4601 |
I |
- |
Retained Accessory Power Control 10 |
1 |
0.75 |
PU |
4601 |
II |
- |
| 2 |
0.35 |
BK |
1750 |
I |
- |
Ground 17 |
2 |
0.35 |
BK |
1750 |
II |
- |
