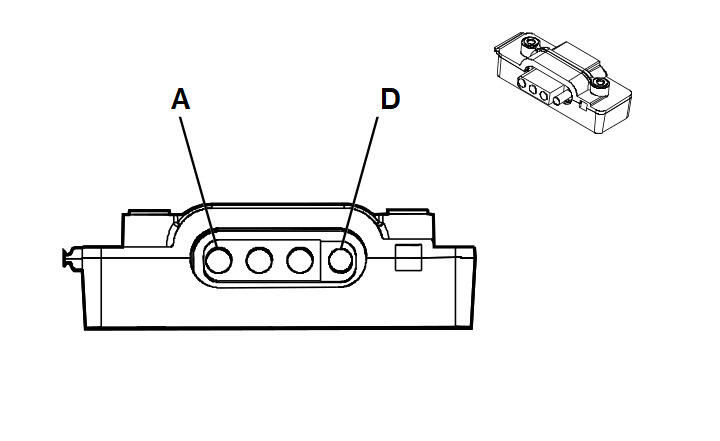

X88 Trailer Connector (-U4G/V92)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Trailer Tow
- OEM Connector: Not Available
- Service Connector: Service by Harness -
- Description: F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
Not Available |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1.0 |
BN |
2109 |
Trailer Park Lamp Control |
I |
- |
| B |
0.75 |
YE |
1618 |
Left Rear Trailer Stop/Turn Lamp Control |
I |
- |
| C |
0.75 |
GN |
1619 |
Right Rear Trailer Stop/Turn Lamp Control |
I |
- |
| D |
1.0 |
WH |
22 |
Trailer Ground |
I |
- |
