S26 Hazard Warning Switch
 Courtesy of GENERAL MOTORS COMPANY
|

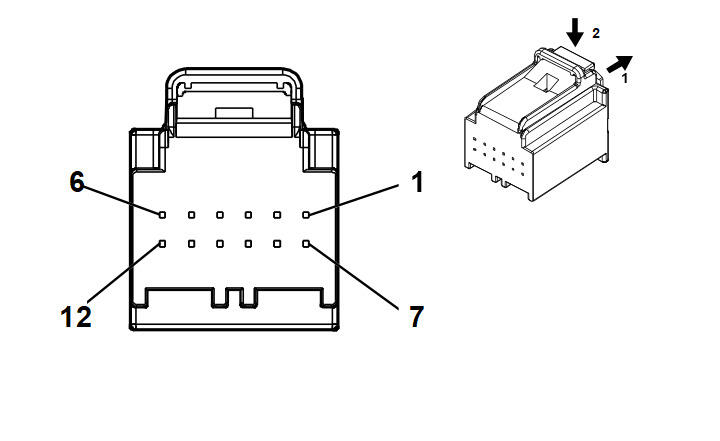

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13525988
- Service Connector: 13525988
- Description: 12 -Way F 0.64 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575867 |
J-35616-64B (LT BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK / WH |
1551 |
Signal Ground |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
RD / BU |
3240 |
Battery Positive Voltage |
I |
- |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
GN / WH |
111 |
Hazard Warning Switch Signal |
I |
- |
| 11 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
