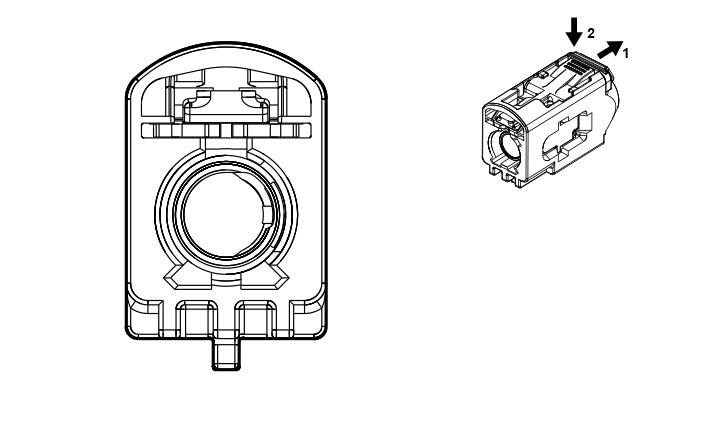

B225L Sideview Camera - Left
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Door COAX
- OEM Connector: 1-2289730-1
- Service Connector: Service by Cable Assembly -
- Description: 1 -Way F Coax Type (RD)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
Left Side Vision Camera Coaxial Video Signal |
I |
- |
