Front Bumper Fascia Skid Plate Replacement

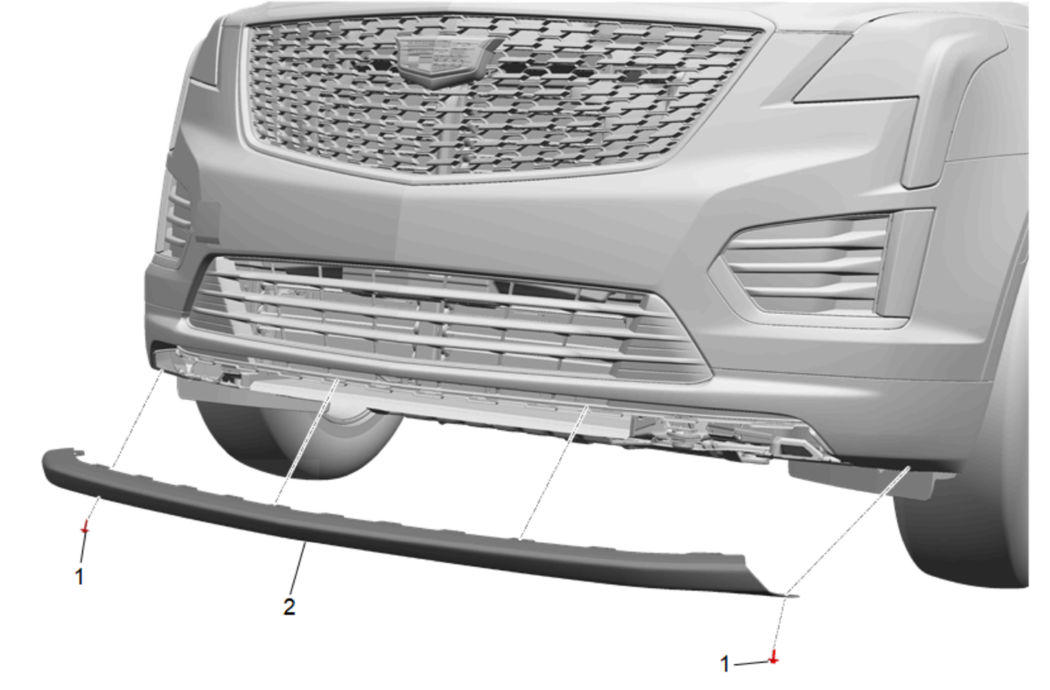

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Removal and Installation (without UV3) , or Front Bumper Fascia Removal and Installation (with UV3) |
|
| 1 | Front Bumper Fascia Skid Plate Bolt [ 2x ]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb/in) |
| 2 | Front Bumper Fascia Skid Plate
NOTE:
The integral retainers are made of stainless steel, are part of the skid plate and will be bent upon removal. Carefully bent the retainers back into shape after removal for proper retention. Procedure Release the retaining tabs. |
