Removal Procedure

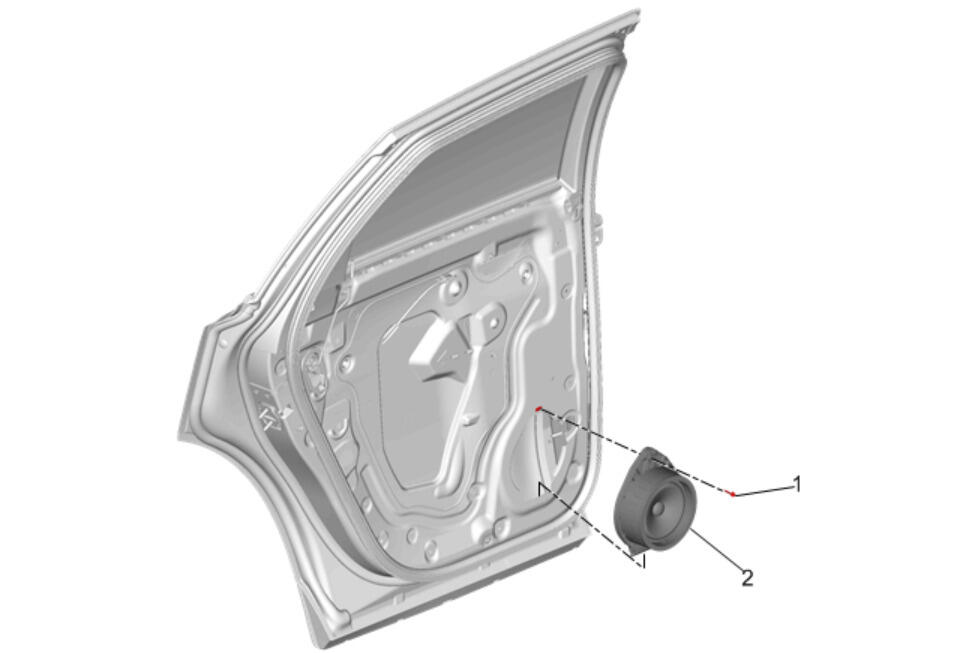

  1. GM4277075Courtesy of GENERAL MOTORS COMPANY

    Radio Rear Side Door Speaker (2) - Remove - Radio Rear Side Door Speaker Replacement

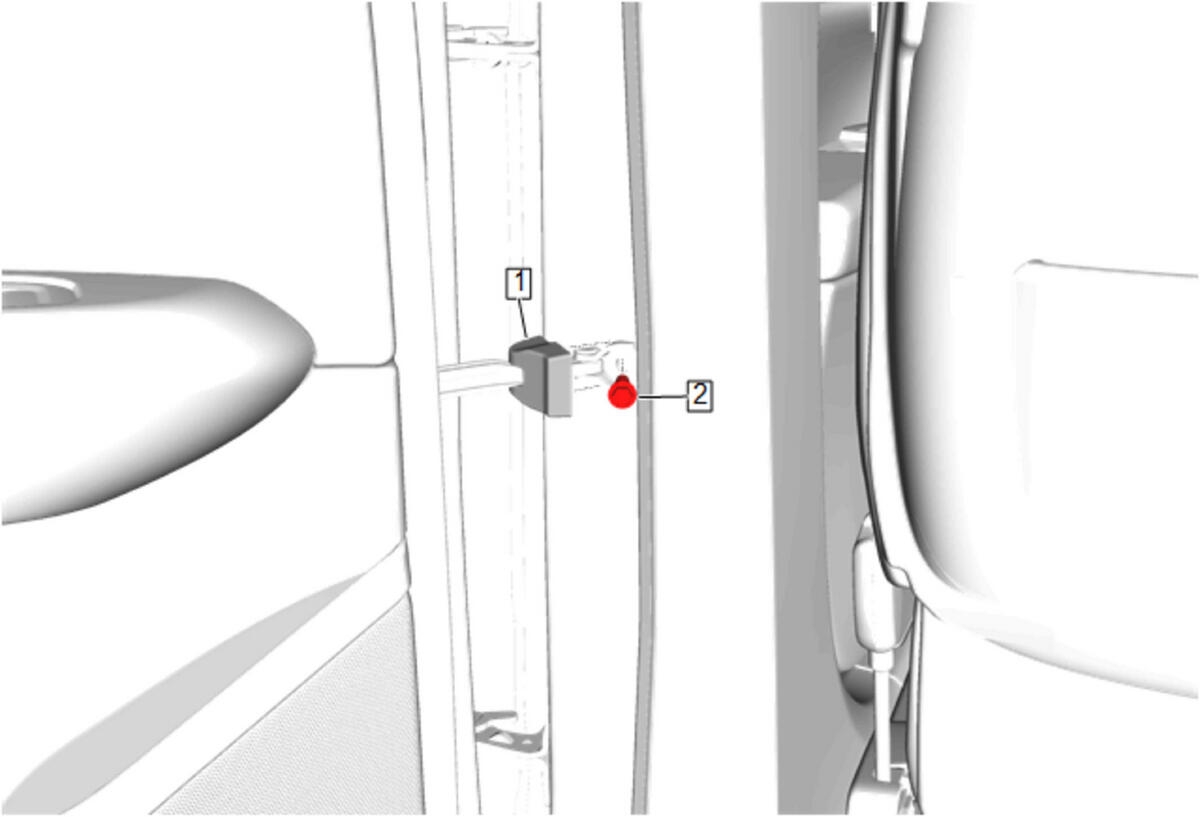

  2. GM5336356Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Cover (1) - Reposition away

  3. Rear Side Door Check Link Body Side Bolt (2) - Remove

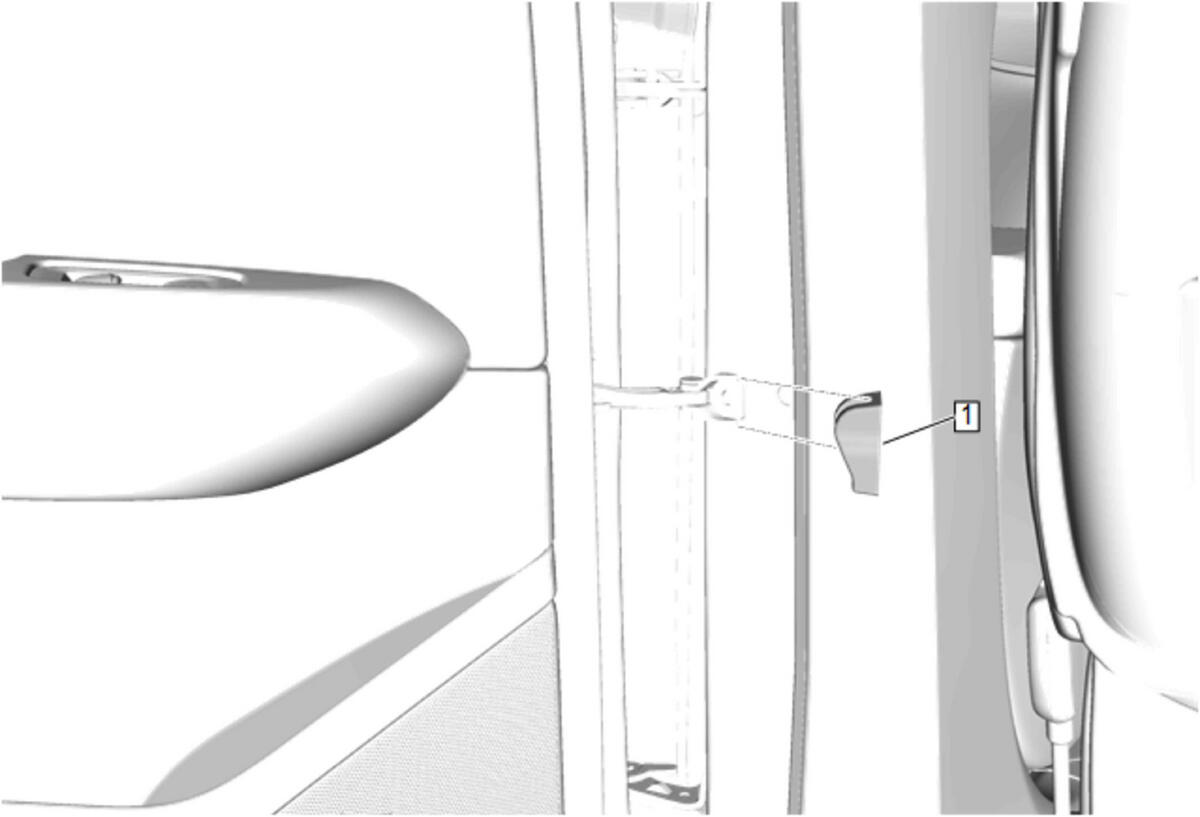

  4. GM5335762Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Cover (1) - Remove - Rear Side Door Check Link Cover Replacement

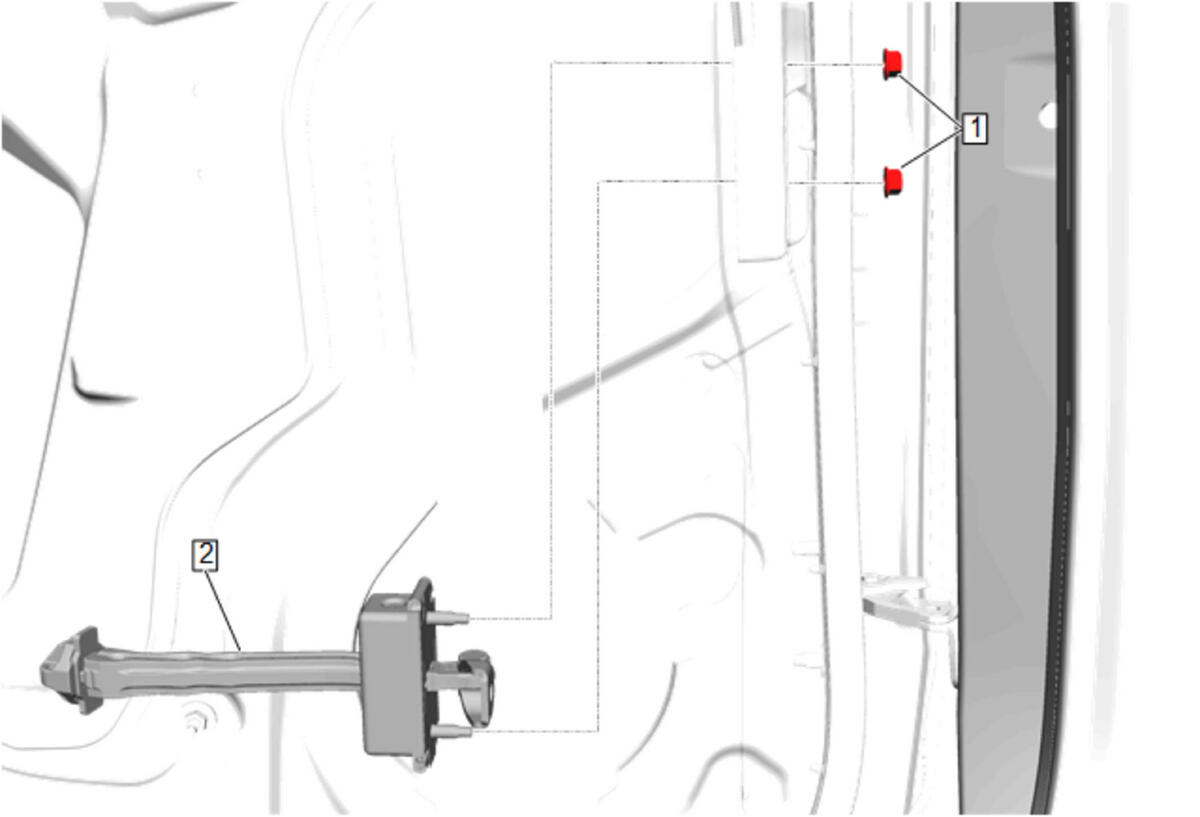

  5. GM5336358Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Door Side Nut (1) - Remove [ 2x ]

  6. Remove the rear side door check link (2) through the radio rear side door speaker hole.
