Removal Procedure

  1. GM4276974Courtesy of GENERAL MOTORS COMPANY

    Radio Front Side Door Speaker (2) - Remove - Radio Front Side Door Speaker Replacement

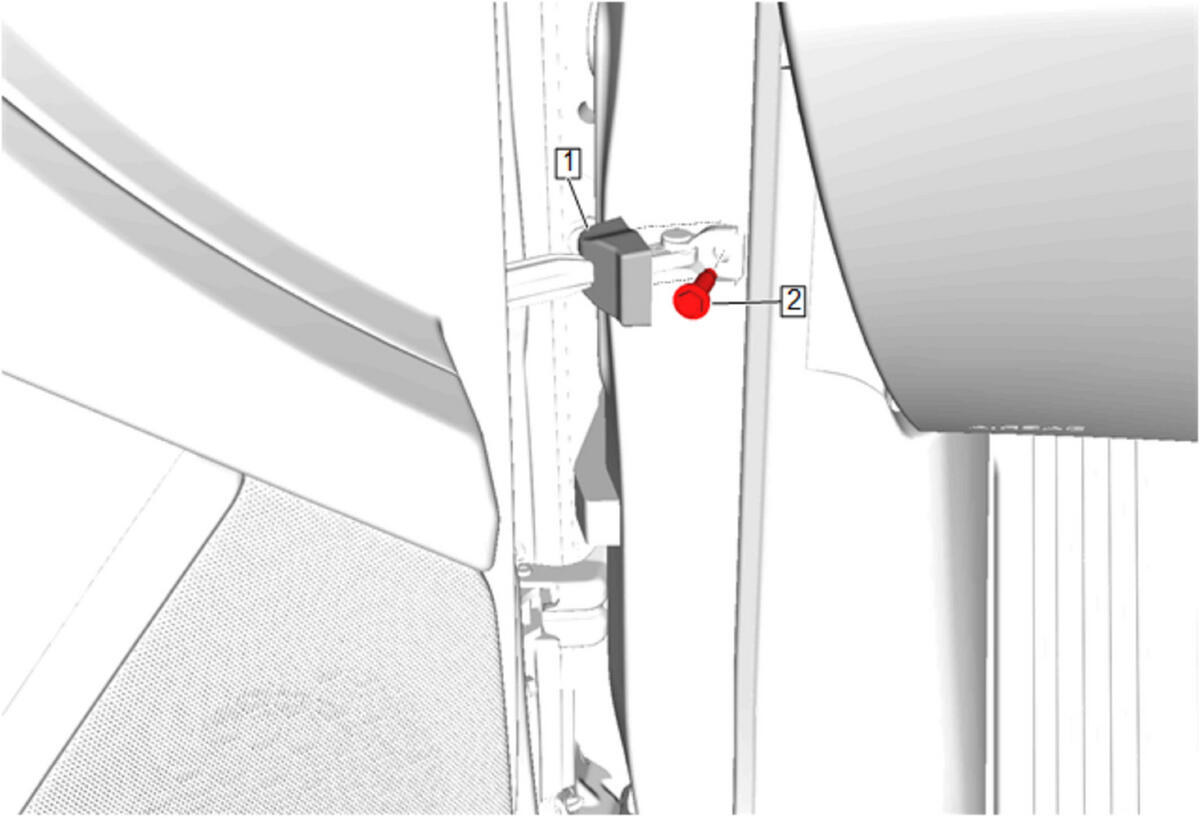

  2. GM5336308Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Cover (1) - Reposition away

  3. Front Side Door Check Link Bolt (2) - Remove

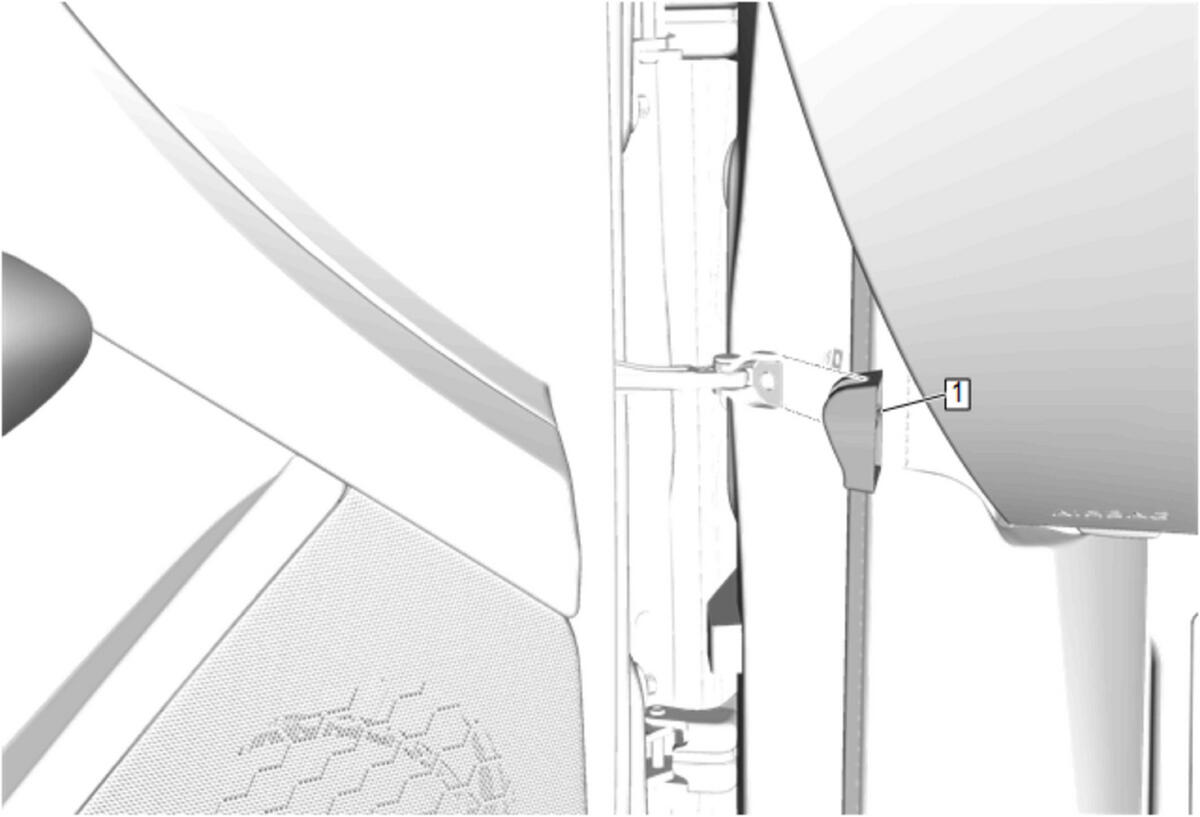

  4. GM5335759Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Cover (1) - Remove - Front Side Door Check Link Cover Replacement

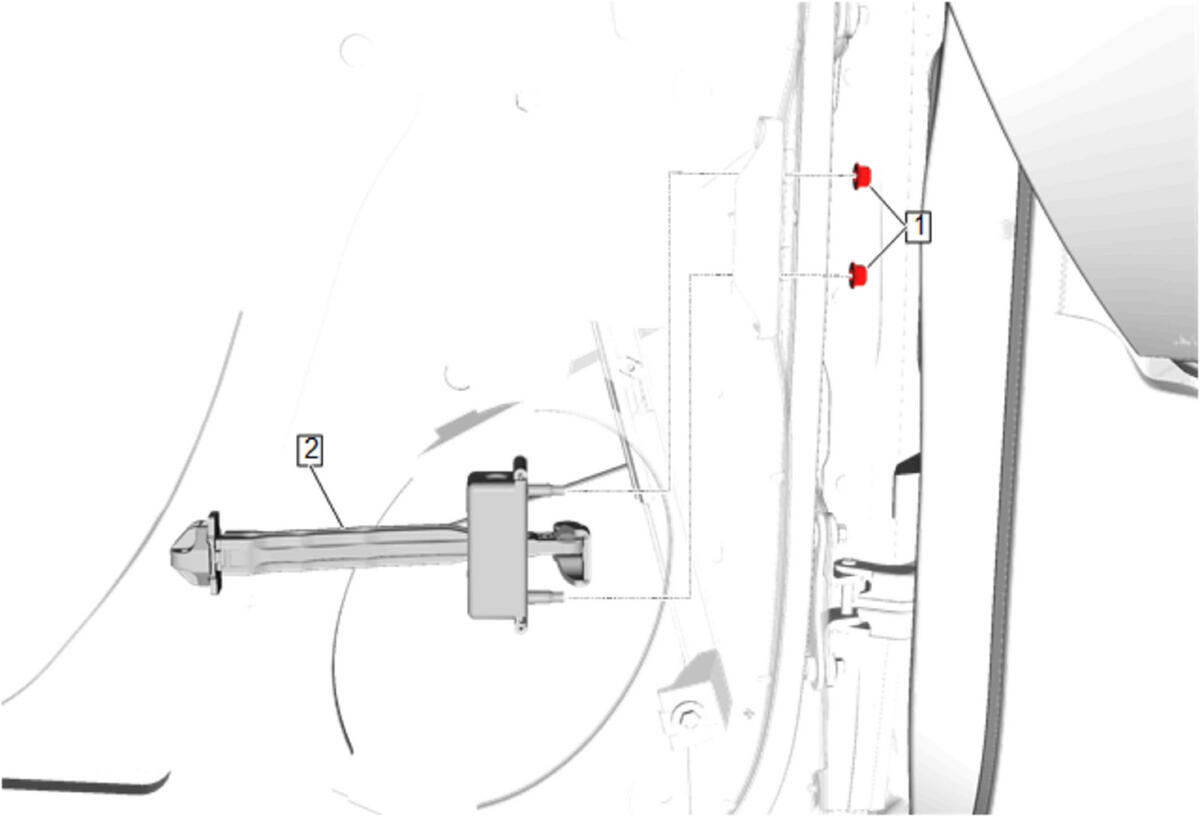

  5. GM5336309Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Nut (1) - Remove [ 2x ]

  6. Remove the front side door check link (2) through the radio front side door speaker hole.
