Installation Procedure

  1. GM4283676

    Instrument Panel Upper Trim Panel (1) - Install

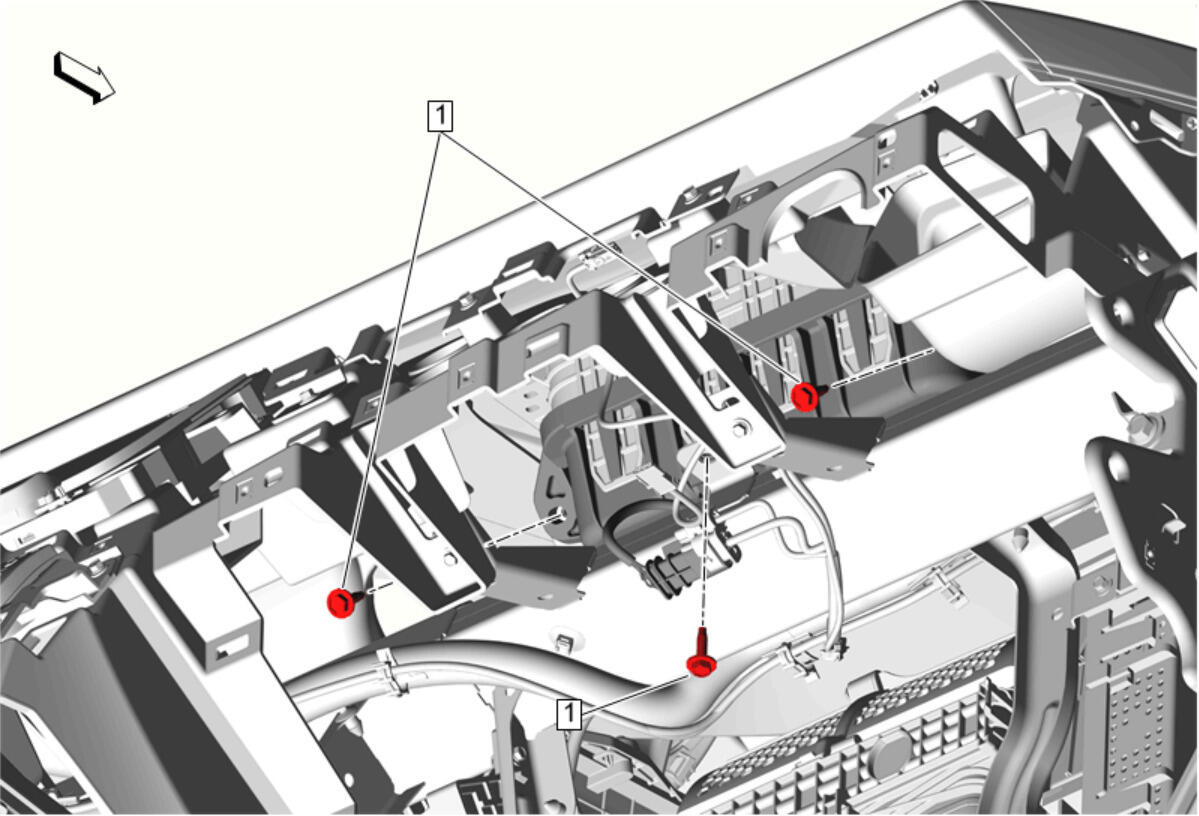

  2. GM4283674
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Airbag Bolt (1) - Install and tighten [ 3x ] 9 N.m (80 lb in)

  3. Connect the electrical connector.

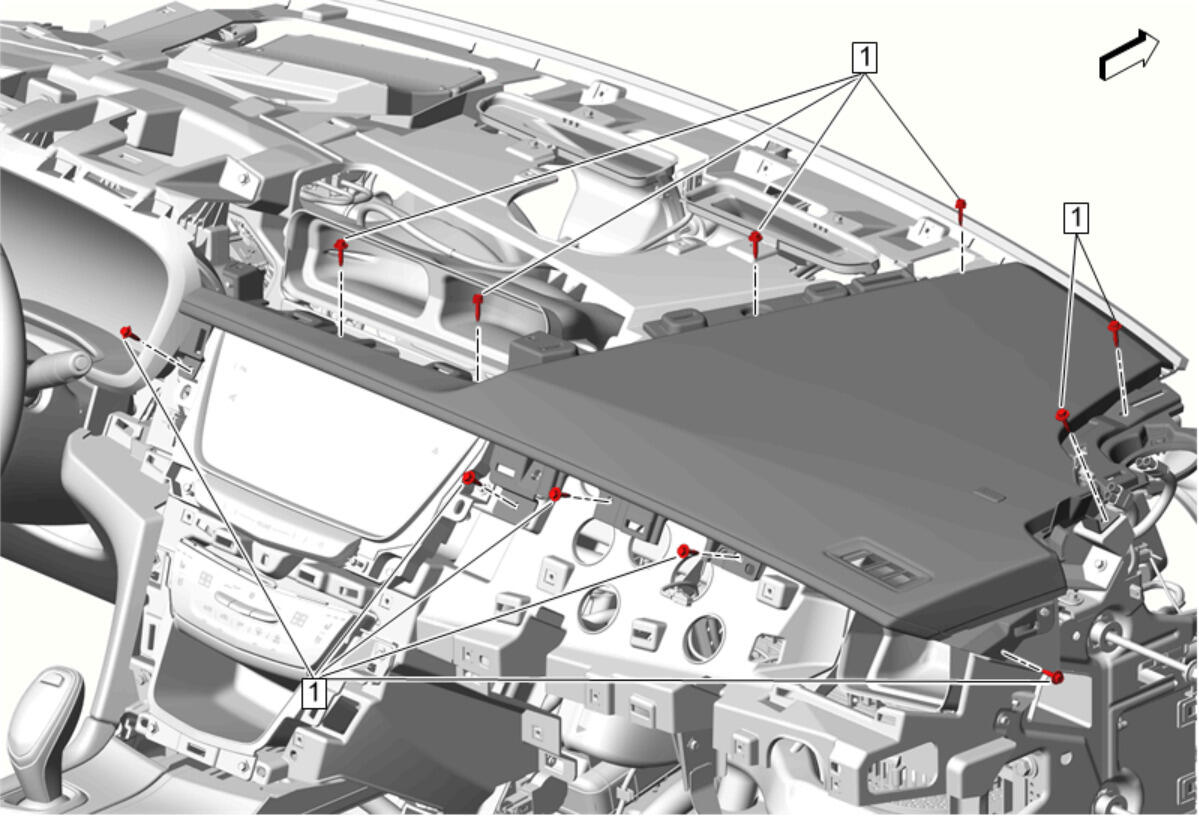

  4. GM4283672

    Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [ 11x ] 2.5 N.m (22 lb in)

  5. GM4282999

    Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement

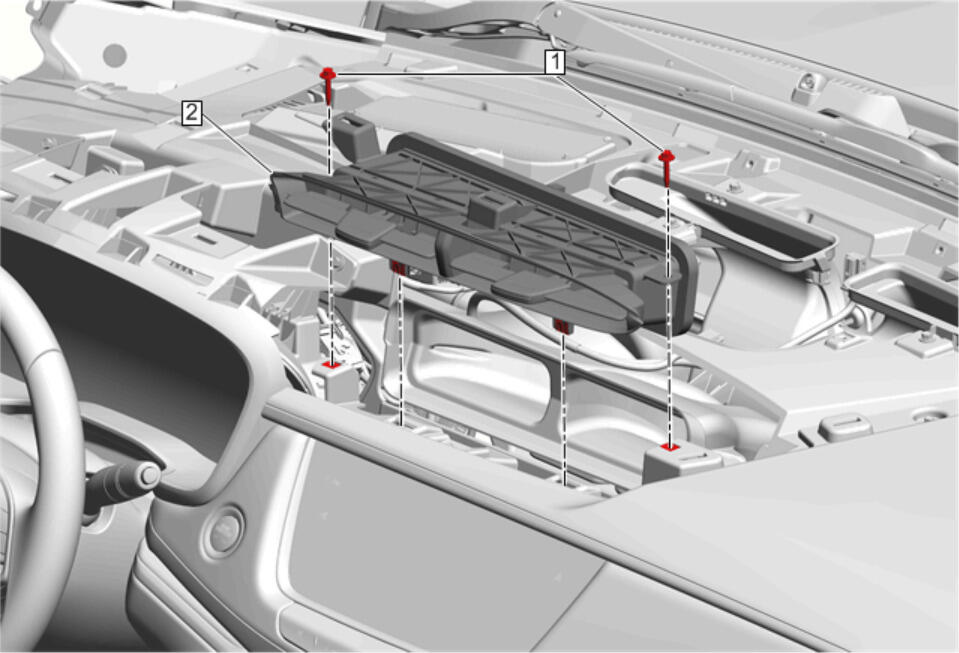

  6. GM4262508

    Instrument Panel Center Air Outlet (2) - Install - Instrument Panel Center Air Outlet Replacement

  7. GM4261116

    {If equipped} Radio Front Speaker (2) - Install - Radio Front Speaker Replacement

  8. GM4261097

    Radio Front Speaker Grille (1) - Install - Radio Front Speaker Grille Replacement

  9. Enable the SIR System. SIR Disabling and Enabling
