Installation Procedure

  1. With the aid of an assistant, position the instrument panel tie bar into the vehicle.
  2. Install the instrument panel wiring harness to the position noted in the removal procedure.
  3. GM4310267
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 2x ] 22 N.m (16 lb ft)

  4. GM4310266

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten [ 4x ] 9 N.m (80 lb in)

  5. GM4310265

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 2x ] 22 N.m (16 lb ft)

  6. GM4310264

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 2x ] 22 N.m (16 lb ft)

  7. GM4310263

    Instrument Panel Tie Bar Bolt (1) - Install and tighten 22 N.m (16 lb ft)

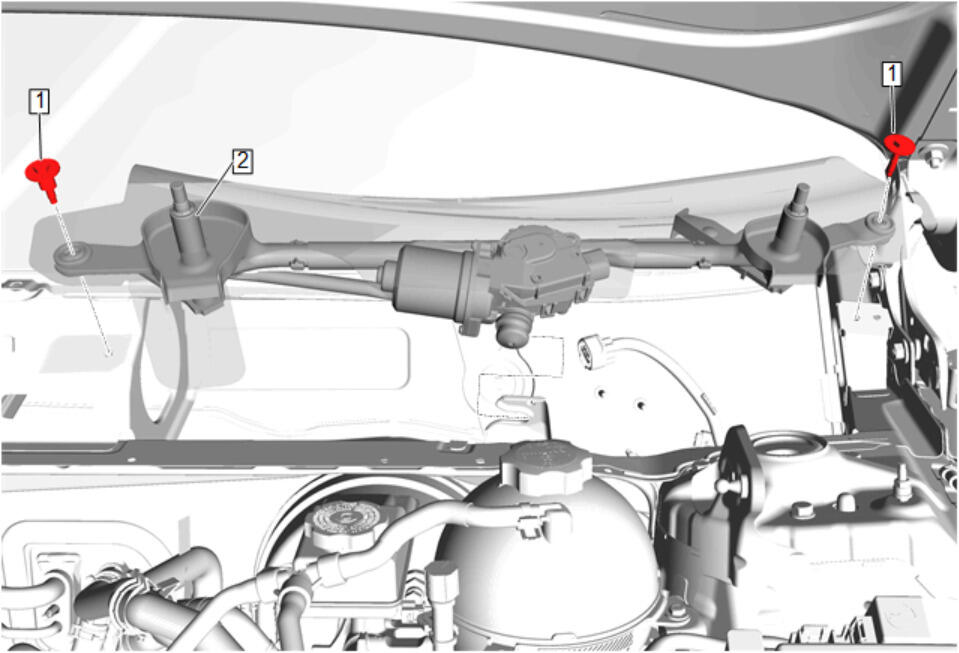

  8. GM5206442

    Windshield Wiper Transmission (2) - Install - Windshield Wiper Transmission Replacement

  9. GM4285109

    Brake Pedal Bracket Bolt (1) - Install and tighten [ 2x ] 15 N.m (11 lb ft)

  10. GM4285094

    Brake Pedal Bracket Bolt (1) - Install and tighten 15 N.m (11 lb ft)

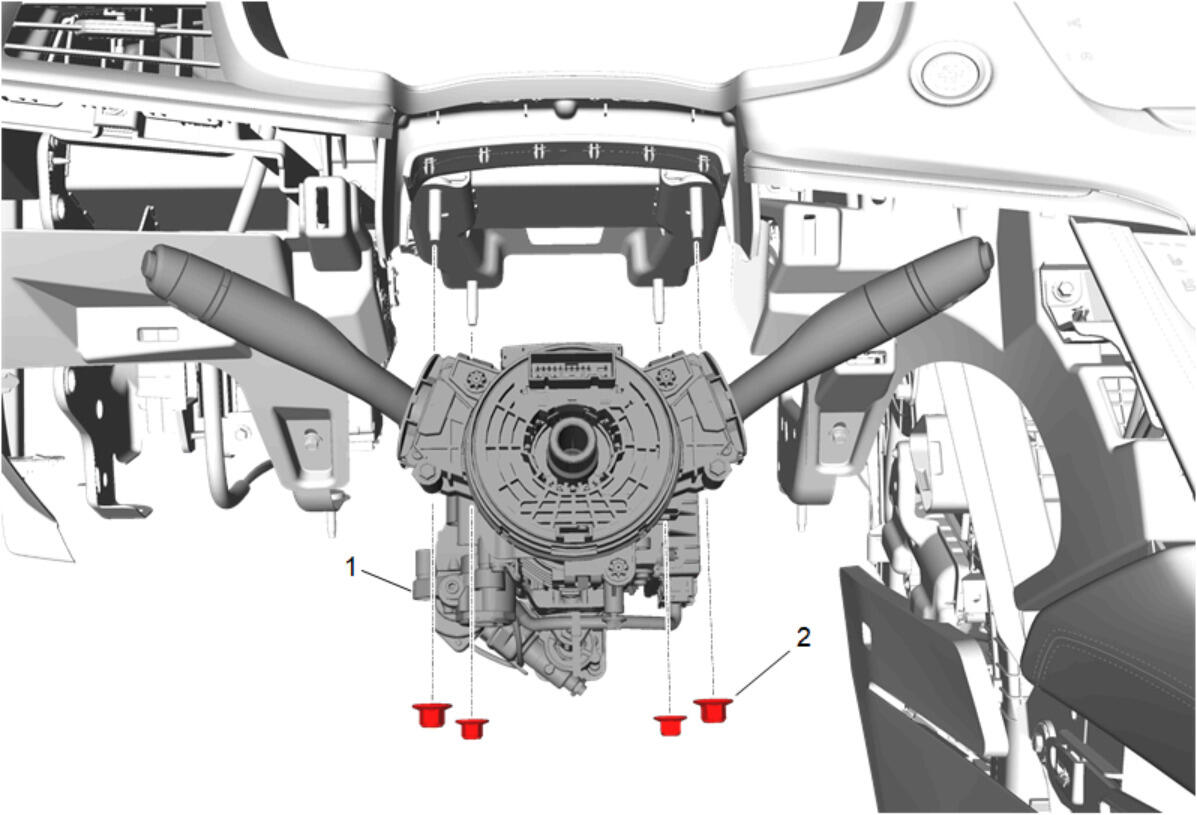

  11. GM5238418

    Steering Column (1) - Install - Steering Column Replacement (N37) , or Steering Column Replacement (N38)

  12. GM5236158

    Radio Bracket (3) - Install - Radio Bracket Replacement

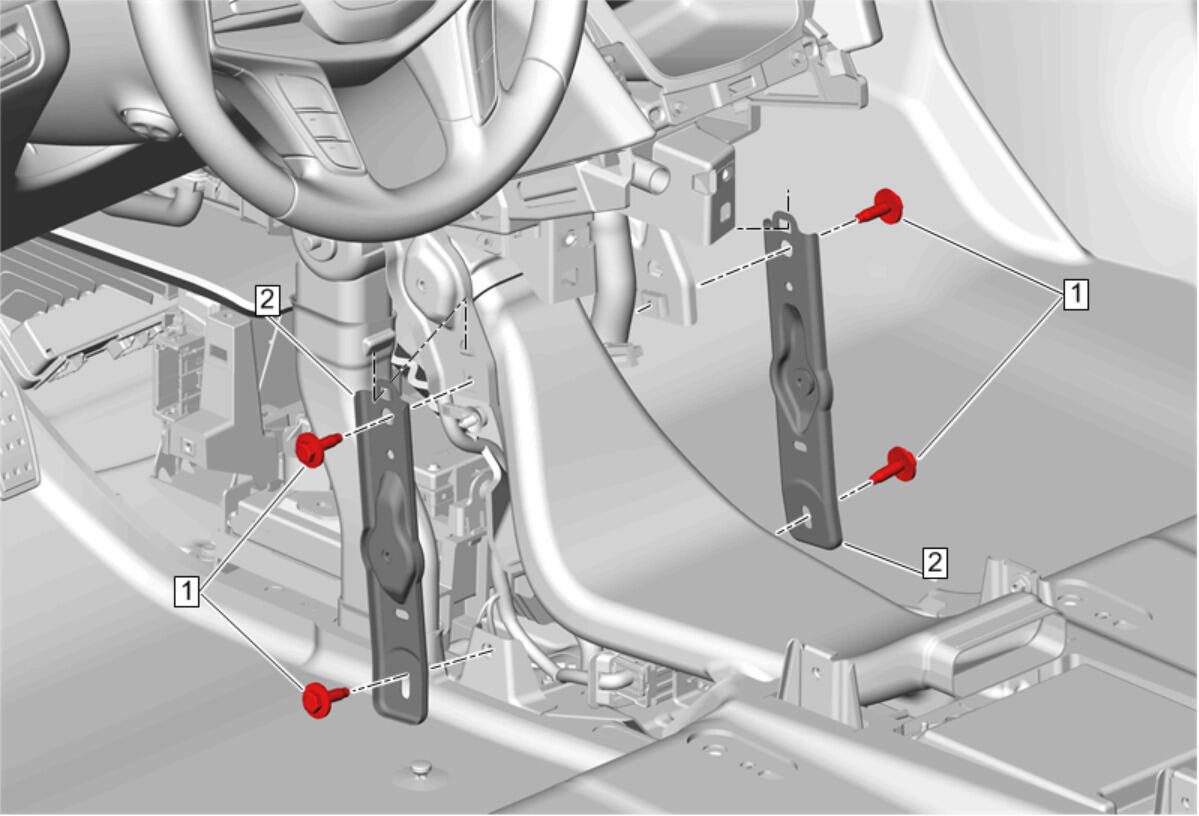

  13. GM4298464

    Instrument Panel Tie Bar Brace (2) - Install - Instrument Panel Tie Bar Brace Replacement

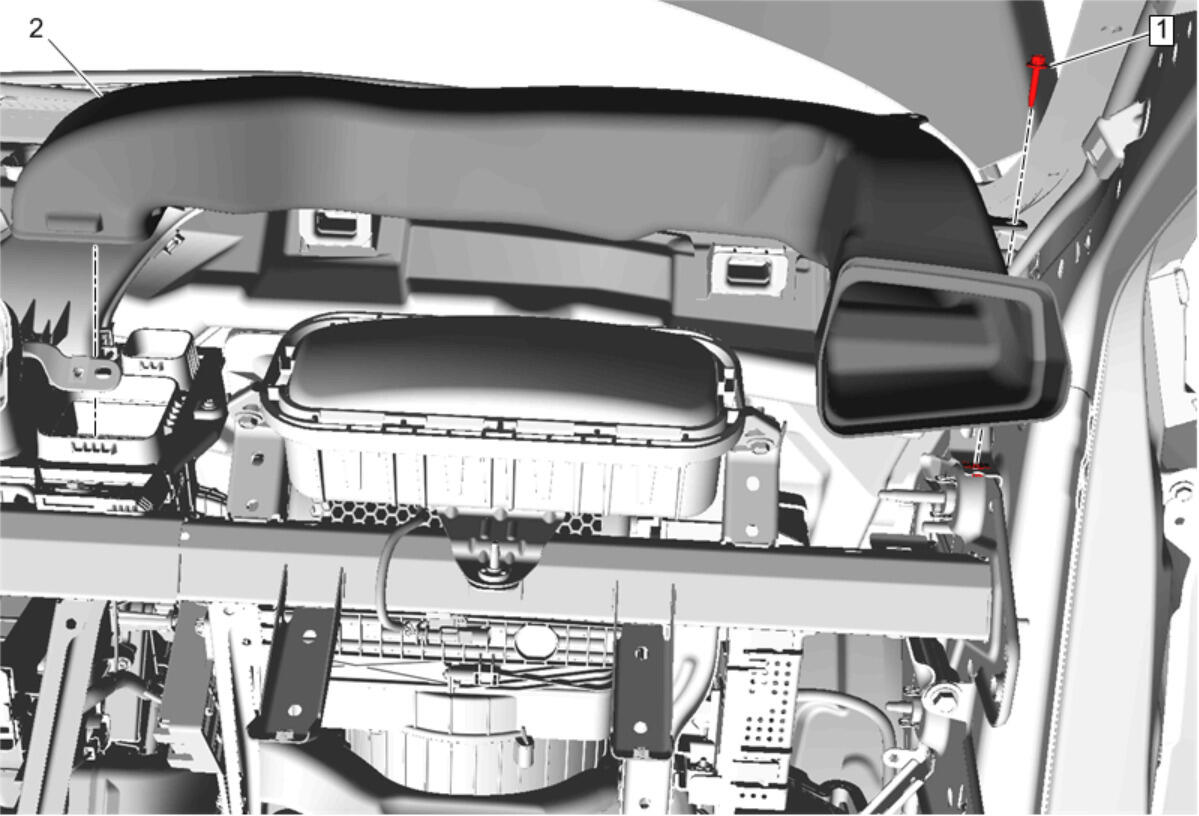

  14. GM4296665

    Instrument Panel Outer Air Outlet Duct - Right Side (2) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Right Side

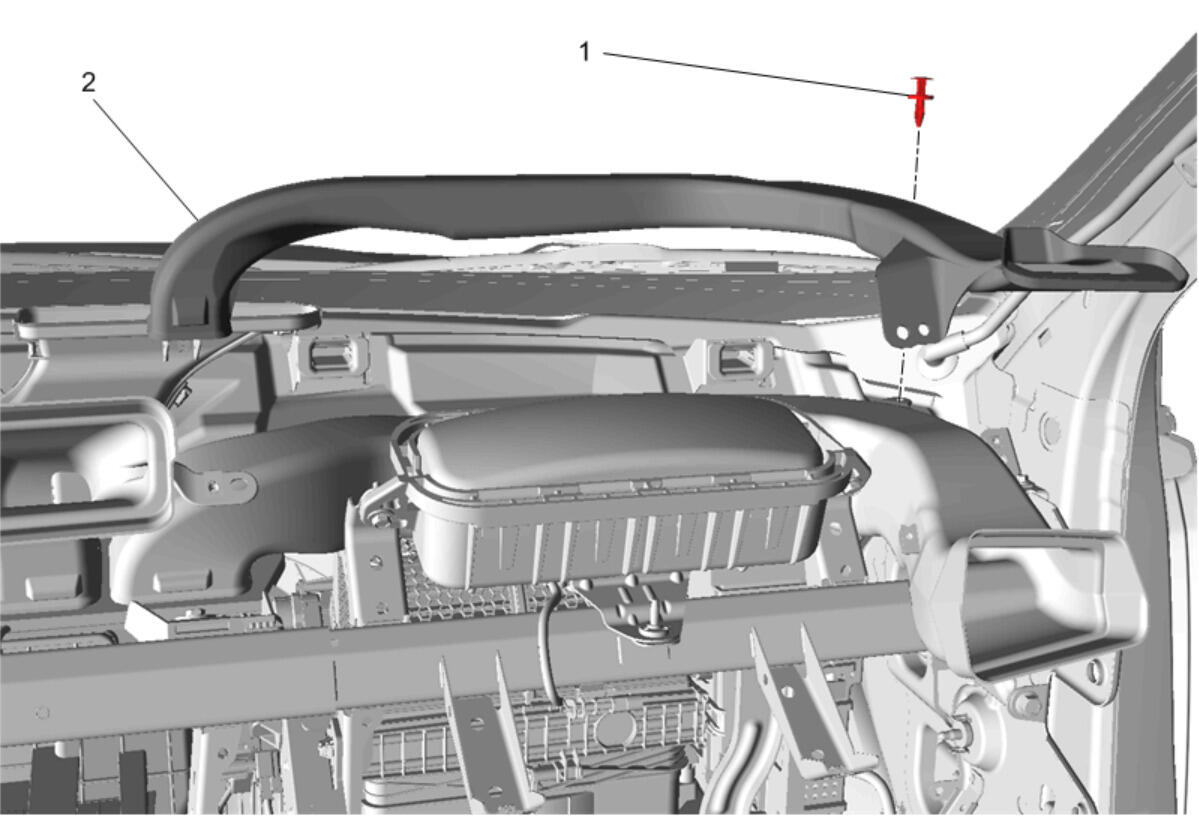

  15. GM4296391

    Side Window Defogger Outlet Duct - Right Side (2) - Install - Side Window Defogger Outlet Duct Replacement - Right Side

  16. GM4280366

    Instrument Panel Knee Bolster Deflector (2) - Install - Instrument Panel Knee Bolster Deflector Replacement

  17. GM4298128

    {If equipped} Instrument Panel Accessory Bracket (2) - Install - Instrument Panel Accessory Bracket Replacement

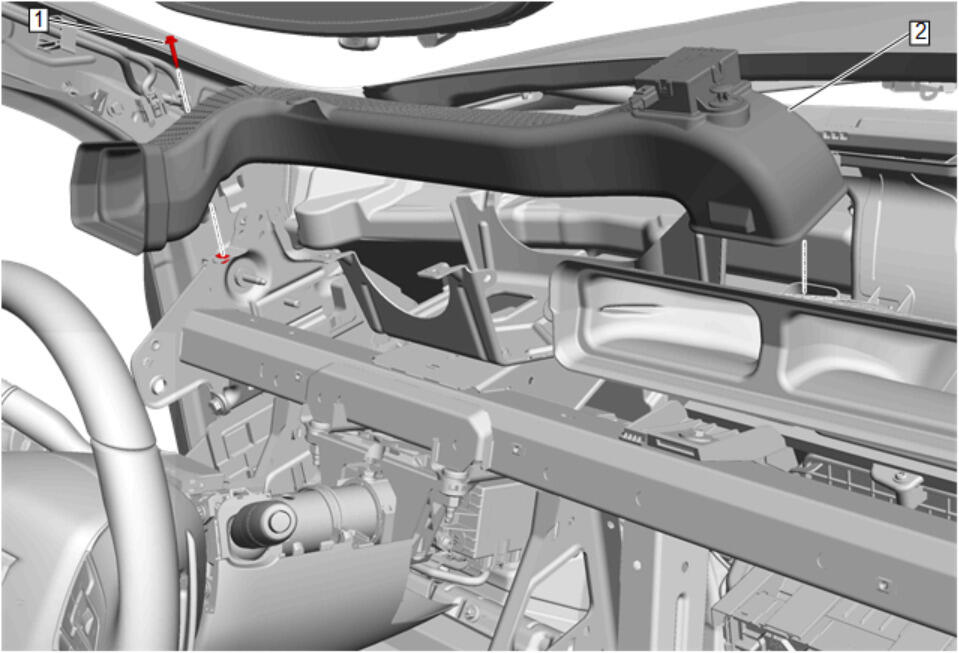

  18. GM5236184

    Instrument Panel Outer Air Outlet Duct - Left Side (2) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Left Side

  19. GM4296543

    Side Window Defogger Outlet Duct - Left Side (2) - Install - Side Window Defogger Outlet Duct Replacement - Left Side

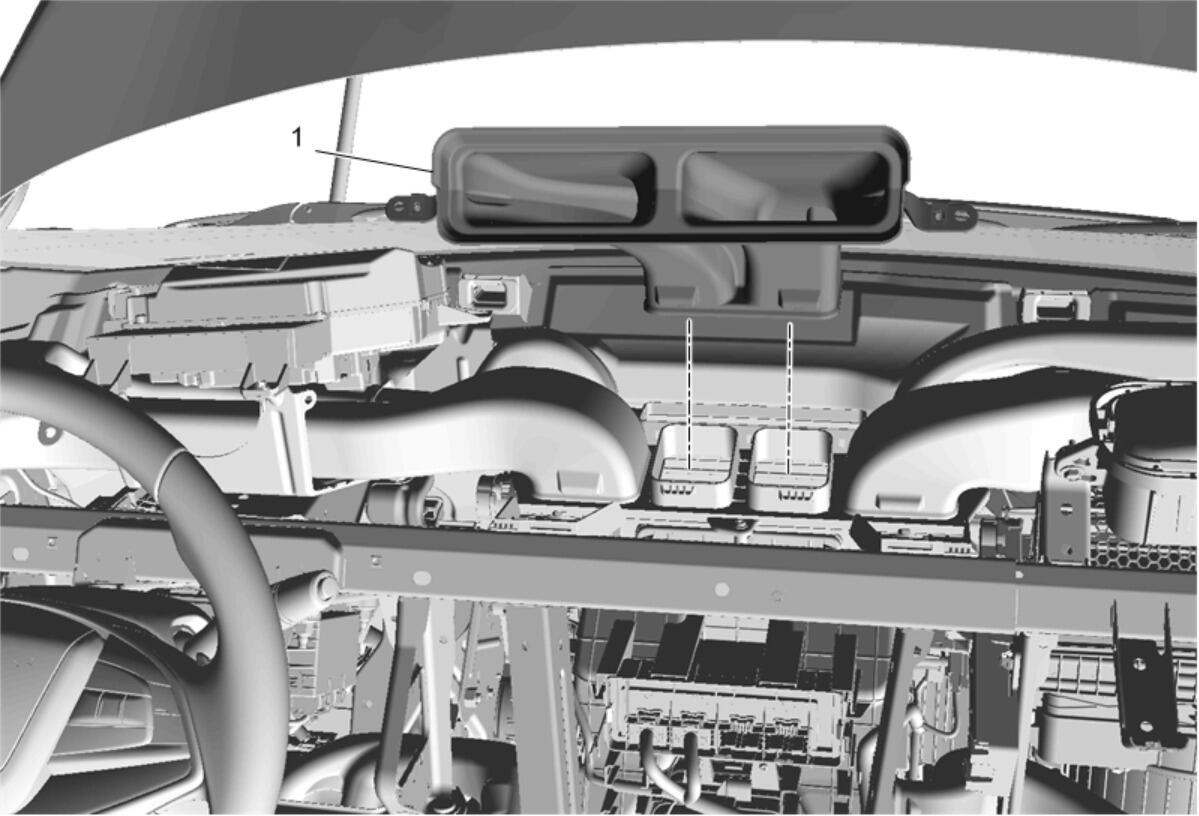

  20. GM4296625

    Instrument Panel Air Outlet Duct (1) - Install - Instrument Panel Air Outlet Duct Replacement

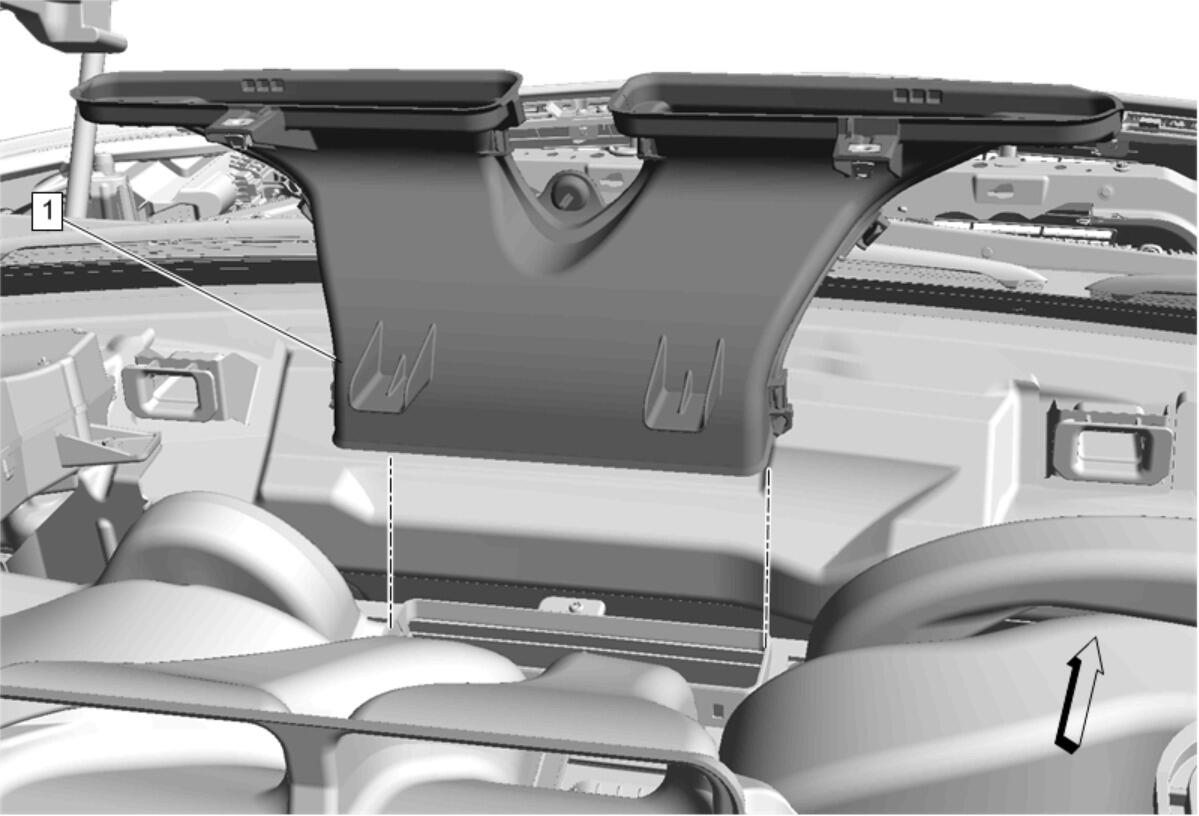

  21. GM4296298

    Windshield Defroster Outlet Duct (1) - Install - Windshield Defroster Outlet Duct Replacement

  22. GM4298039

    {If equipped} Head-Up Display (2) - Install - Head-Up Display Replacement

  23. GM4278478

    Front Side Door (4) - Install - Front Side Door Replacement
