Removal Procedure

  1. GM4261403

    Instrument Panel Insulator (2) - Remove - Instrument Panel Insulator Replacement - Left Side

  2. GM4297404

    Instrument Panel Lower Airbag - Driver Side (2) - Remove - Instrument Panel Lower Airbag Replacement - Driver Side

  3. GM4279822

    Instrument Panel Knee Bolster Bolt (3) - Remove - Instrument Panel Knee Bolster Replacement

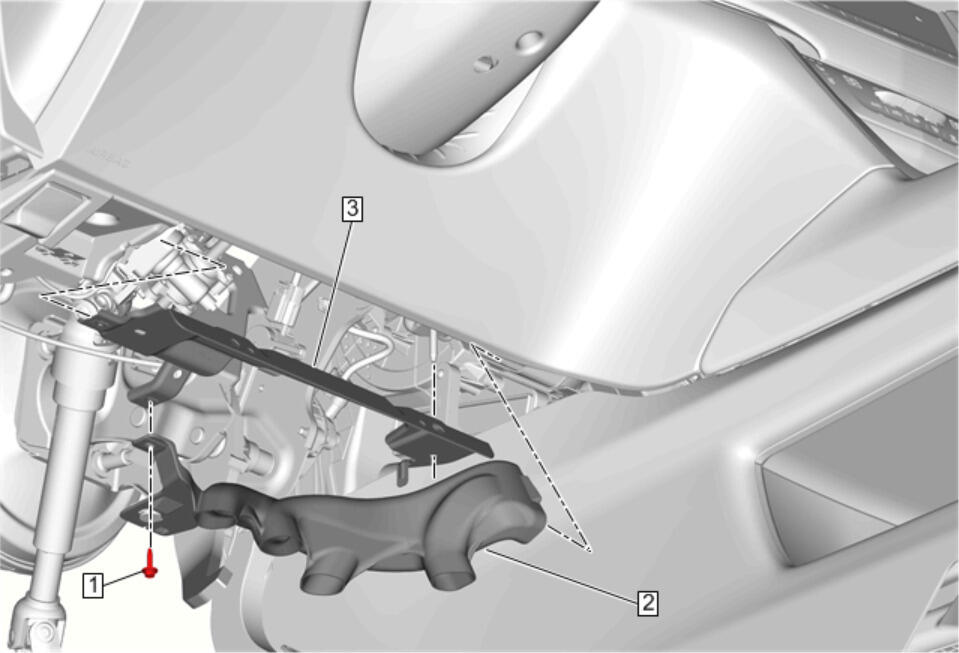

  4. GM4280366

    Floor Front Air Outlet Duct Bolt (1) - Remove

  5. Floor Front Air Outlet Duct - Left Side (2) - Remove
  6. Disconnect the electrical connector.
  7. Instrument Panel Knee Bolster Deflector (3) - Remove
