Removal Procedure

  1. GM4291288

    Front Floor Console (1) - Remove - Front Floor Console Replacement

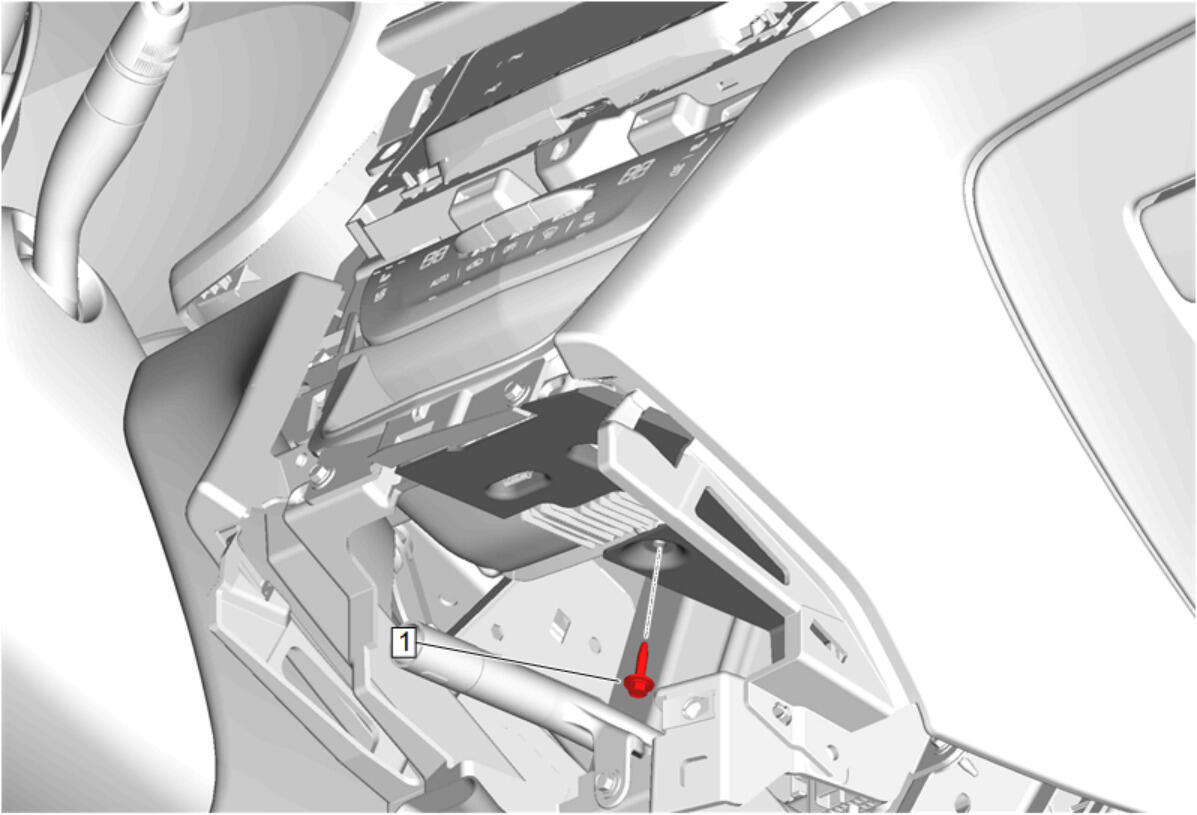

  2. GM5218185

    Instrument Panel Compartment Bracket Bolt (1) - Remove

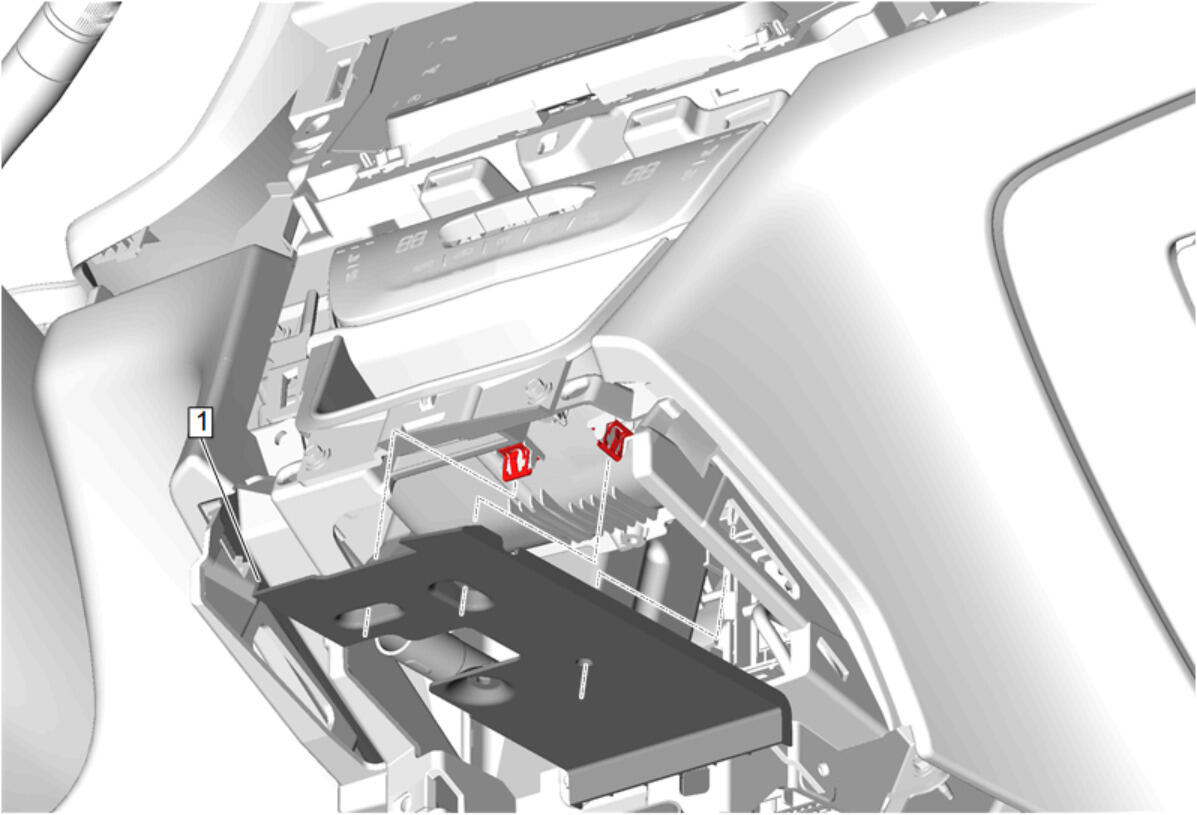

  3. GM5218187
    NOTE:

    Use a plastic trim tool if necessary.

    Instrument Panel Compartment Bracket (1) - Remove
