Installation Procedure

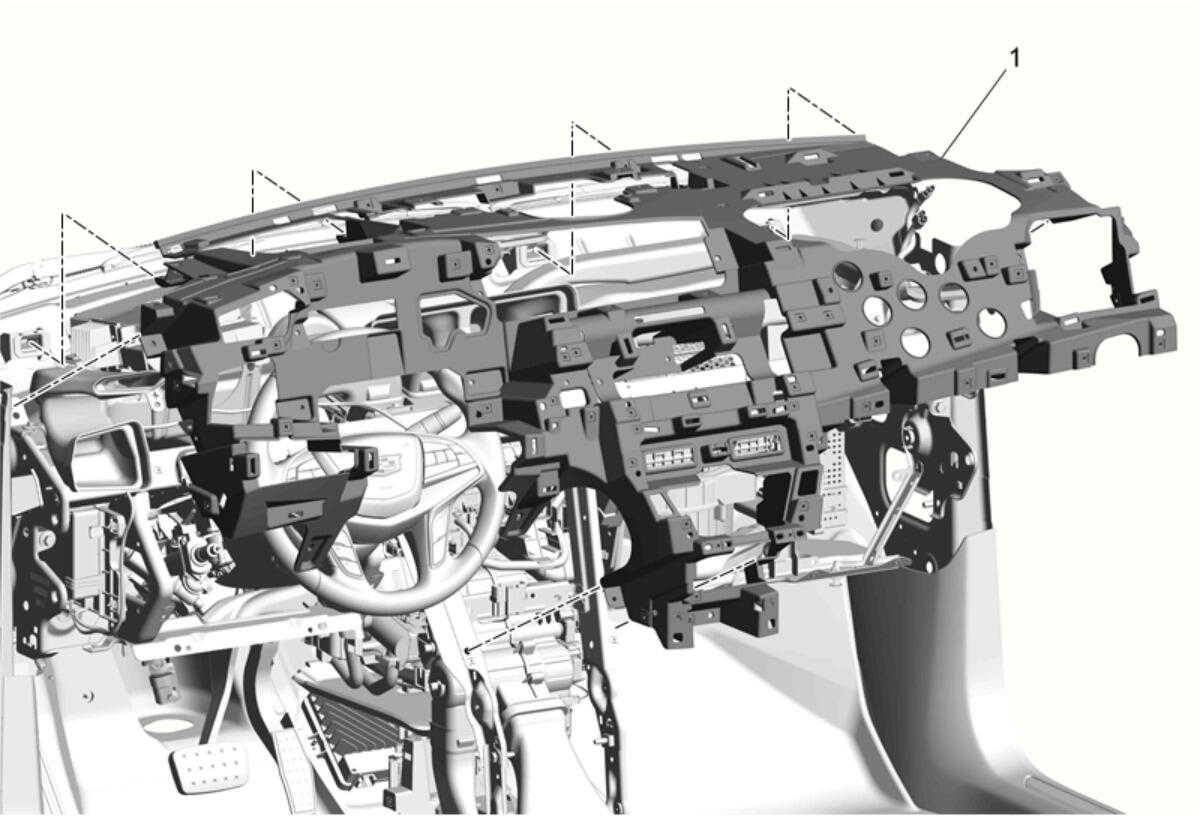

  1. GM4297660

    With the aid of an assistant, position the instrument carrier in the vehicle. (1)

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier.

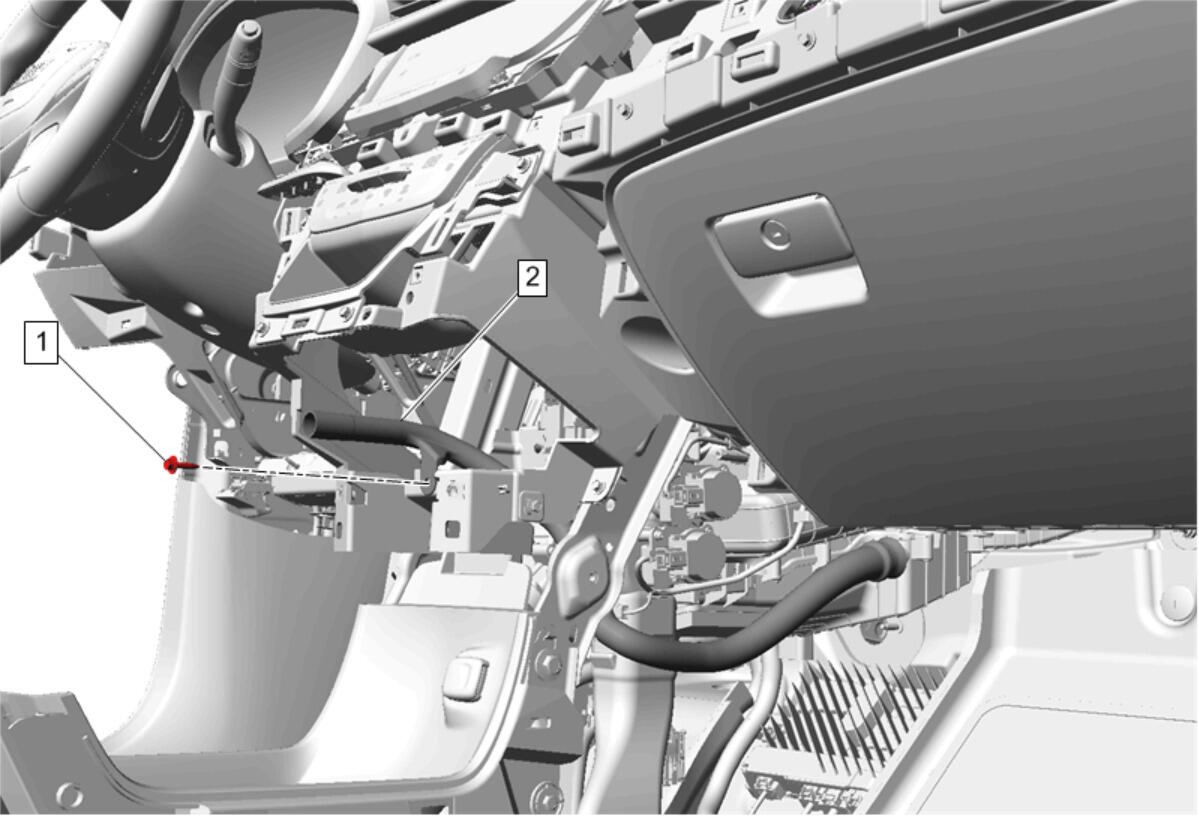

  3. GM4291629

    Radio Cooling Duct Bolt (1) - Install - Radio Cooling Duct Replacement (Front Console Phone Charger Front) , or Radio Cooling Duct Replacement (Console Phone Charger Rear)

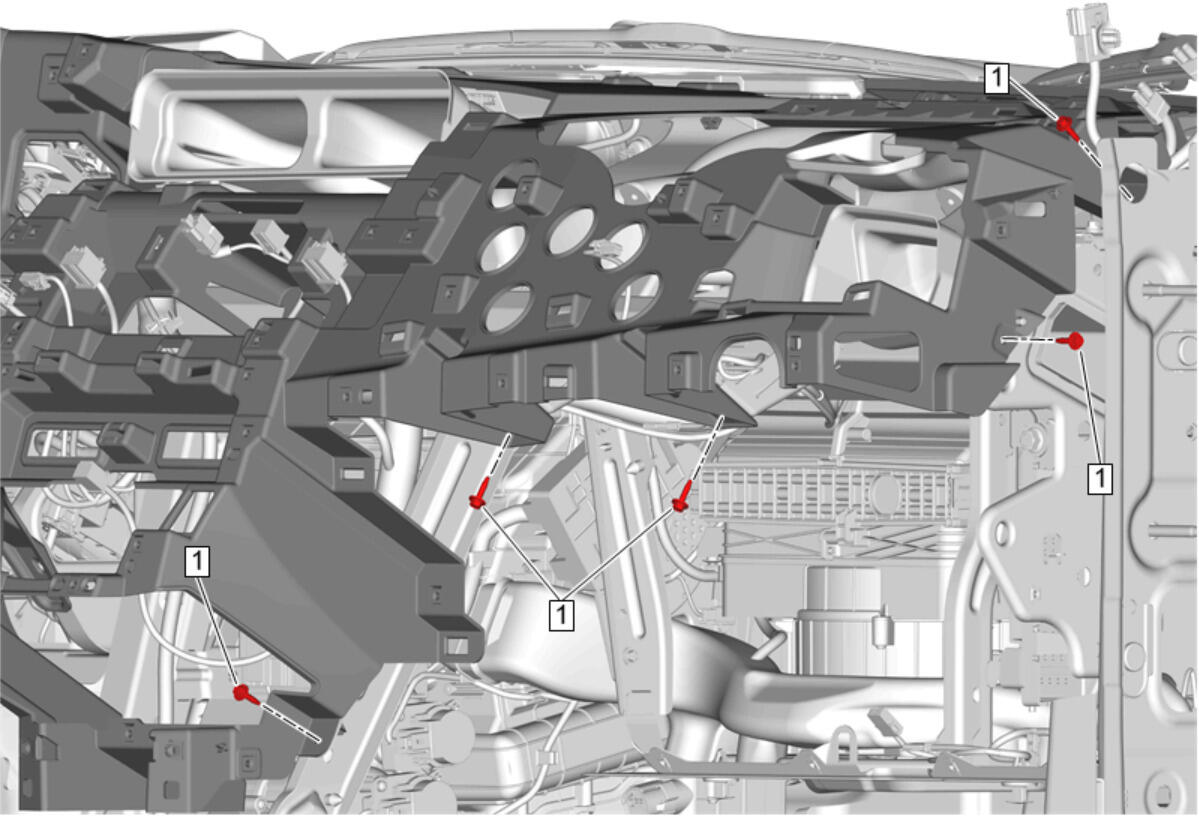

  4. GM4297659
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Carrier Bolt (1) - Install and tighten [ 5x ] 2.5 N.m (22 lb in)

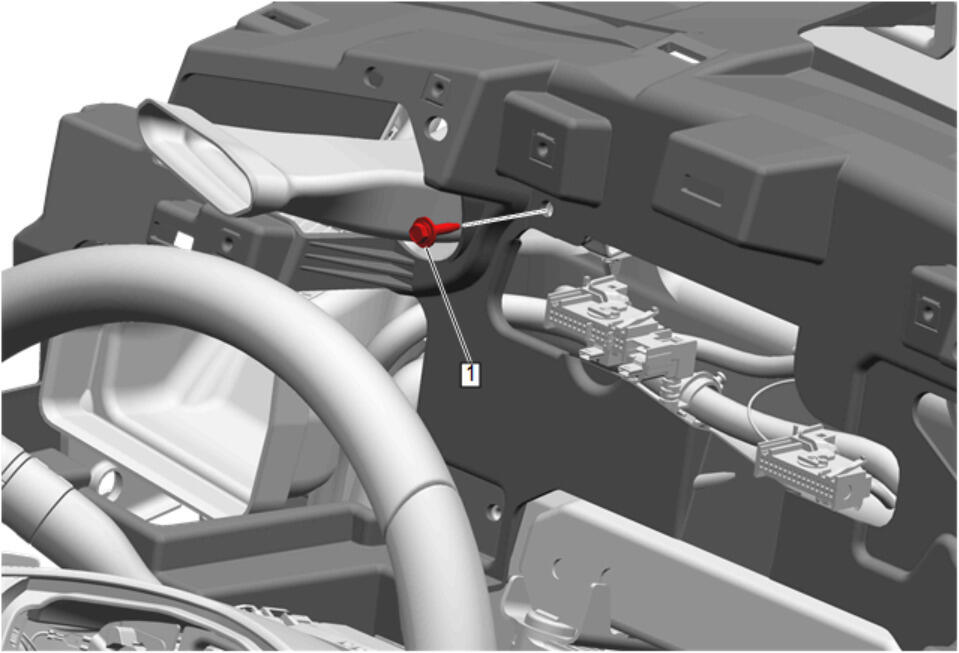

  5. GM5198214

    Instrument Panel Carrier Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

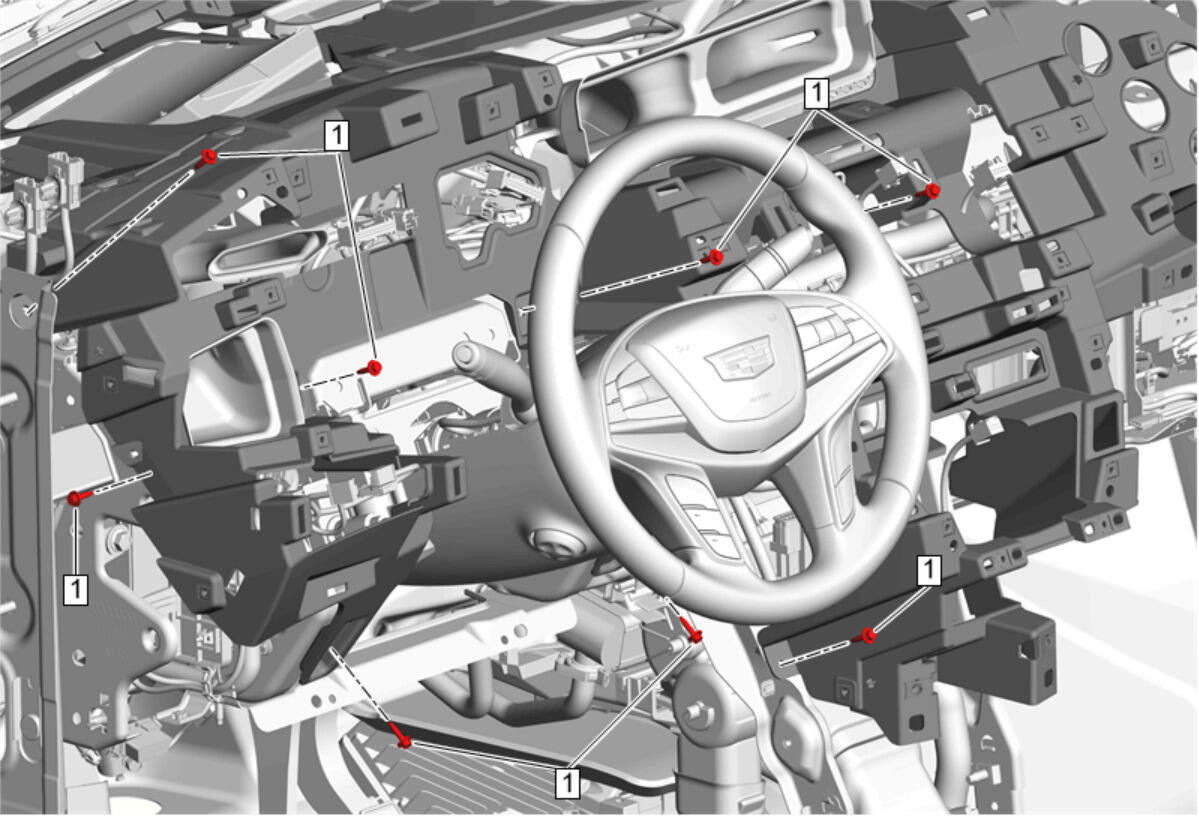

  6. GM4297658

    Instrument Panel Carrier Bolt (1) - Install and tighten [ 8x ] 2.5 N.m (22 lb in)

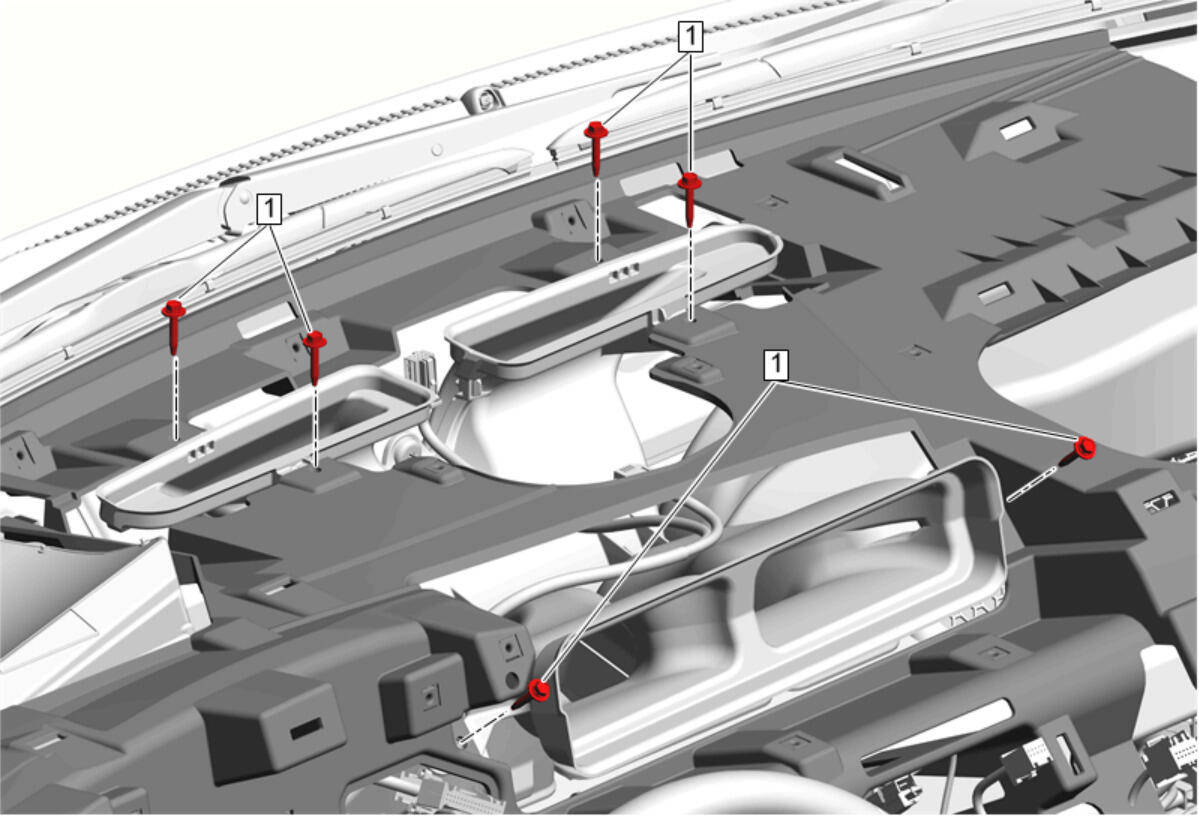

  7. GM4297657

    Instrument Panel Outer Air Outlet Duct Bolt (1) - Install and tighten [ 6x ] 2.5 N.m (22 lb in)

  8. GM4285128

    Radio Control Assembly (2) - Install - Radio Control Assembly Replacement

  9. GM4290013

    Heater and Air Conditioning User Interface Control (1) - Install - Heater and Air Conditioning User Interface Control Replacement

  10. GM4284620

    Instrument Panel Center Compartment (2) - Install - Instrument Panel Center Compartment Replacement

  11. GM4277166

    Instrument Cluster (2) - Install - Instrument Cluster Replacement

  12. GM4283676

    Instrument Panel Upper Trim Panel (1) - Install

  13. GM4283674

    Instrument Panel Airbag Bolt (1) - Install and tighten [ 3x ] 9 N.m (80 lb in)

  14. Connect the electrical connector.
  15. GM4283672

    Instrument Panel Upper Trim Pad Bolt (1) - Install and tighten [ 11x ] 2.5 N.m (22 lb in)

  16. GM4262508

    Instrument Panel Center Air Outlet (2) - Install - Instrument Panel Center Air Outlet Replacement

  17. GM4261116

    {If equipped} Radio Front Speaker (2) - Install - Radio Front Speaker Replacement

  18. GM4261097

    Radio Front Speaker Grille (1) - Install - Radio Front Speaker Grille Replacement

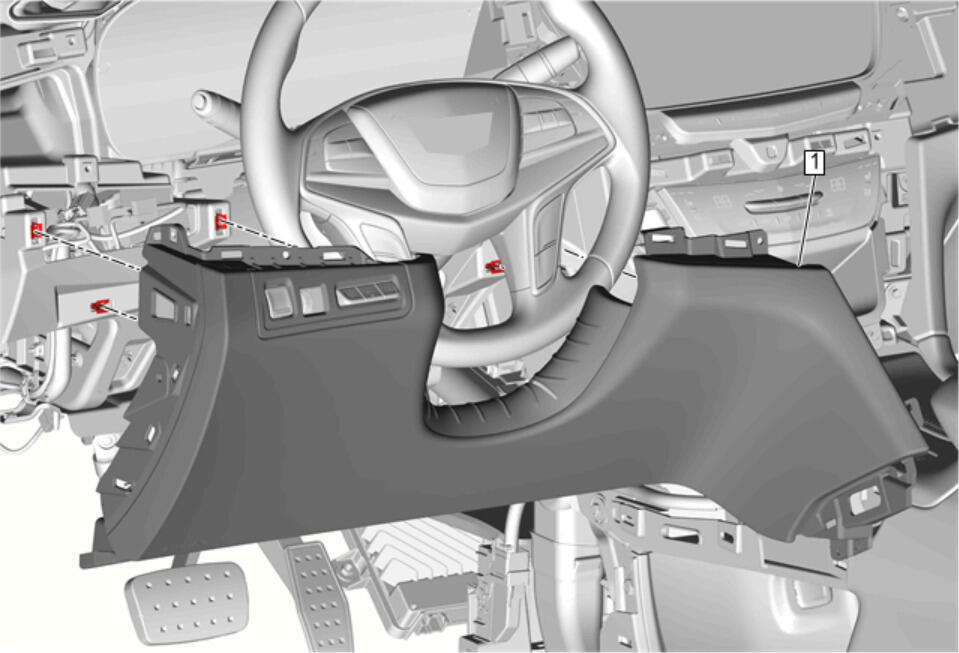

  19. GM4279825

    Connect all electrical connectors.

  20. Instrument Panel Knee Bolster (1) - Install

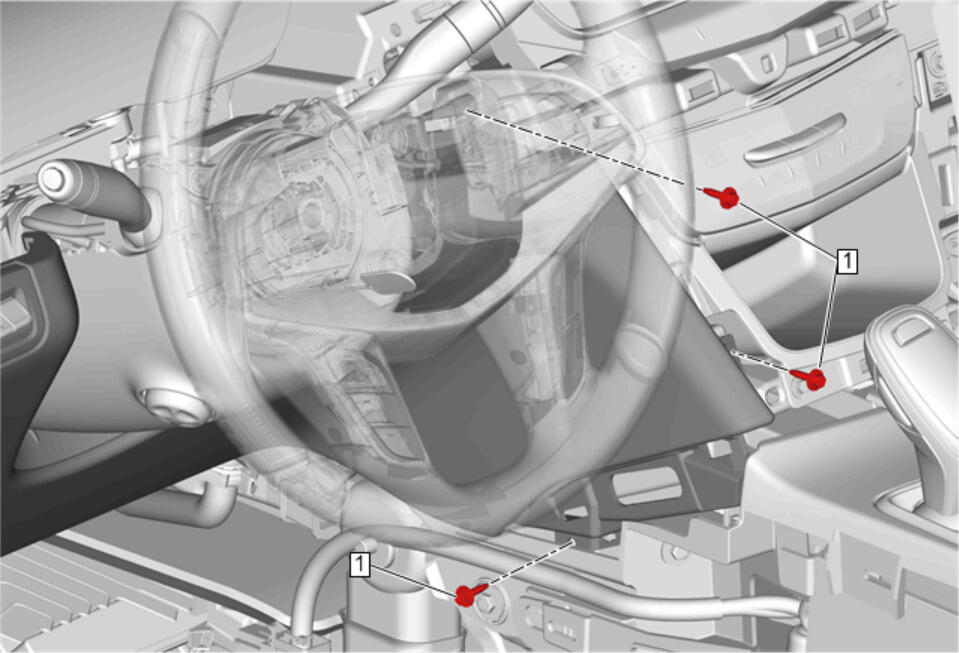

  21. GM4279824

    Instrument Panel Knee Bolster Bolt (1) - Install and tighten [ 3x ] 2.5 N.m (22 lb in)

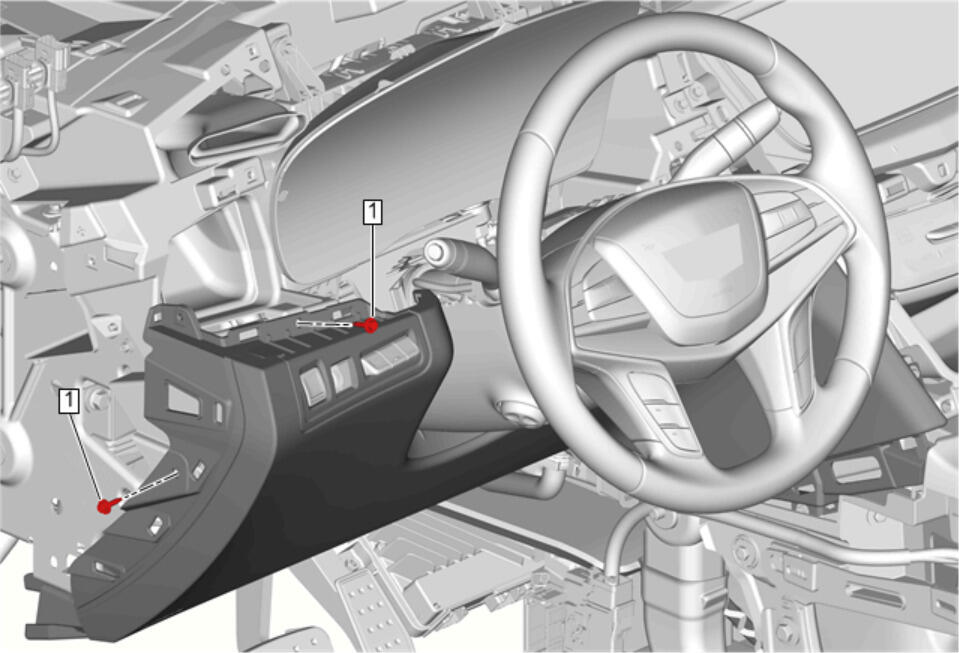

  22. GM4279823

    Instrument Panel Knee Bolster Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)

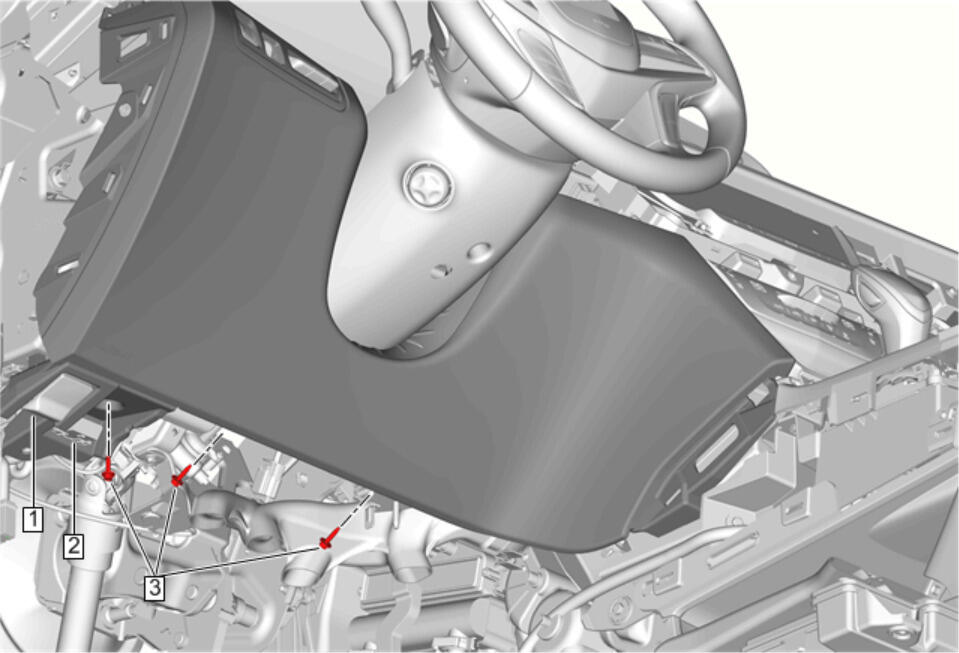

  23. GM4279822

    Instrument Panel Knee Bolster Bolt (3) - Install and tighten [ 3x ] 2.5 N.m (22 lb in)

  24. Connect the data link connector. (2)
  25. Hood Primary Latch Release Cable Handle (1) - Install
  26. GM4277130

    Instrument Panel Trim Plate Applique - Left Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Left Side

  27. GM4276977

    Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side

  28. GM4276915

    Instrument Panel Cluster Trim Plate (2) - Install - Instrument Panel Cluster Trim Plate Replacement

  29. GM4276414

    Steering Column Upper Trim Cover (2) - Install - Steering Column Upper Trim Cover Replacement

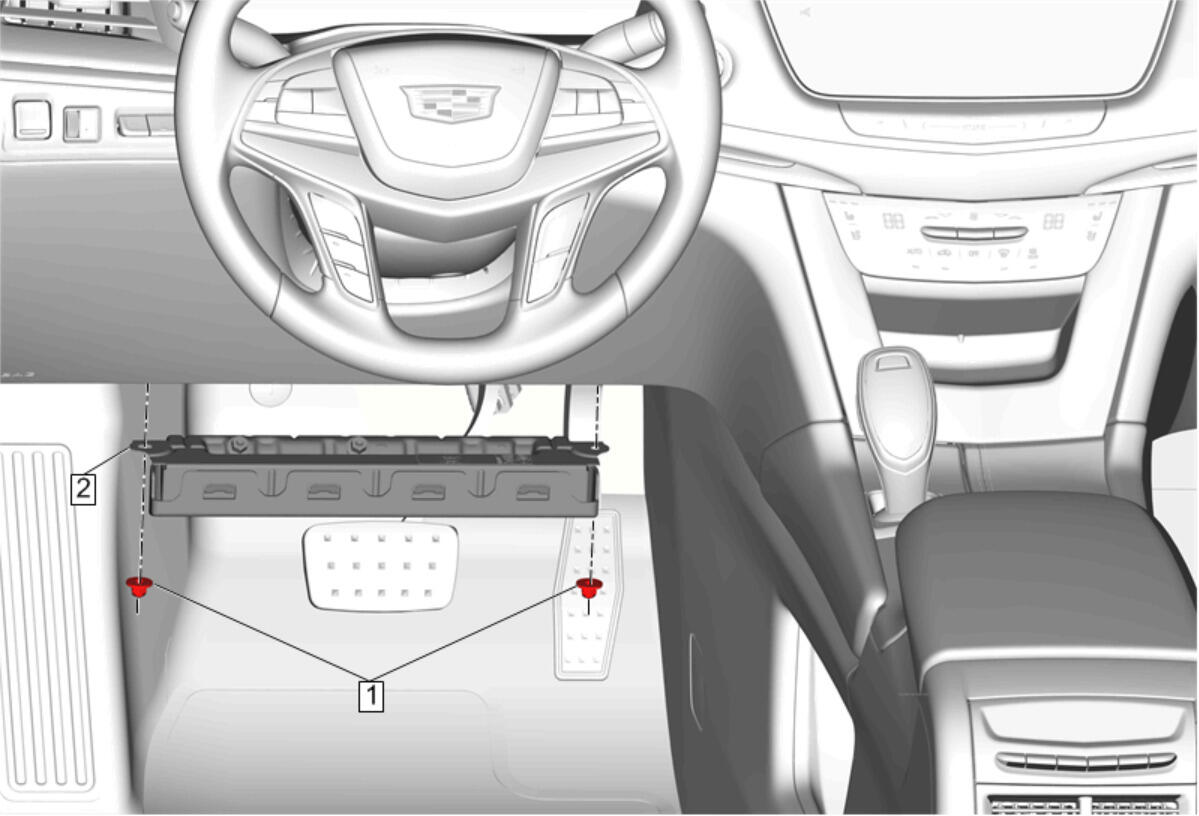

  30. GM4297404

    Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side

  31. GM4261403

    Instrument Panel Insulator - Left Side (2) - Install - Instrument Panel Insulator Replacement - Left Side

  32. GM4295198

    Body Hinge Pillar Garnish Molding - Left Side (1) - Install Body Hinge Pillar Garnish Molding Replacement

  33. GM4262048

    Instrument Panel Instrument Cluster Hood (2) - Install - Instrument Panel Instrument Cluster Hood Replacement

  34. GM4260880

    Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement

  35. GM4260732

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement

  36. GM4282999

    Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement

  37. GM4281859

    Instrument Panel Lower Trim Panel (2) - Install - Instrument Panel Lower Trim Panel Replacement

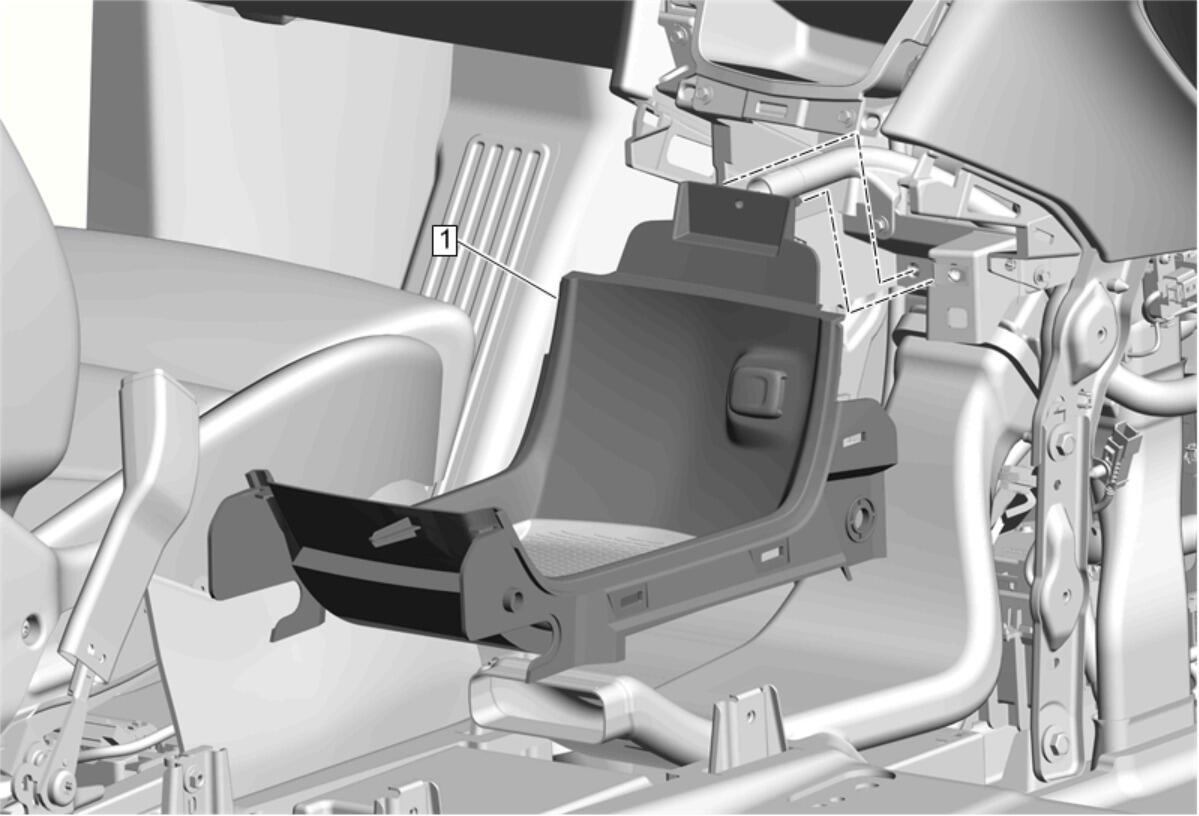

  38. GM4292305

    Front Floor Console Stowage Tray (1) - Install

  39. Connect the electrical connectors.

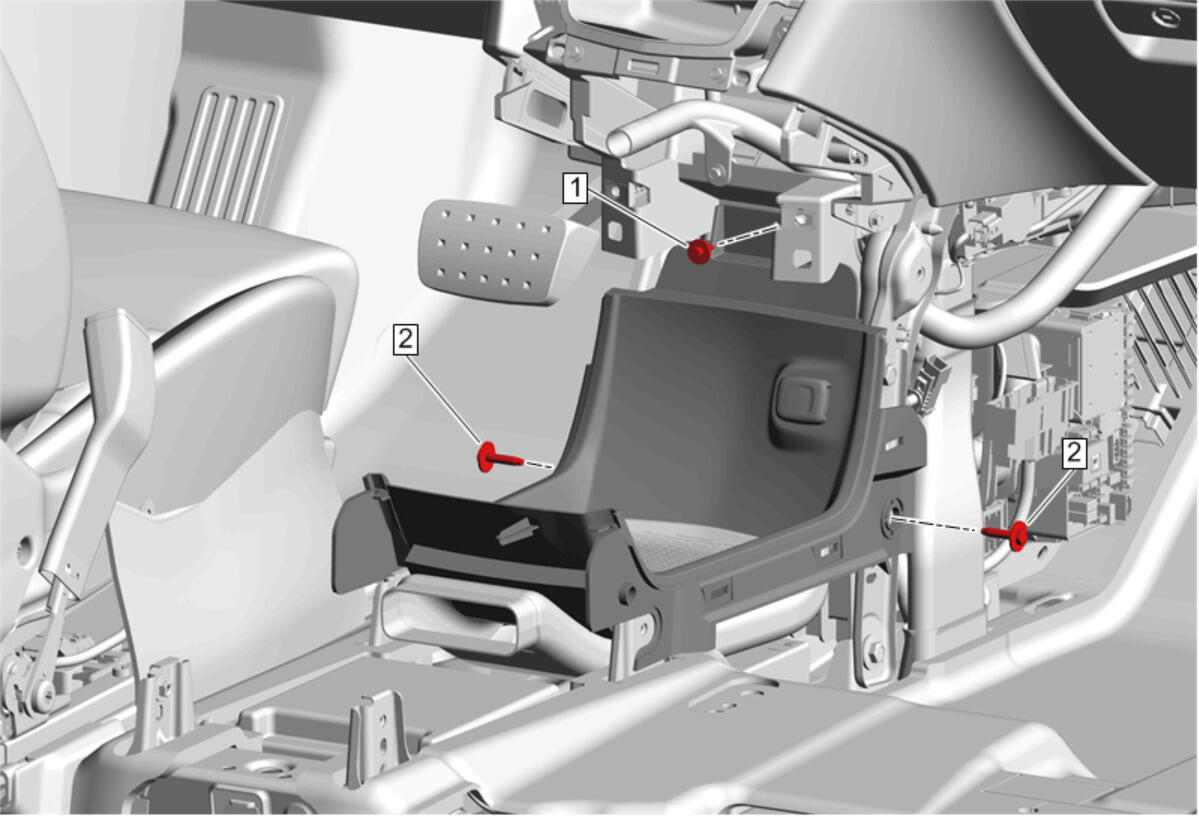

  40. GM4292304

    Front Floor Console Bolt (2) - Install and tighten [ 2x ] 9 N.m (80 lb in)

  41. Front Floor Console Storage Tray Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
  42. GM4291288

    With the aid of an assistant, install the front floor console assembly (1) into the vehicle.

  43. Carefully guide the floor console holder end into the instrument panel assembly and line up the pin on the stowage tray.
  44. Connect the electrical connectors.
  45. GM4291287

    Front Floor Console Bolt (2) - Install and tighten [ 4x ] 9 N.m (80 lb in)

  46. Front Floor Console Bolt Access Hole Cover (1) - Install
  47. GM4291286

    Front Floor Console Bolt (2) - Install and tighten [ 4x ] 9 N.m (80 lb in)

  48. Front Floor Console Bolt Access Hole Cover (1) - Install
  49. GM4277296

    Instrument Panel Lower Center Trim Panel (2) - Install - Instrument Panel Lower Center Trim Panel Replacement

  50. GM4279414

    Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side

  51. GM5162610

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
