Removal Procedure

  1. GM4298039

    Head-Up Display (2) - Remove - Head-Up Display Replacement

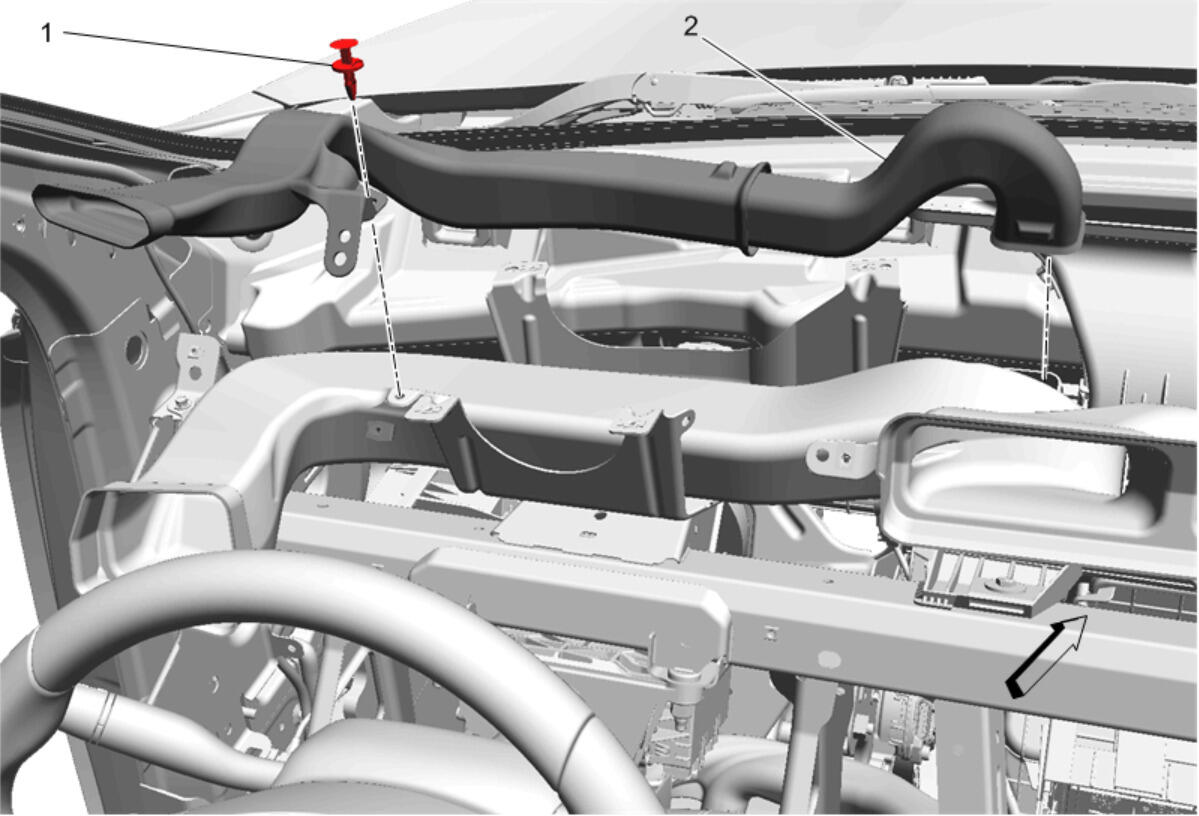

  2. GM4296543

    Side Window Defogger Outlet Duct - Left Side (2) - Remove - Side Window Defogger Outlet Duct Replacement - Left Side

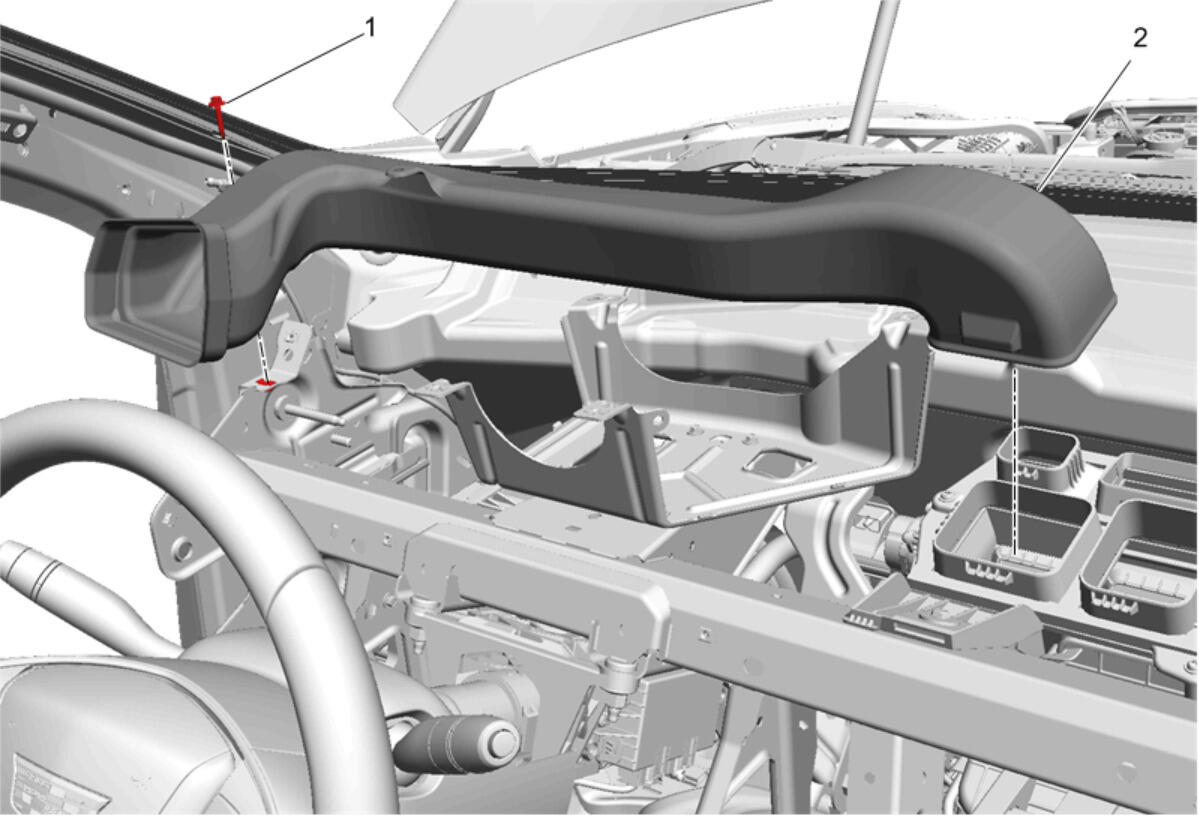

  3. GM4296669

    Instrument Panel Outer Air Outlet Duct - Left Side (2) - Remove - Instrument Panel Outer Air Outlet Duct Replacement - Left Side

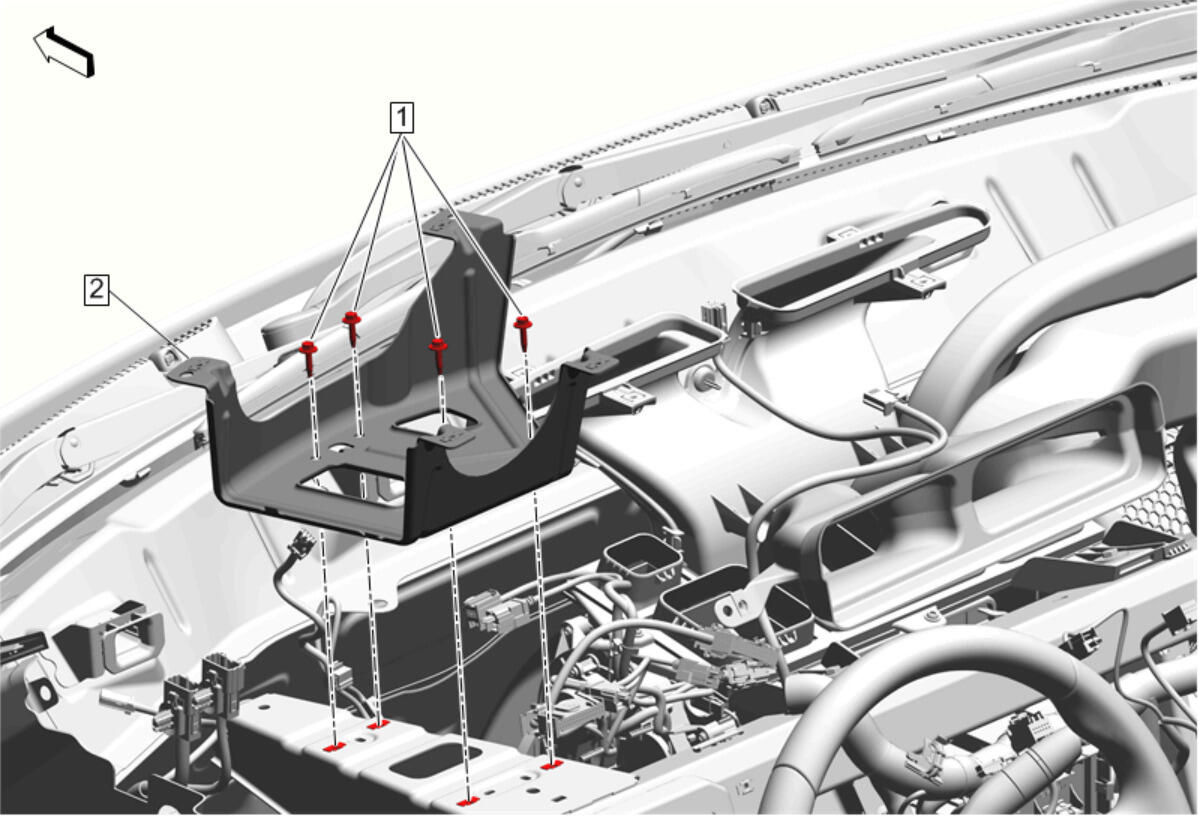

  4. GM4298128

    Instrument Panel Accessory Bracket Bolt (1) - Remove [ 4x ]

  5. Disconnect the electrical connectors.
  6. Instrument Panel Accessory Bracket (2) - Remove
