Removal Procedure

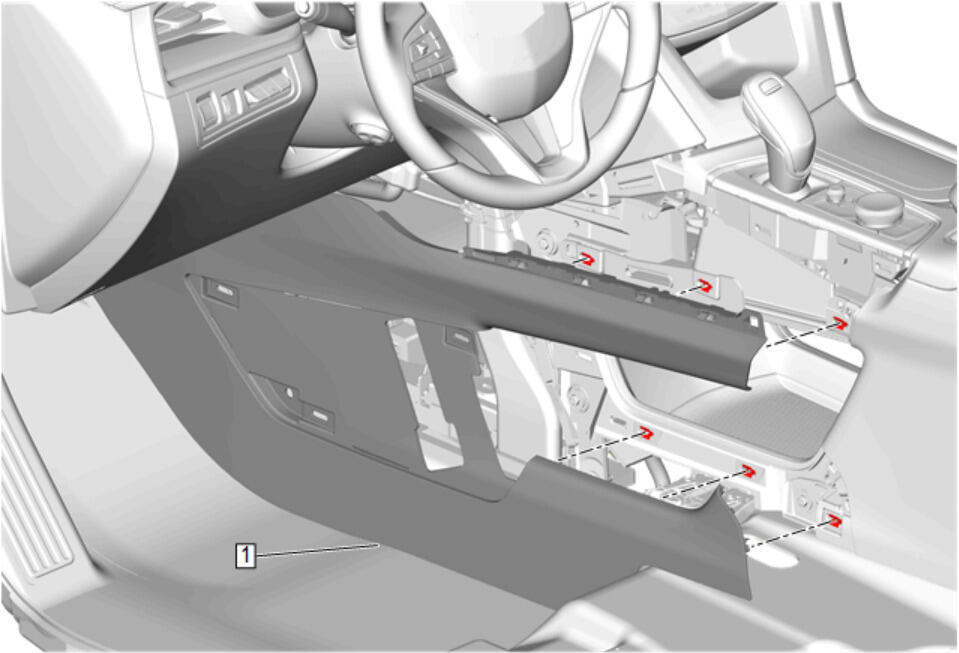

  1. GM5162610

    Front Floor Console Extension Panel - Left Side (1) - Remove - Front Floor Console Extension Panel Replacement - Left Side

  2. GM4279414

    Front Floor Console Extension Panel - Right Side (3) - Remove - Front Floor Console Extension Panel Replacement - Right Side

  3. GM4277296

    Instrument Panel Lower Center Trim Panel (2) - Remove - Instrument Panel Lower Center Trim Panel Replacement

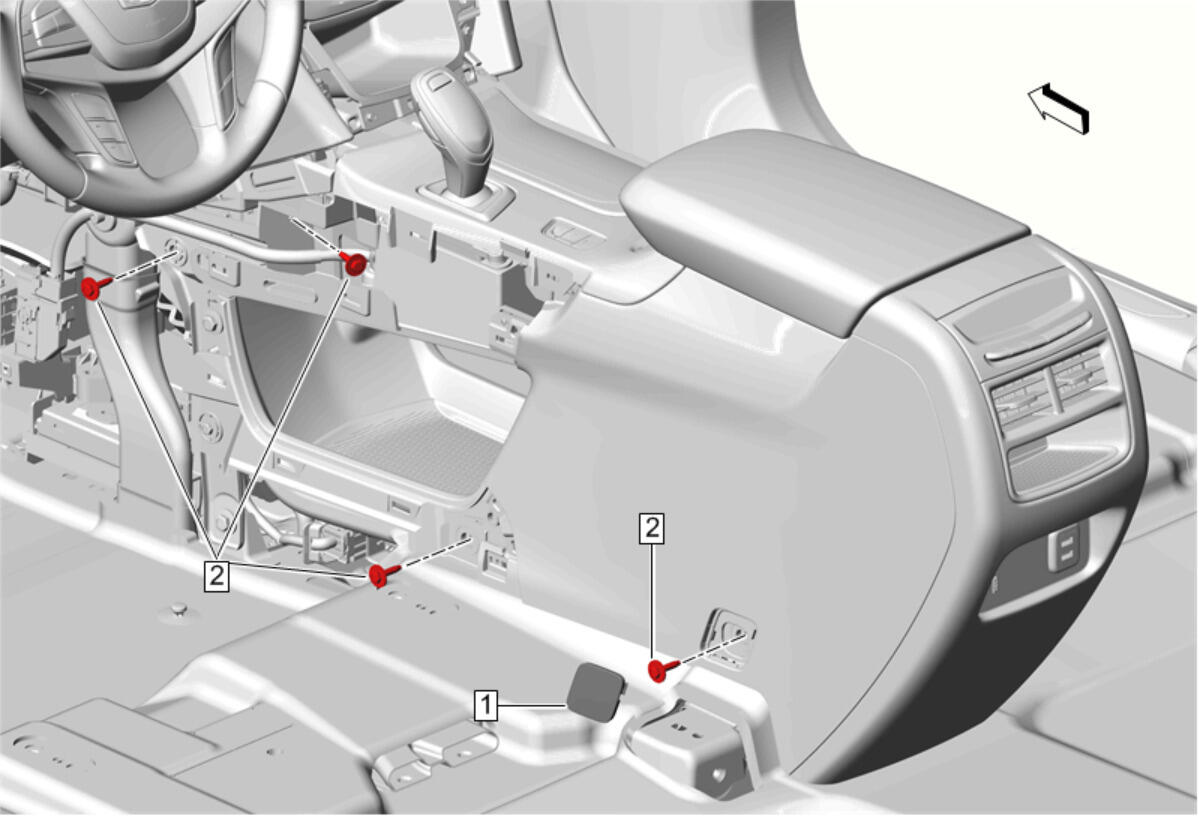

  4. GM4291286

    Use a suitable tool to release the front floor console bolt access hole cover (1) from the extension panel.

  5. Front Floor Console Bolt (2) - Remove [ 4x ]

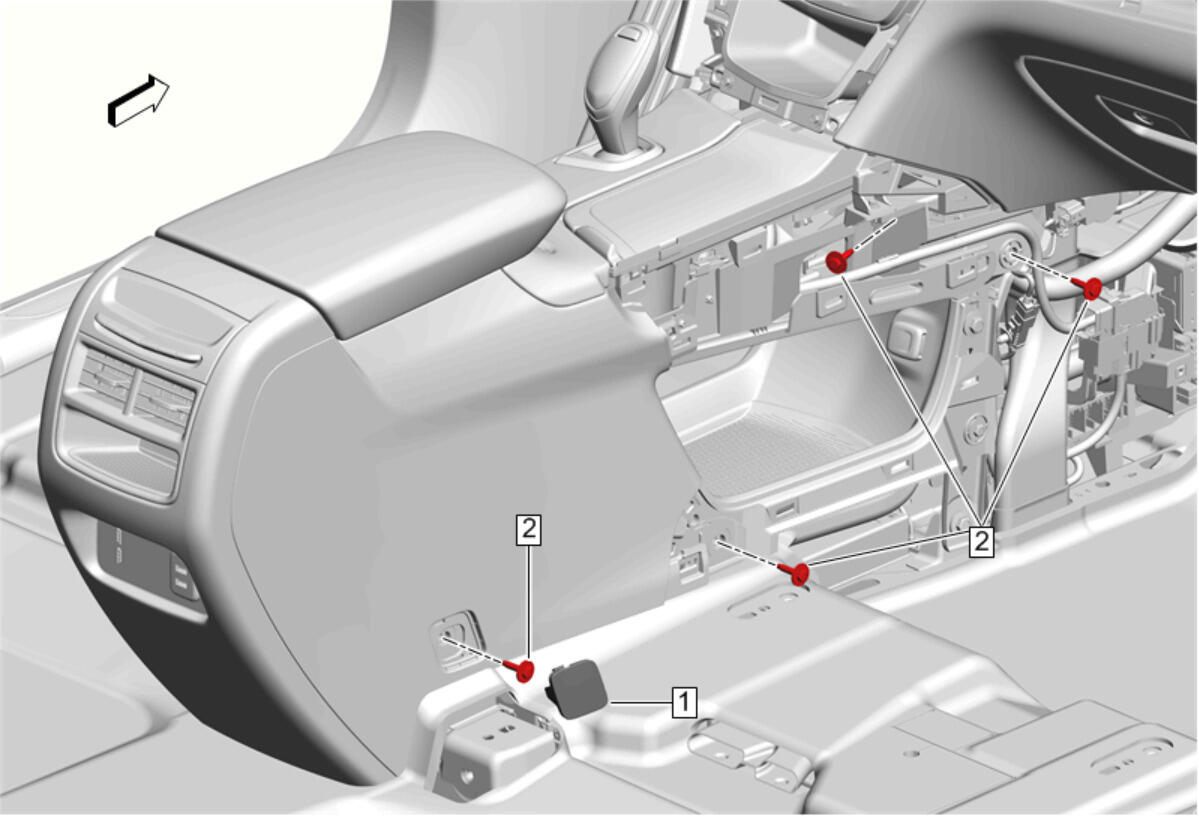

  6. GM4291287

    Use a suitable tool to release the front floor console bolt access hole cover (1) from the extension panel.

  7. Front Floor Console Bolt (2) - Remove [ 4x ]

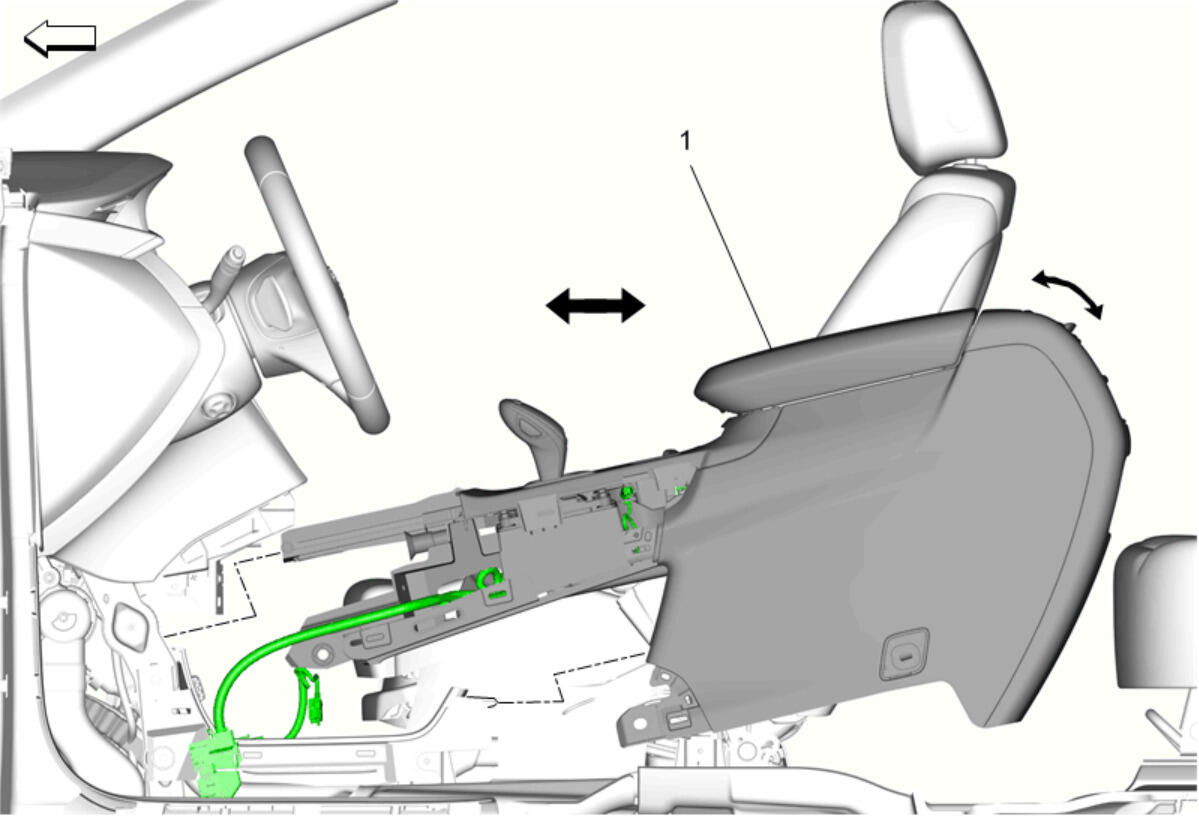

  8. GM4291288

    Disconnect the electrical connectors.

  9. Slide the front floor console (1) back to clear the pin of the stowage tray and console holder from the instrument panel.
  10. With the aid of an assistant, left and remove the front floor console (1) from the vehicle.
  11. Transfer components as necessary.
