Home >> Cadillac >> 2021 >> XT5 Sport >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel And Console Trim >> Repair Instructions >> Front Floor Console Rear Compartment Replacement (without CJ4) >> Removal Procedure

Removal Procedure

  1. Front Floor Console Rear Trim Panel - Remove - Front Floor Console Rear Trim Panel Replacement

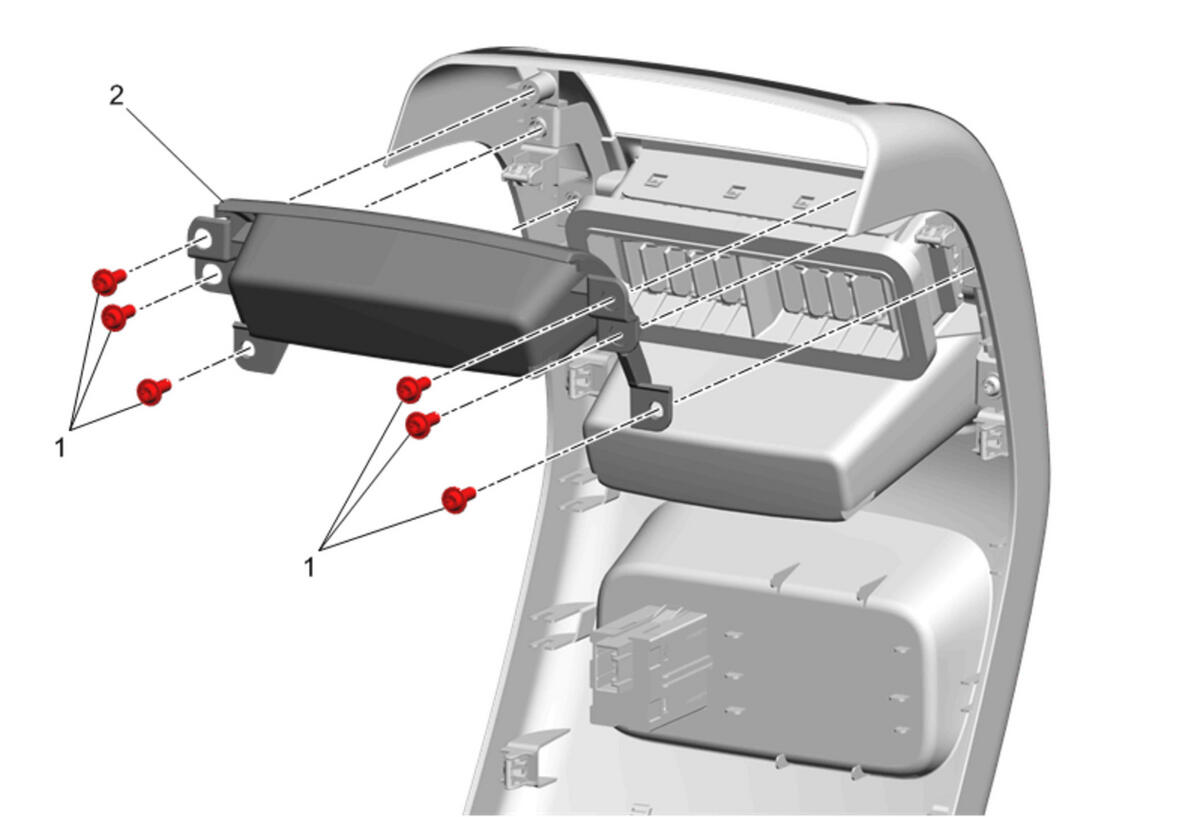

  2. GM4293277

    Front Floor Console Rear Compartment Bolt (1) - Remove [ 6x ]

  3. Front Floor Console Rear Compartment - Upper (2) - Remove

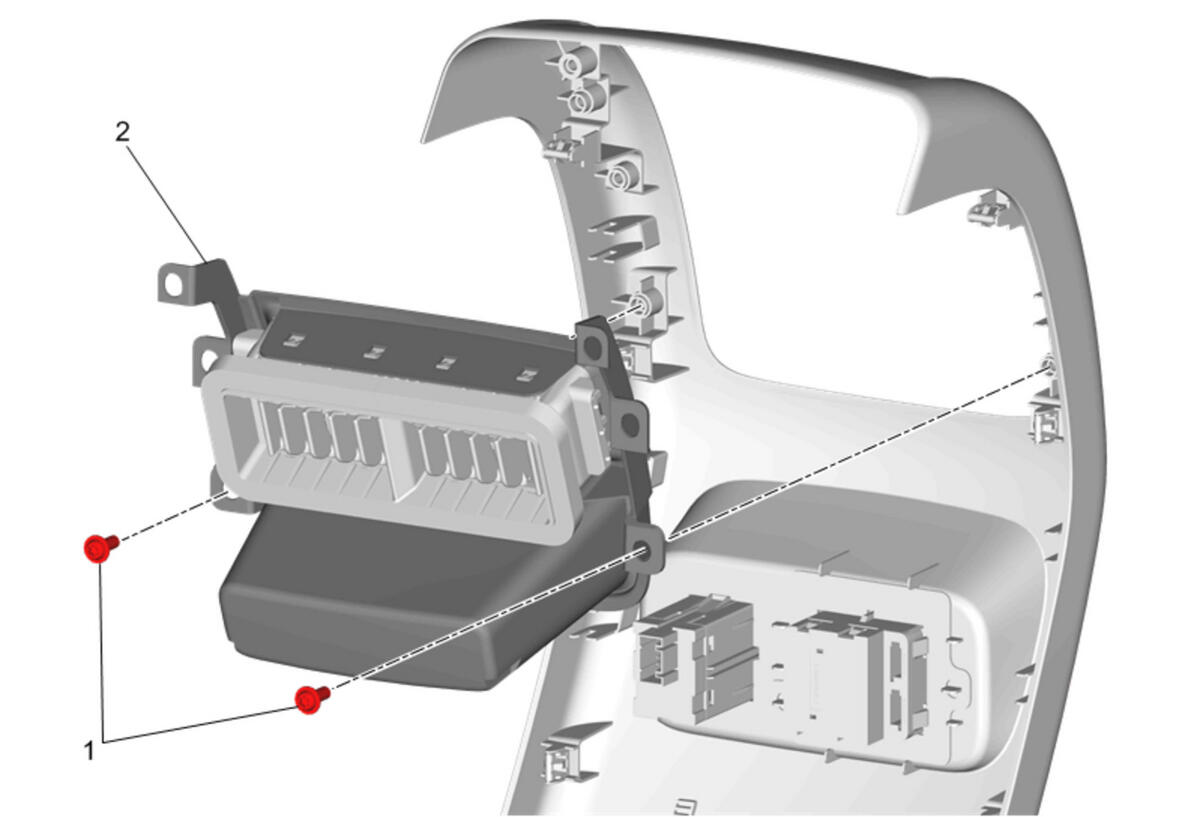

  4. GM4285885

    Front Floor Console Compartment Bolt (1) - Remove [ 2x ]

  5. Front Floor Console Rear Compartment - Lower (2) - Remove
  6. Transfer components as necessary.
