Removal Procedure

  1. GM4291288

    Front Floor Console (1) - Remove - Front Floor Console Replacement

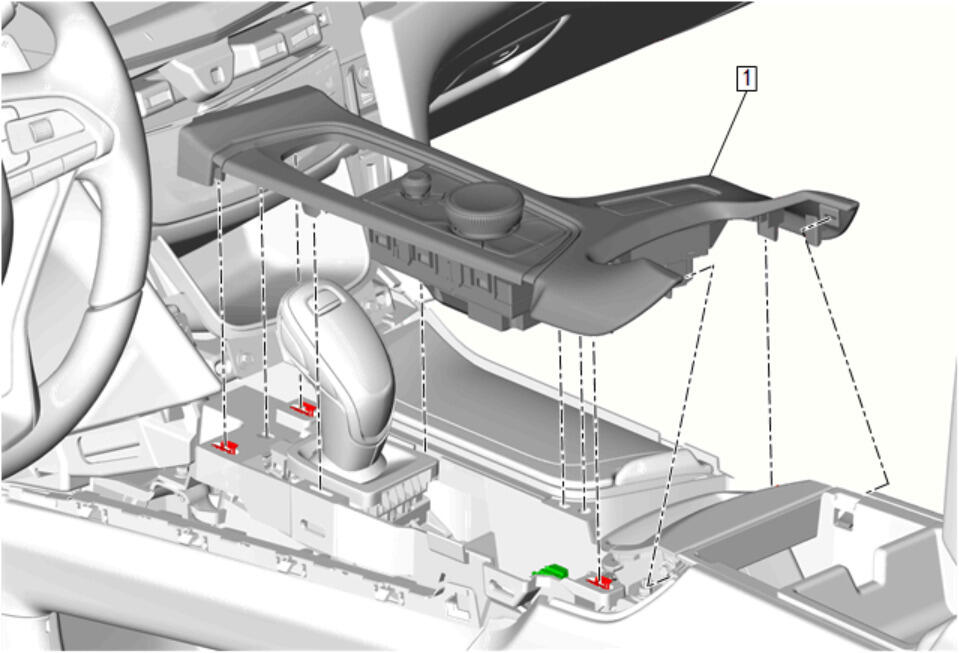

  2. GM5164866

    Front Floor Console Trim Plate (1) - Remove - Front Floor Console Trim Plate Replacement

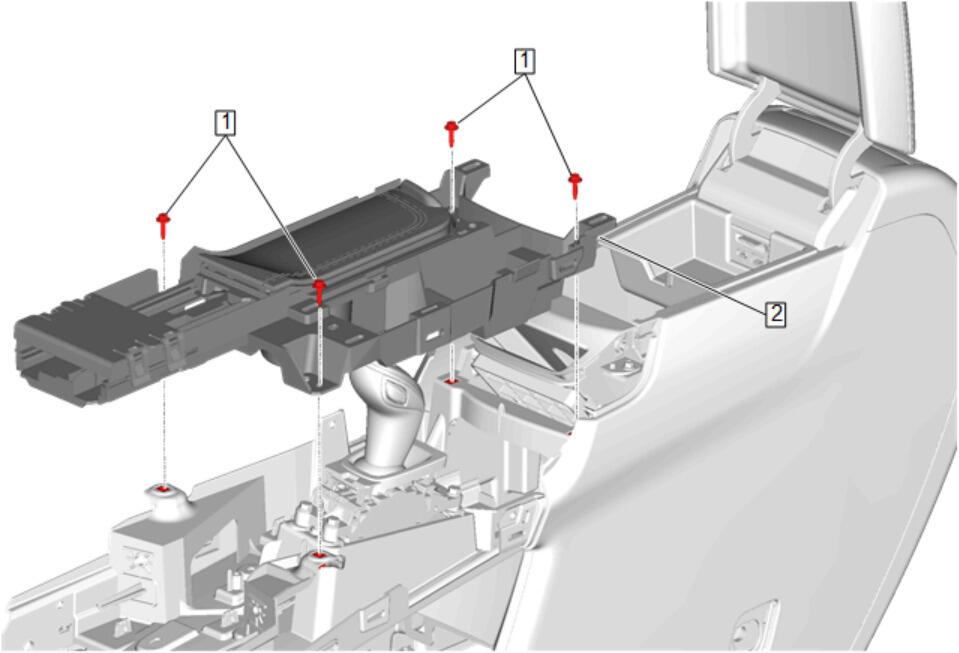

  3. GM5197814

    Front Floor Console Holder Bolt (1) - Remove

  4. Disconnect all electrical connectors.
  5. Front Floor Console Holder (2) - Remove
  6. Transfer components as necessary.
