Removal Procedure

  1. GM4277367

    Front Floor Console Side Trim Panel - Left Side (1) - Remove - Front Floor Console Side Trim Panel Replacement - Left Side

  2. GM5162599

    Front Floor Console Front Cover (1) - Remove - Front Floor Console Front Cover Replacement

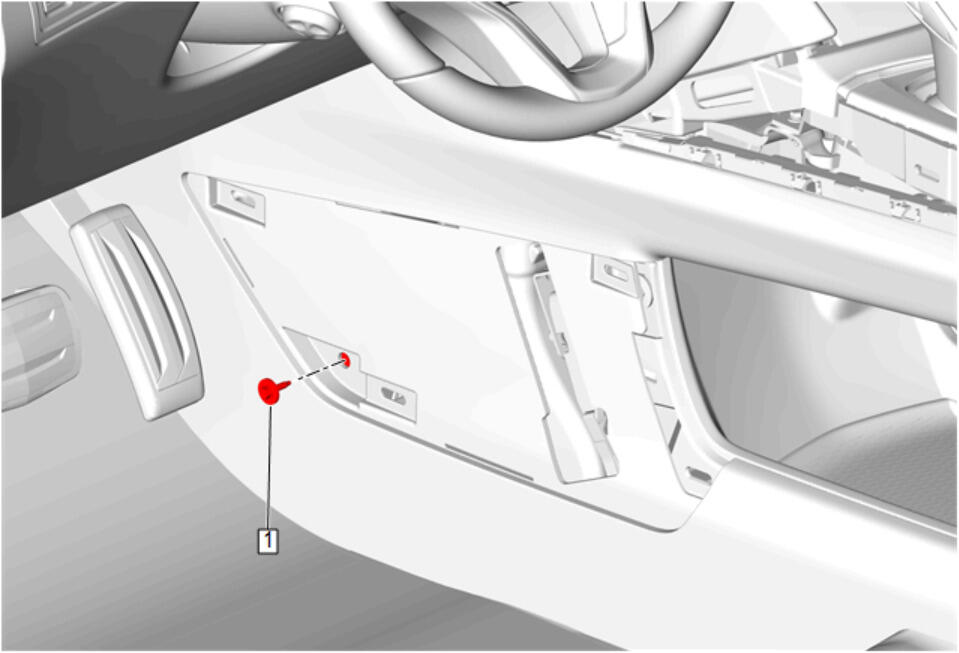

  3. GM5162607

    Front Floor Console Extension Bolt (1) - Remove

  4. GM5162610

    Move the front seat to access the retainers.

  5. Using a flat-bladed plastic trim tool, release the retaining clips.
  6. Disconnect electrical connections, if applicable.
  7. Front Floor Console Extension Panel - Left Side (1) - Remove
  8. Transfer components as necessary.
